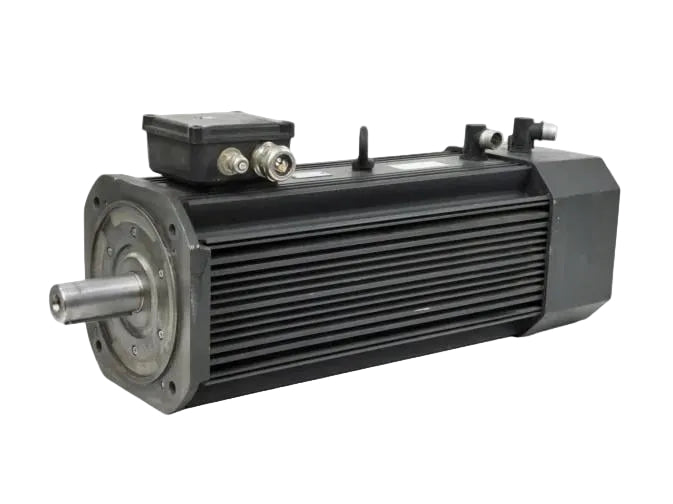

MDFKABS112-22 | Lenze 20.3kW 390V 3-Phase Asynchronous Servo Motor w/ Brake
- Regular price
- $5,339.00
- Sale price
- $5,339.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MDFKABS112-22
Description
The Lenze MDFKABS112-22 is a three-phase asynchronous servo motor designed for industrial motion control applications. Rated at 20.3 kW and operating at 390 VAC and 120 Hz, it delivers a nominal speed of 3520 RPM. The motor is equipped with an integrated 80 Nm holding brake for controlled stopping and positioning.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Servo Products |
| Part Number | MDFKABS112-22 |
| Subcategory | Servo Motor |
| Series | MDx Series |
| Motor Type | Asynchronous Servo Motor |
| Rated Power | 20.3 kW |
| Rated Voltage | 390 VAC |
| Input Phase | 3 Phase |
| Rated Current | 42.5 A |
| Rated Frequency | 120 Hz |
| Nominal Speed | 3520 RPM |
| Rated Torque | 75 Nm |
| Brake Torque | 80 Nm |
| Power Factor (cos φ) | 0.80 |
| Cooling Fan Voltage | 220–240 V |
| Country of Origin | Germany |
| Weight | 200.00 lbs |
Information About MDFKABS112-22
The MDFKABS112-22 belongs to the Lenze MDx series of asynchronous servo motors and is engineered for precise speed-controlled motion systems. It operates on a 3-phase 390 V supply with a rated current of 42.5 A and supports continuous duty performance in automation environments. The motor includes a brake and resolver configuration for accurate feedback and controlled deceleration. Designed for integration with Lenze servo inverters, it supports industrial machinery requiring regulated torque and speed control.
Key Features:
-
Asynchronous Servo Motor: Designed for controlled industrial motion applications.
-
20.3 kW Rated Power: Suitable for high-performance drive systems.
-
390 VAC 3-Phase Operation: Configured for industrial three-phase power supply.
-
3520 RPM Nominal Speed: Rated speed at 120 Hz operation.
-
80 Nm Holding Brake: Integrated brake for controlled stopping and load holding.
-
42.5 A Rated Current: Supports high-load industrial applications.
-
Resolver Feedback Configuration: Provides precise position and speed monitoring.
-
MDx Series Design: Compatible with Lenze servo inverter platforms.
The MDFKABS112-22 delivers the reliability and precision required for high-power industrial servo motor applications.
