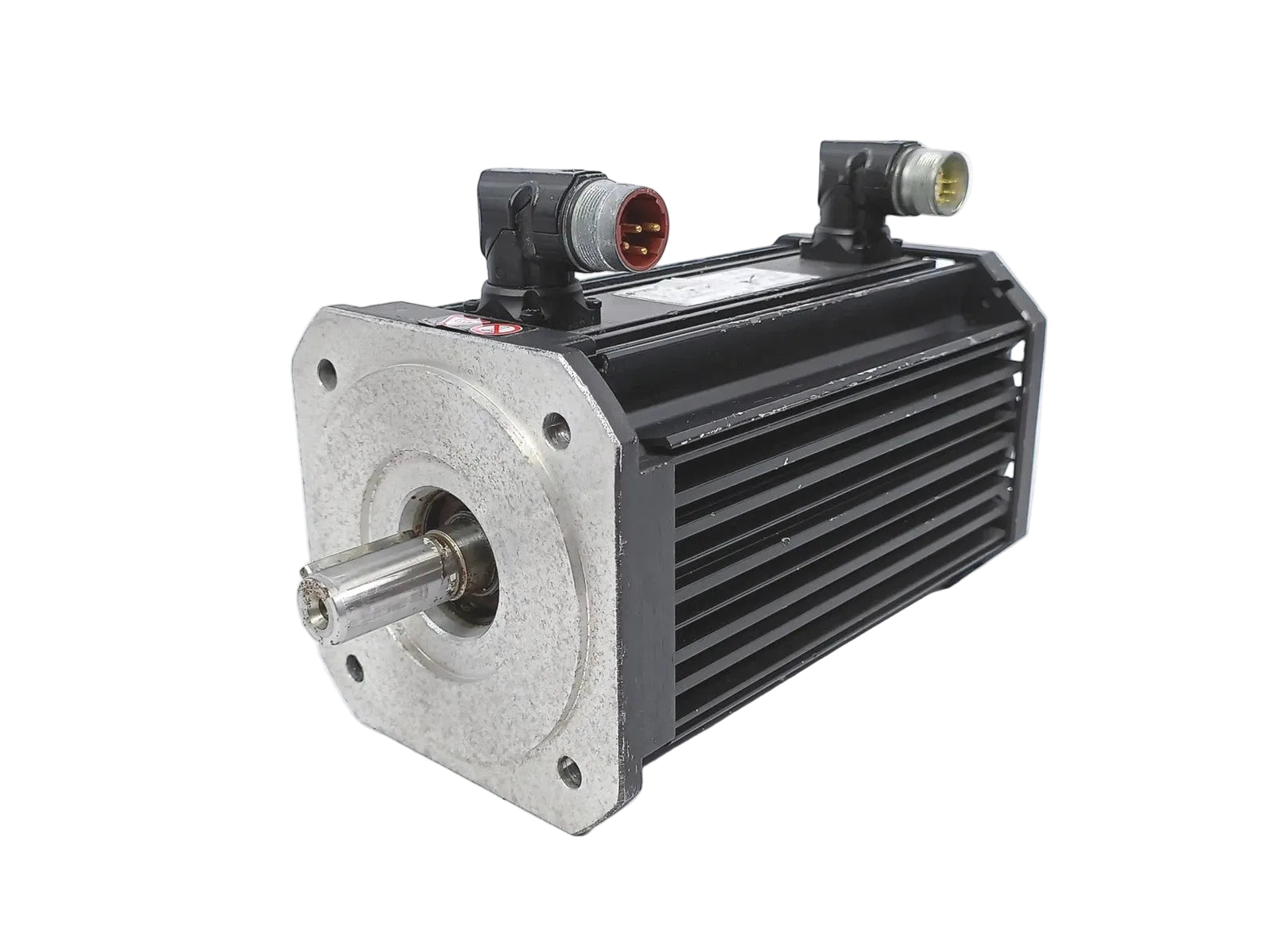

MDSKSRS071-13 | Lenze 3.2kW Servo Motor 5000RPM 10Nm
- Regular price
- $2,899.00
- Sale price
- $2,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MDSKSRS071-13
Description
The Lenze MDSKSRS071-13 is a synchronous servo motor designed for high-precision motion control in industrial automation systems. Rated at 3.2 kW with 325 V operation, it delivers 8.3 Nm of torque at 3700 RPM and supports speeds up to 5000 RPM. This three-phase motor provides stable performance and dynamic response for demanding positioning and speed control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motors |
| Part Number | MDSKSRS071-13 |
| Subcategory | Servo Motors |
| Motor Type | Synchronous Servo Motor |
| Rated Power | 3.2 kW |
| Rated Voltage | 325 V |
| Rated Current | 7 A |
| Maximum Current | 32 A |
| Rated Speed | 3700 RPM |
| Maximum Speed | 5000 RPM |
| Rated Torque | 8.3 Nm |
| Maximum Torque | 10 Nm |
| Frequency | Up to 150 Hz |
| Shaft Diameter | 19 mm |
| Rotor Inertia | 8.00E-4 kgm² |
| Ambient Temperature | +25°C to +40°C |
| Phase | Three-Phase |
| Weight | Approx. 14 kg |
Information About MDSKSRS071-13
The MDSKSRS071-13 is part of Lenze’s servo motor portfolio engineered for integration with compatible servo drives and motion controllers. It features a rated current of 7 A and supports peak current up to 32 A for short-term overload conditions. Designed for operation up to 150 Hz, the motor offers rapid acceleration and precise torque regulation. With a 19 mm shaft diameter, rotor inertia of 8.00E-4 kgm², and defined ambient operating range from +25°C to +40°C, it is suited for controlled industrial environments requiring consistent and repeatable motion.
Key Features:
- 3.2 kW Rated Power: Designed for medium-duty servo-driven applications.
- 8.3 Nm Rated Torque: Provides stable torque output for precise positioning.
- Up to 5000 RPM Speed: Supports high-speed dynamic motion control.
- 325 V Rated Voltage: Compatible with industrial servo drive systems.
- 7 A Rated / 32 A Max Current: Allows short-term overload capability for peak demands.
- 150 Hz Operation: Enables extended speed range performance.
- 19 mm Shaft Diameter: Ensures secure mechanical coupling.
- IP-Rated Industrial Construction: Designed for controlled automation environments.
The MDSKSRS071-13 delivers the reliability and precision required for synchronous servo motor applications in advanced industrial motion control systems.
