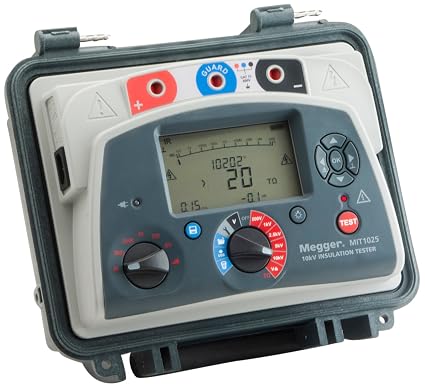

Megger MIT1025-US 10kV 20 TΩ Insulation Resistance Tester
- Regular price
- $9,779.00
- Sale price
- $9,779.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MIT1025-US
Description
The Megger MIT1025-US is a 10 kV insulation resistance tester designed for diagnostic testing and condition assessment of high-voltage electrical equipment. It measures insulation resistance up to 20 TΩ and supports IR, PI, DAR, DD, step voltage, and ramp testing for applications including power cables, motors, generators, transformers, and bus systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Megger |
| Category | Test Equipment |
| Part Number | MIT1025-US |
| Subcategory | Insulation Resistance Testers |
| Product Type | High-Voltage Insulation Resistance Tester |
| Maximum Test Voltage | 10 kV |
| Insulation Resistance Range | Up to 20 TΩ |
| Test Voltage Settings | 250 V, 500 V, 1 kV, 2.5 kV, 5 kV, 10 kV |
| Variable Test Voltage | 10 V Steps from 50 V to 1 kV; 25 V Steps Above 1 kV |
| Current Measurement Range | 0.01 nA to 6 mA |
| Diagnostic Tests | IR, PI, DAR, DD, SV, Ramp |
| Voltmeter Range | 30–660 V |
| Accuracy | ±5% up to 1 TΩ at 5 kV and 2 TΩ at 10 kV |
| Safety Rating | CAT IV 600 V |
| Line Power Input | 85–265 V, 50/60 Hz |
| Power Consumption | 60 VA |
| Power Supply | Rechargeable Battery / Line Power |
| Full Battery Charge Time | Approx. 2.5 Hours |
| Display | Digital/Analog |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Weight | 15 lbs |
Information About MIT1025-US
The MIT1025-US is a Megger 10 kV insulation resistance tester built for high-voltage electrical maintenance, commissioning, and diagnostic testing. Its portable dual-case construction combines fire-retardant protection with a rugged enclosure, while flexible silicone test leads support safe measurement according to IEC 61010-31:2008 requirements. The instrument provides selectable test voltages up to 10 kV, insulation resistance measurements up to 20 TΩ, a dedicated 30–660 V voltmeter function, and diagnostic modes including PI, DAR, DD, SV, and ramp testing. It can operate from its rechargeable battery or line power and includes advanced memory with time/date stamping for recording and trending test results.
Key Features:
- 10 kV Test Capability: Provides insulation test voltages up to 10 kV for high-voltage electrical equipment.
- 20 TΩ Measurement Range: Measures high insulation resistance values for installation testing and long-term condition trending.
- Multiple Diagnostic Tests: Supports timed IR, PI, DAR, DD, step voltage, and ramp testing.
- Dedicated Voltmeter: Measures 30–660 V and provides frequency measurement for checking induced or present voltage.
- CAT IV 600 V Safety Rating: All terminals are rated CAT IV 600 V for use in demanding electrical environments.
- High Measurement Accuracy: Provides ±5% accuracy up to 1 TΩ at 5 kV and 2 TΩ at 10 kV.
- Rapid Battery Charging: Full battery charging takes approximately 2.5 hours, with a 30-minute charge providing approximately one hour of testing.
- Advanced Test Memory: Stores measurement information with time and date stamps for test documentation and trending.
The MIT1025-US delivers the reliability and precision required for insulation diagnostics and condition assessment of high-voltage electrical equipment.
