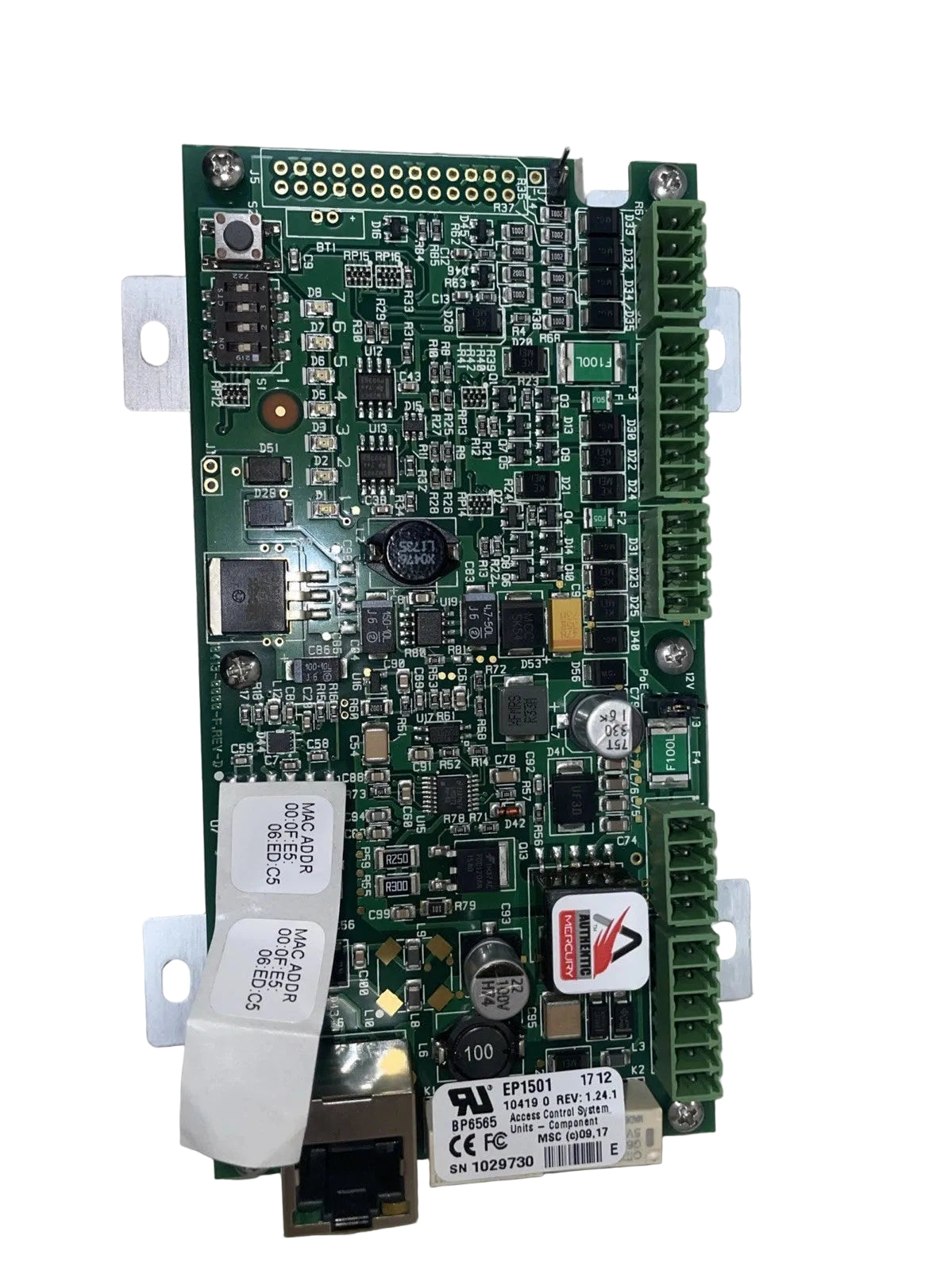

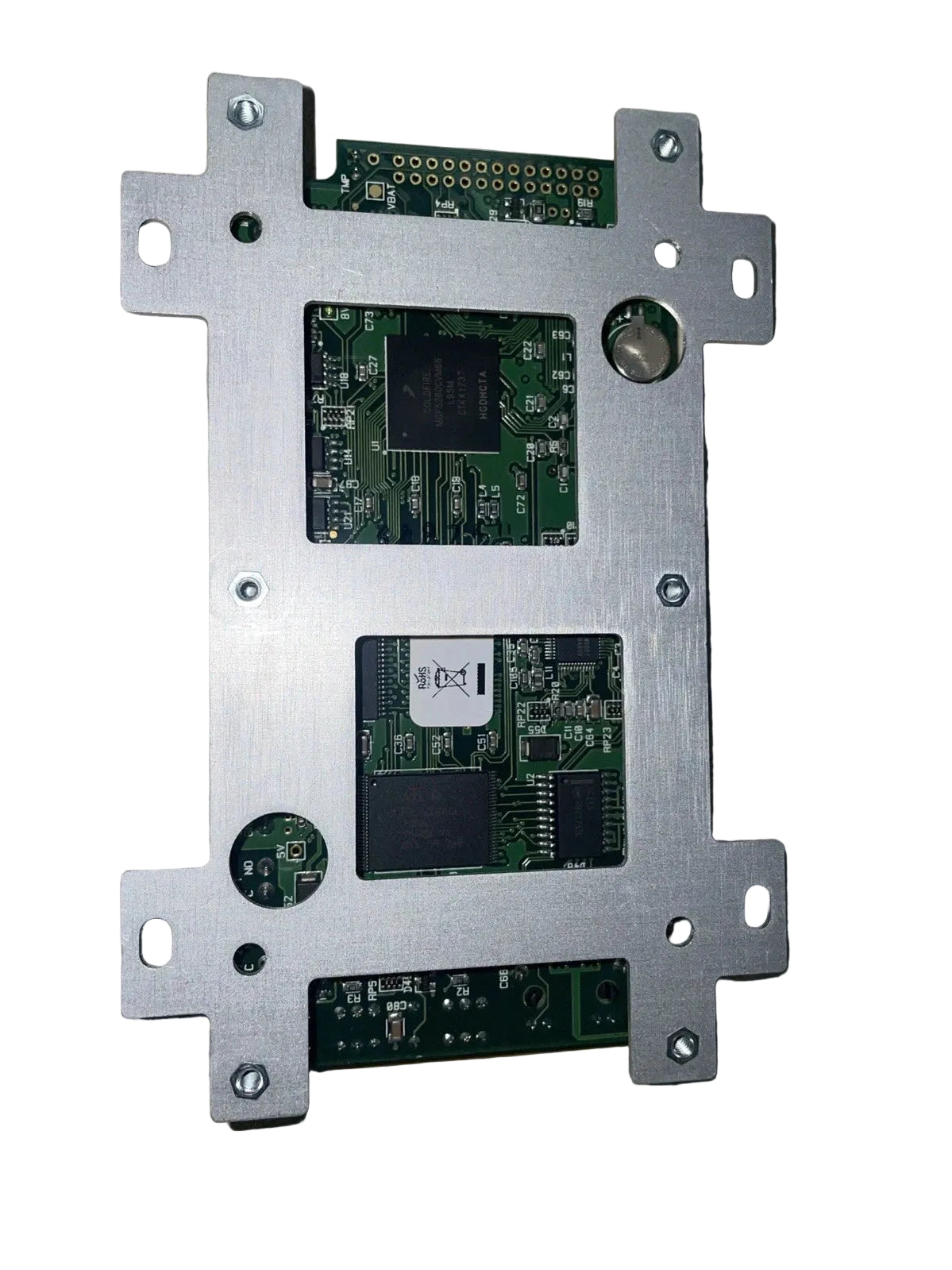

Mercury EP1501 Single Door Access Control Platform with PoE and Dual Reader Support
- Regular price
- $487.00
- Sale price
- $487.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EP1501
Description
The Mercury EP1501 Access Control Platform is a network-enabled controller designed to interface and manage a single door opening within an access control system. It supports multiple reader communication options and integrates with centralized security management platforms through Ethernet connectivity. Engineered for reliable building security applications, the EP1501 provides secure reader communication and door control functionality.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mercury |
| Category | Security & Access Control |
| Part Number | EP1501 |
| Subcategory | Access Control Controllers |
| Power Source | PoE (12 VDC ±10%) or Local 12 VDC Power Supply |
| Reader Interfaces | Two TTL Reader Ports or One 2-Wire RS-485 Reader Port |
| Reader Support | Up to 2 Readers |
| RS-485 Communication | 9600 bps, asynchronous, half-duplex |
| Maximum RS-485 Cable Length | 2000 ft (609.9 m) |
| LED Output | TTL Compatible, High >3 V, Low <0.5 V, 5 mA Source/Sink |
| Buzzer Output | Open Collector, 5 VDC Open Circuit Max, 10 mA Sink Max |
| Ethernet Requirement | CAT-5 Minimum |
| Alarm Input Wiring | 1 Twisted Pair per Input, 30 Ω Max Loop Resistance |
| Operating Temperature | 0 to 70 °C |
| Storage Temperature | −55 to +85 °C |
| Operating Humidity | 10–95% RH Non-Condensing |
| Dimensions (Without Bracket) | 5.5 × 2.75 × 0.96 in |
| Dimensions (With Bracket) | 5.5 × 3.63 × 1.33 in |
| Weight | 0.29 lb (4.7 oz with bracket) |
Information About EP1501
The EP1501 is an access control interface module designed to manage one door and associated credential readers within a security system. It supports two TTL reader ports or a single RS-485 reader interface capable of connecting up to two readers for flexible deployment. The platform communicates over Ethernet using Power over Ethernet (PoE) or a local 12 VDC power source, enabling easy integration into modern networked security infrastructures. Designed for professional access control installations, it supports alarm inputs, reader communication, and device signaling for secure door access management.
Key Features:
- Single Door Access Control: Designed to manage and monitor one controlled door opening within an access control system.
- Dual Reader Support: Provides two TTL reader ports or a single RS-485 interface capable of supporting two readers.
- Power over Ethernet Capability: Supports PoE with optional local 12 VDC power supply for flexible installation.
- RS-485 Communication Interface: Enables long-distance reader communication up to 2000 ft.
- Integrated Reader Signaling: Provides LED and buzzer outputs for credential feedback and user notification.
- Alarm Input Support: Allows integration with door contacts, sensors, or alarm monitoring circuits.
- Compact Controller Design: Small footprint suitable for mounting within control enclosures or equipment cabinets.
- Wide Operating Environment Range: Designed to operate reliably in typical commercial security installations.
The EP1501 delivers the reliability and precision required for secure door access control and credential reader integration.
