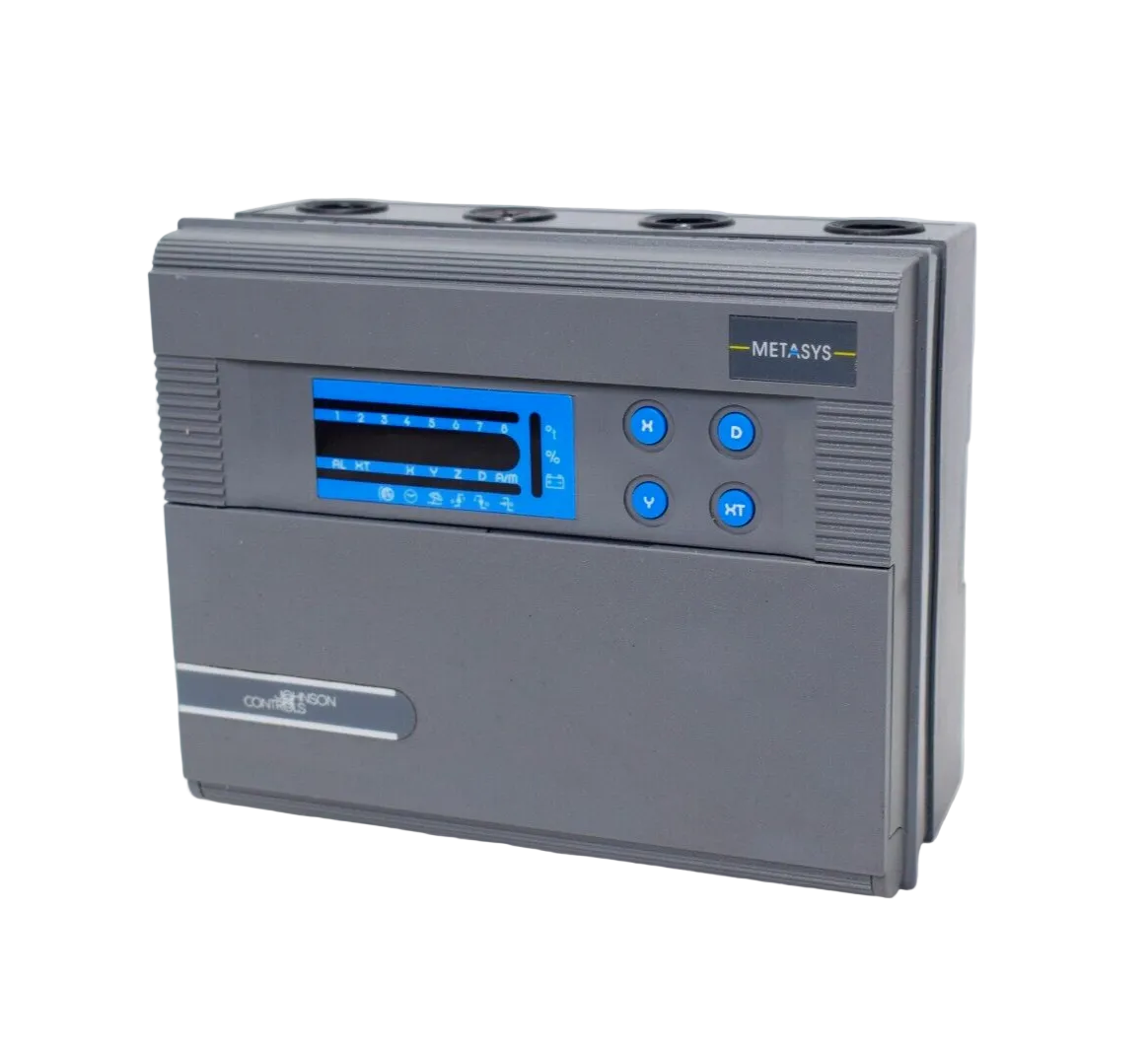

Metasys DX-9121-8454 LONWORKS Digital Controller with Display
- Regular price
- $1,235.00
- Sale price
- $1,235.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DX-9121-8454
Description
The Metasys DX-9121-8454 is a Johnson Controls LONWORKS digital controller designed for building automation and HVAC control applications. It operates on 24 VAC and provides 8 analog inputs, 8 digital inputs, 4 analog outputs, and 6 triac digital outputs, with a built-in local display panel.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Johnson Controls / Metasys |
| Category | HVAC & Building Automation |
| Part Number | DX-9121-8454 |
| Subcategory | LONWORKS Digital Controllers |
| Series | Metasys DX-9121 |
| Device Type | LONWORKS Digital Controller |
| Communication Protocol | LONWORKS |
| Network Interface | FTT-10A |
| Analog Inputs | 8 |
| Analog Input Signals | 0β10 VDC, 0β20 mA, RTD |
| Digital Inputs | 8 dry-contact inputs |
| Analog Outputs | 4 |
| Analog Output Signals | 0β10 VDC, 0/4β20 mA |
| Digital Outputs | 6 triac outputs |
| Digital Output Rating | 24 VAC, 0.5 A |
| Power Supply | 24 VAC, 50/60 Hz |
| Nominal Power Consumption | 10 VA |
| Display | Built-in local display panel |
| Extension Modules | XT/XP compatible |
| Operating Temperature | 0β50Β°C / 32β120Β°F |
| Relative Humidity | 10β90%, non-condensing |
| Storage Temperature | -20β70Β°C / 0β160Β°F |
| Weight | 2.00 lb |
Information About DX-9121-8454
The DX-9121-8454 belongs to the Metasys DX-9121 series of LONWORKS digital controllers and uses an FTT-10A LONWORKS interface. Its analog inputs support 0β10 VDC, 0β20 mA, and RTD sensors, while the analog outputs support 0β10 VDC or 0/4β20 mA signals. The controller also provides eight dry-contact inputs and six 24 VAC triac outputs rated at up to 0.5 A. Johnson Controls identifies the DX-9121 series as a legacy Metasys controller family; its listed global end-of-support date was July 2026.
Key Features:
- LONWORKS Digital Controller: Provides programmable control for building automation and HVAC systems.
- Eight Analog Inputs: Accepts 0β10 VDC, 0β20 mA, and compatible RTD sensor signals.
- Eight Digital Inputs: Provides dry-contact inputs for monitoring connected devices.
- Four Analog Outputs: Supports 0β10 VDC and 0/4β20 mA control signals.
- Six Triac Outputs: Provides 24 VAC digital outputs rated up to 0.5 A.
- FTT-10A Interface: Provides LONWORKS communication for compatible building automation networks.
- Local Display: Includes an integrated display panel for local controller operation and monitoring.
- Extension Support: Supports compatible XT/XP extension modules for additional control functionality.
The DX-9121-8454 provides configurable I/O and LONWORKS networking for compatible Metasys HVAC and building automation installations.
