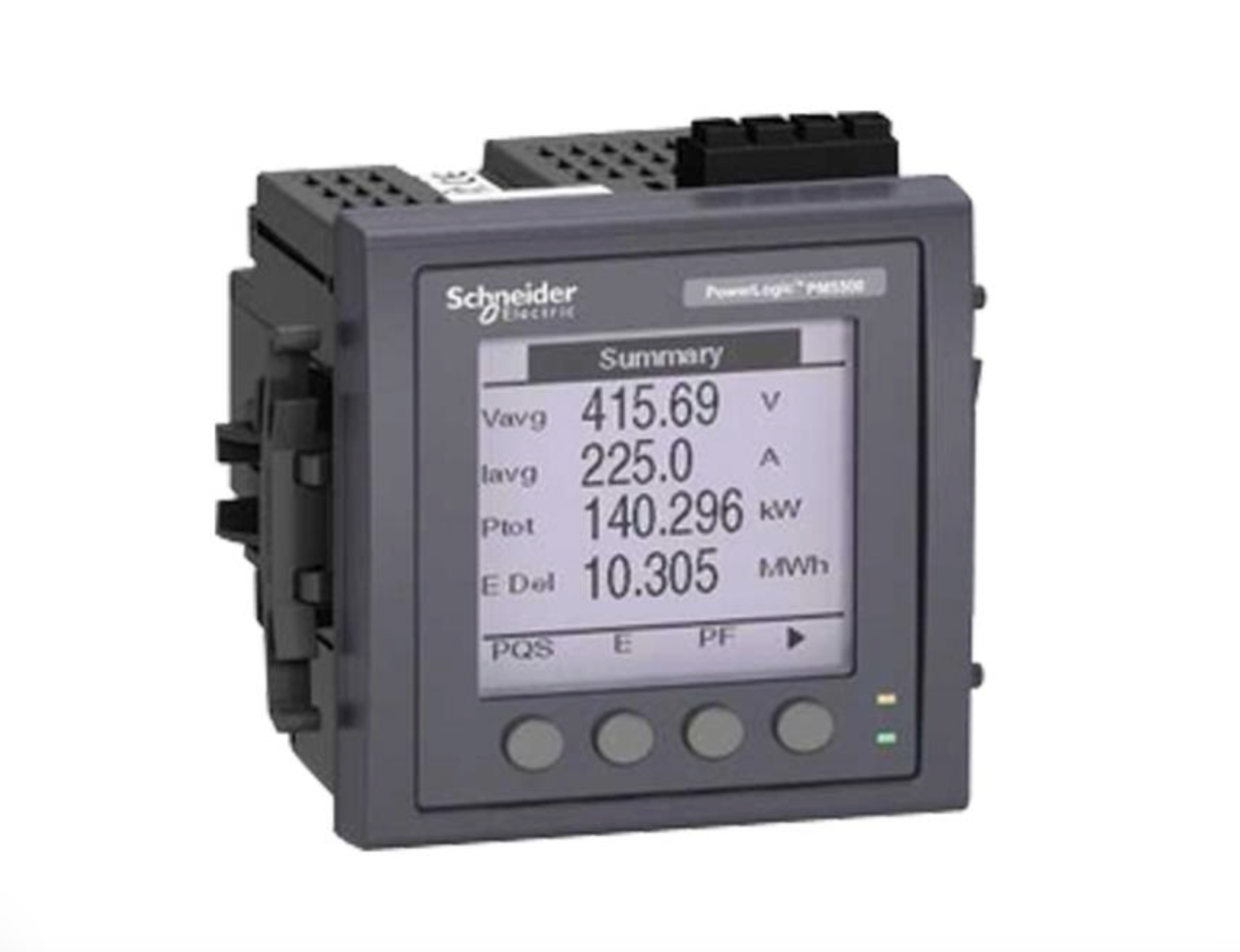

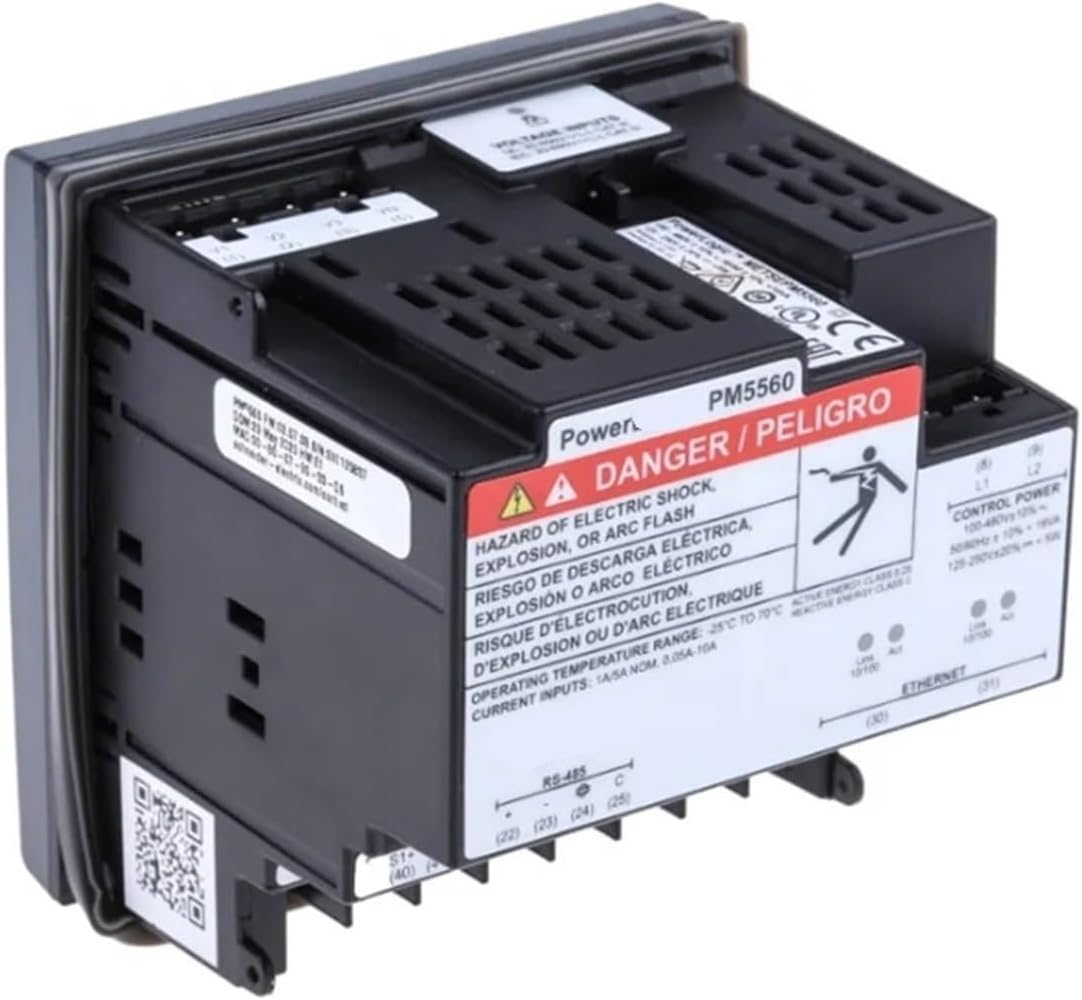

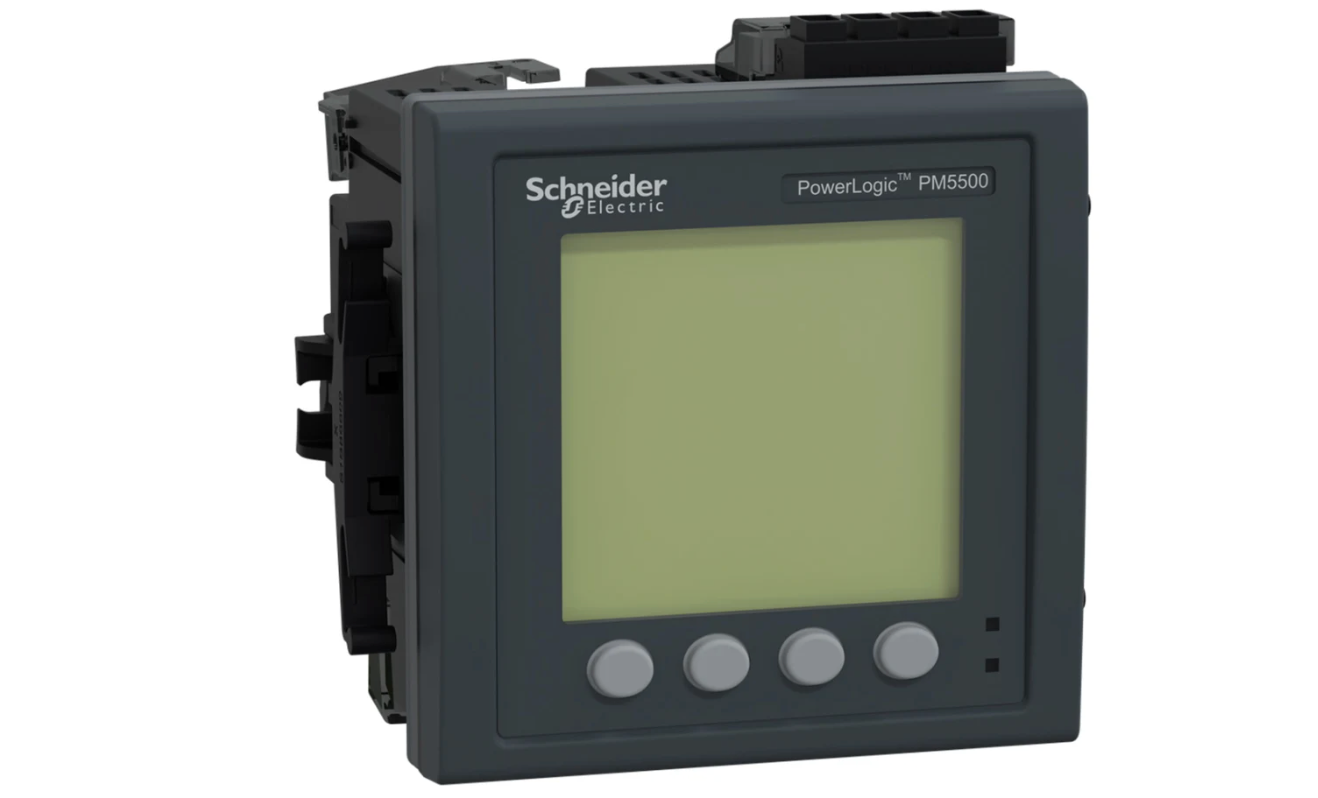

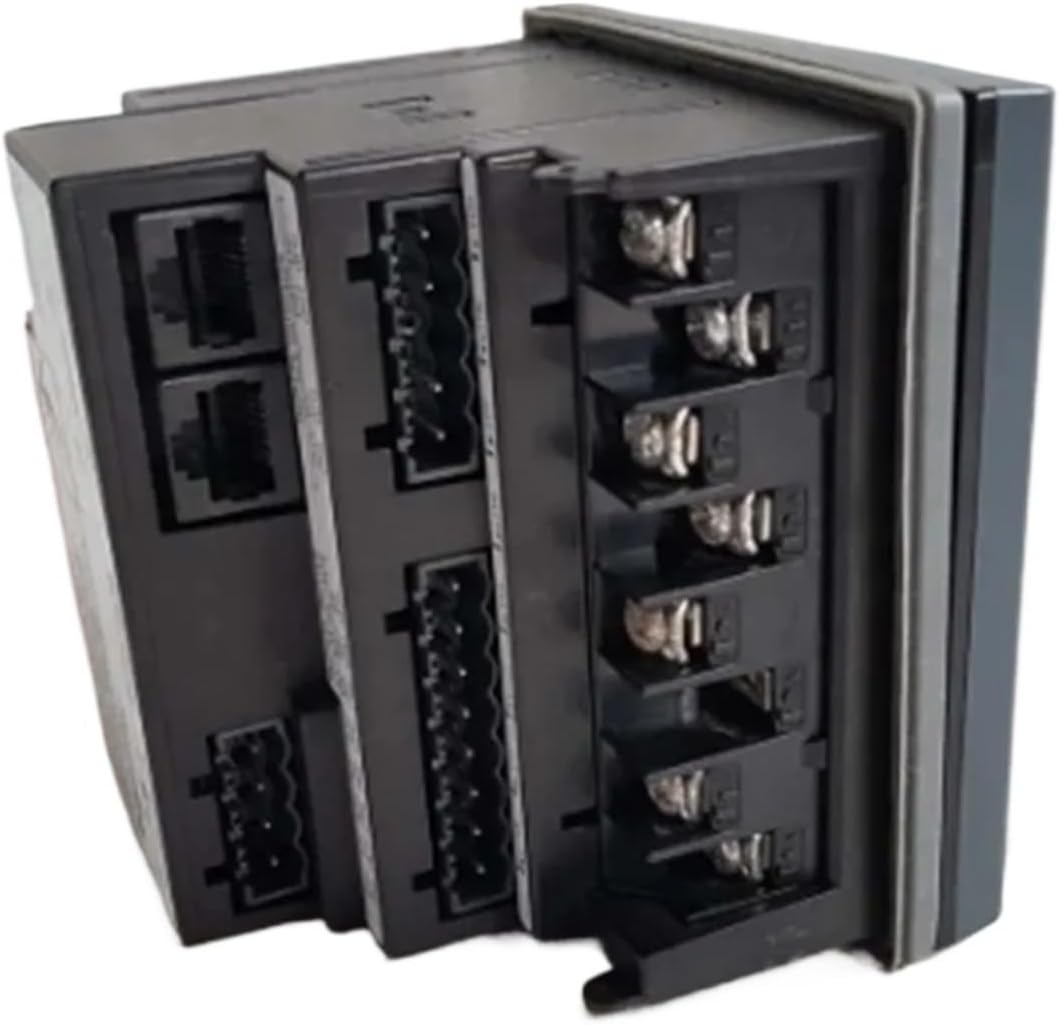

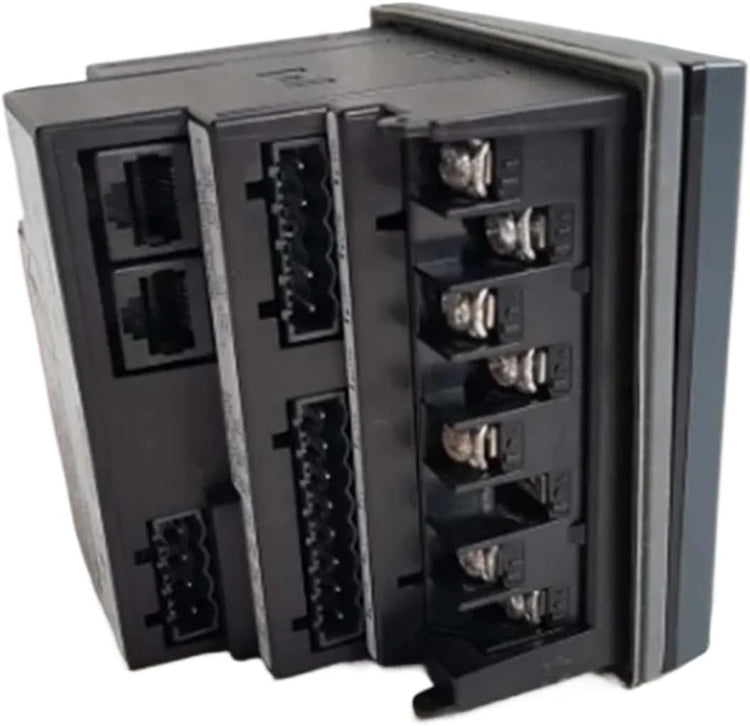

METSEPM5560 | Square D PowerLogic PM5560 Class 0.2S Power and Energy Meter
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: METSEPM5560
Description
The Square D METSEPM5560 is an intermediate power and energy meter designed for high-accuracy electrical monitoring in commercial and industrial systems. This Square D METSEPM5560 power meter delivers Class 0.2S energy accuracy, advanced power quality analysis up to the 63rd harmonic, and Ethernet-based communications for detailed energy management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Electrical Distribution |
| Part Number | METSEPM5560 |
| Subcategory | Power Meter Panels |
| Series | PowerLogic PM5000 |
| Meter Type | Intermediate Power and Energy Meter |
| Accuracy Class | Class 0.2S (IEC 62053-22) |
| Supply Voltage | 100–480 VAC / 125–250 VDC |
| Current Input | 1 A or 5 A |
| Frequency | 50/60 Hz |
| Harmonic Measurement | Up to 63rd Harmonic |
| Display Type | Backlit LCD, 128 × 128 Resolution |
| Digital Inputs / Outputs | 4 DI / 2 DO |
| Communication Interfaces | RS485, Dual Ethernet (Modbus TCP/IP, BACnet IP) |
| Memory Capacity | 1.1 MB |
| Mounting Type | Panel Mount (Flush Mounted) |
| Ingress Protection | IP52 (Front), IP30 (Body) |
| Weight | 0.40 kg |
Information About METSEPM5560
The METSEPM5560 is part of the Square D PowerLogic PM5000 series, engineered for advanced metering, WAGES monitoring, and multi-tariff energy analysis. It features a flush-mounted, panel-mount design with a backlit LCD display and high-resolution measurement capabilities. The meter supports single-phase and three-phase systems with wide voltage and current measurement ranges, making it compatible with diverse electrical infrastructures. Integrated digital inputs, digital outputs, onboard memory, and multi-protocol communications enable seamless integration into building management and power monitoring networks.
Key Features:
- PM5000 Series Architecture: Designed for high-end power monitoring and energy management applications.
- Class 0.2S Accuracy: Provides precise active energy measurement in accordance with IEC 62053-22.
- Advanced Harmonic Analysis: Measures power quality parameters up to the 63rd harmonic.
- Dual Ethernet Communication: Supports Modbus TCP/IP and BACnet IP for networked monitoring systems.
- High-Resolution LCD Display: 128 x 128 backlit screen enables clear visualization of electrical data.
- Digital I/O Capability: Includes 4 digital inputs and 2 digital outputs for WAGES and control functions.
- Integrated Data Logging: 1.1 MB onboard memory supports interval data recording and alarms.
The METSEPM5560 delivers the reliability and precision required for advanced power monitoring, energy analysis, and cost management applications.
