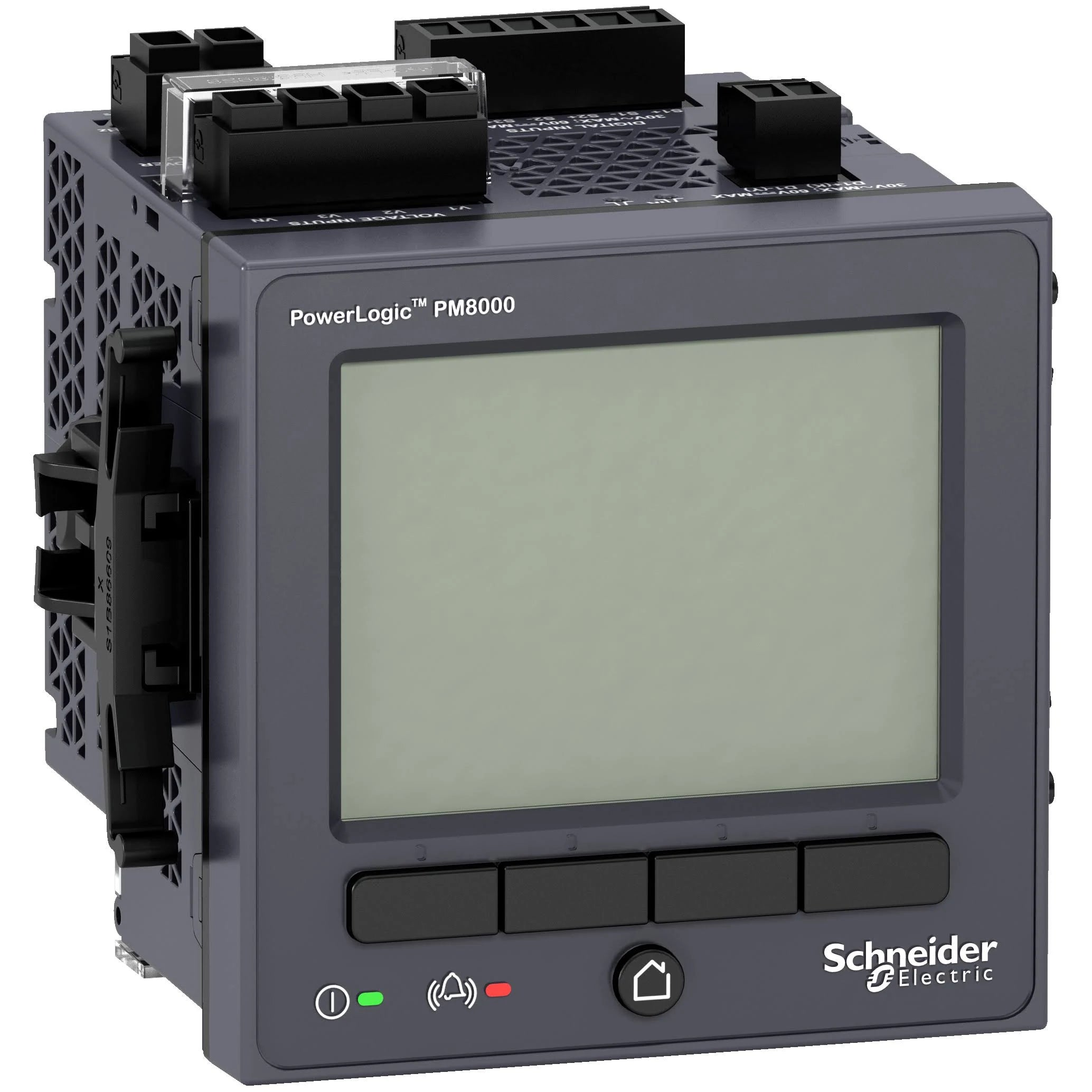

METSEPM8240 | Schneider Electric | Power quality meter
- Regular price
- $1,749.00
- Sale price
- $1,749.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: METSEPM8240
Description
The PowerLogic PM8000 series meters represent a comprehensive solution for power quality monitoring and management. Designed to ensure the reliability and efficiency of power-critical facilities, these compact and cost-effective multifunction power meters offer insights into complex power quality conditions, facilitating prompt action to address any issues.
Equipped with a versatile and modular ION technology architecture, the PowerLogic PM8000 series meters can be tailored to suit various applications through a simple, building block approach. They feature patented Disturbance Direction Detection, providing revenue-grade accuracy and supporting multiple communication ports, onboard power quality analysis, and a color graphical display.
Technical Specifications
Specifications
|
Part # |
METSEPM8240 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
SQUARE D |
|
Category |
Circuit Breaker |
|
Subcategory |
Panel Mount Circuit Breaker |
|
Analogue Input Number |
110...415 V DC +/- 10% |
|
Contacts Type And Composition |
1 A |
|
Control Type |
1P + N |
|
Display Type |
colour TFT LCD |
|
Measurement Accuracy |
active energy +/- 0.2% |
|
Mounting Diameter |
3 digital 30 V AC |
|
Product Or Component Type |
power meter |
|
Web Server |
512 MB |
|
[Uc] Control Circuit Voltage |
IPv6 (internet protocol) |
|
Device Short Name |
PM8240 |
|
Mounting Support |
framework |
|
Range |
PowerLogic |
|
Range Name |
PowerLogic PM8000 series |
|
Analogue Input Type |
current (impedance 0.3 mOhm) |
|
Analogue Output Number |
colour TFT LCD |
|
Communication Gateway |
320 x 240 pixels QVGA |
|
Communication Network Type |
IPv6 (internet protocol) |
|
Display Resolution |
320 x 240 pixels QVGA |
|
Memory Capacity |
512 MB |
|
Number Of Inputs |
3 digital 30 V AC |
|
Output Voltage |
current (impedance 0.3 mOhm) |
|
Output Voltage |
voltage (impedance 5 MOhm) |
|
Product Name |
PowerLogic PM8000 |
|
Time Delay |
active energy +/- 0.2% |
|
[In] Rated Current |
1 A |
|
Depth |
77.5 mm |
|
Device Application |
power monitoring |
|
Frequency Measurement Range |
42-69 Hz |
|
Height |
96 mm |
|
Measurement Current |
50-10000 mA |
|
Measurement Voltage |
100-690 V AC 42...69 Hz between phases |
|
Mounting Mode |
flush-mounted |
|
Net Weight |
581 g |
|
Network Frequency |
50 Hz |
|
Network Frequency |
60 Hz |
|
Number Of Outputs |
1 pulse |
|
Power Consumption In VA |
18 VA at 415 V AC |
|
Sampling Rate |
256 samples/cycle |
Information About METSEPM8240
The PowerLogic PM8000 series meters are compact and cost-effective multifunction power meters designed to ensure reliability and efficiency in power-critical facilities. These meters offer insight into complex power quality conditions, enabling proactive measures to mitigate issues. With a modular, flexible ION technology architecture, each meter can be customized to suit various applications. The series features patented Disturbance Direction Detection, providing revenue-grade accuracy and multiple communication ports. Certified by third-party labs for energy accuracy and power quality, the PM8000 series instills confidence in data quality.
Cybersecurity features include secure protocols such as HTTPS and SFTP, security event logging, and Syslog protocol. Users can enable/disable communication ports and configure up to 50 user accounts. The meters come equipped with 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use. Events can be timestamped to +/-1 ms using time synchronization methods such as PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485), and network time set function.
The PM8000 series includes 3 digital inputs and one digital output, with the option to add up to 4 option modules. I/O option modules offer 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. The meters support a wide control power range of 90-415 VAC / 110-415 VDC. They operate in temperatures ranging from -25 to +70°C, with a humidity rating of 5% to 95%. The meters can function at altitudes up to 3000 m and are designed for panel mounting (1/4 DIN) with an integrated display.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
