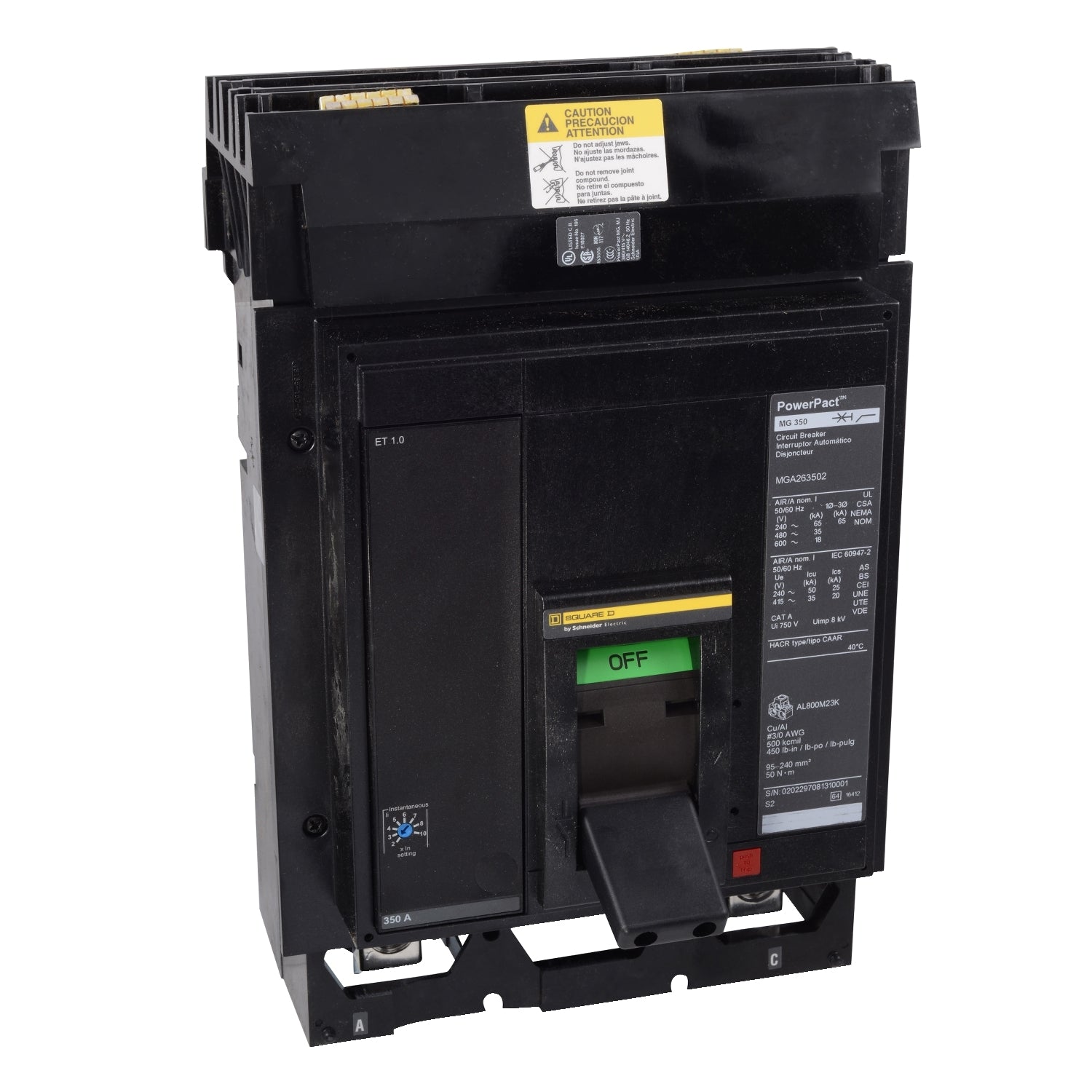

MGA36400 | Schneider Electric Circuit Breaker
- Regular price
- $3,099.00
- Sale price
- $3,099.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MGA36400
Description
The MGA36400 is a circuit breaker belonging to the PowerPacT M series, engineered to safeguard electrical systems against overloads and short circuits. PowerPacT M-Frame circuit breakers feature electronic trip units, with the M-Frame series offering either fixed long time electronic trip units or adjustable amperage versions. The MGA36400 specifically features an electronic trip unit, ET 1.0.
Equipped with an integral push-to-trip button for manual circuit interruption, PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line constructions. The MGA36400 circuit breaker has I-Line terminations on the line side and mechanical lugs on the load side.
Technical Specifications
|
Part # |
MGA36400 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
400 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Ics] rated service breaking capacity |
25 kA 240 V AC 50/60 Hz IEC 60947-2 |
|
|
20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Electronic, basic, ET 1.0 |
|
Magnetic tripping current |
800…4000 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Trip unit name |
ET 1.0 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
|
Local signalling |
1 trip indicator (green) |
|
Mounting mode |
I-Line bracket |
|
Mounting Support |
Bracket Terminal identifier: AL800M23K |
|
Long time pick-up adjustment range |
300...800 A |
|
Mounting Height |
9 in (228.60 mm) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Color |
Black |
|
Height |
12.86 in (326.64 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net Weight |
29 lb(US) (13.15 kg) |
|
Quantity per Set |
1 |
|
Circuit breaker application |
HACR rated |
Information About MGA36400
The MGA36400 is a circuit breaker from the PowerPacT M series designed to safeguard electrical systems from potential damage due to overloads and short circuits. Engineered with robust features, PowerPacT M-Frame circuit breakers offer reliable protection for various applications.
Equipped with an electronic trip unit, denoted as ET 1.0, this circuit breaker ensures precise and efficient operation. Additionally, all PowerPacT circuit breakers come with an integral push-to-trip button, facilitating manual operation when necessary.
PowerPacT M circuit breakers are versatile and adaptable, available in both 2 and 3-pole configurations, suitable for unit mount or I-Line construction setups. Featuring I-Line terminations on the line side and mechanical lugs on the load side, this unit offers flexibility in installation.
The MGA36400 has a line rated current of 400A and operates at a voltage of 600VAC. It boasts an interrupting rating of 18kA at 600VAC, ensuring reliable performance under challenging conditions. With a continuous current rating of 80% and an ABC phase connection, this circuit breaker delivers consistent and stable operation.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
