MGA36800 | Schneider Electric Circuit Breaker
- Regular price
- $4,999.00
- Sale price
- $4,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

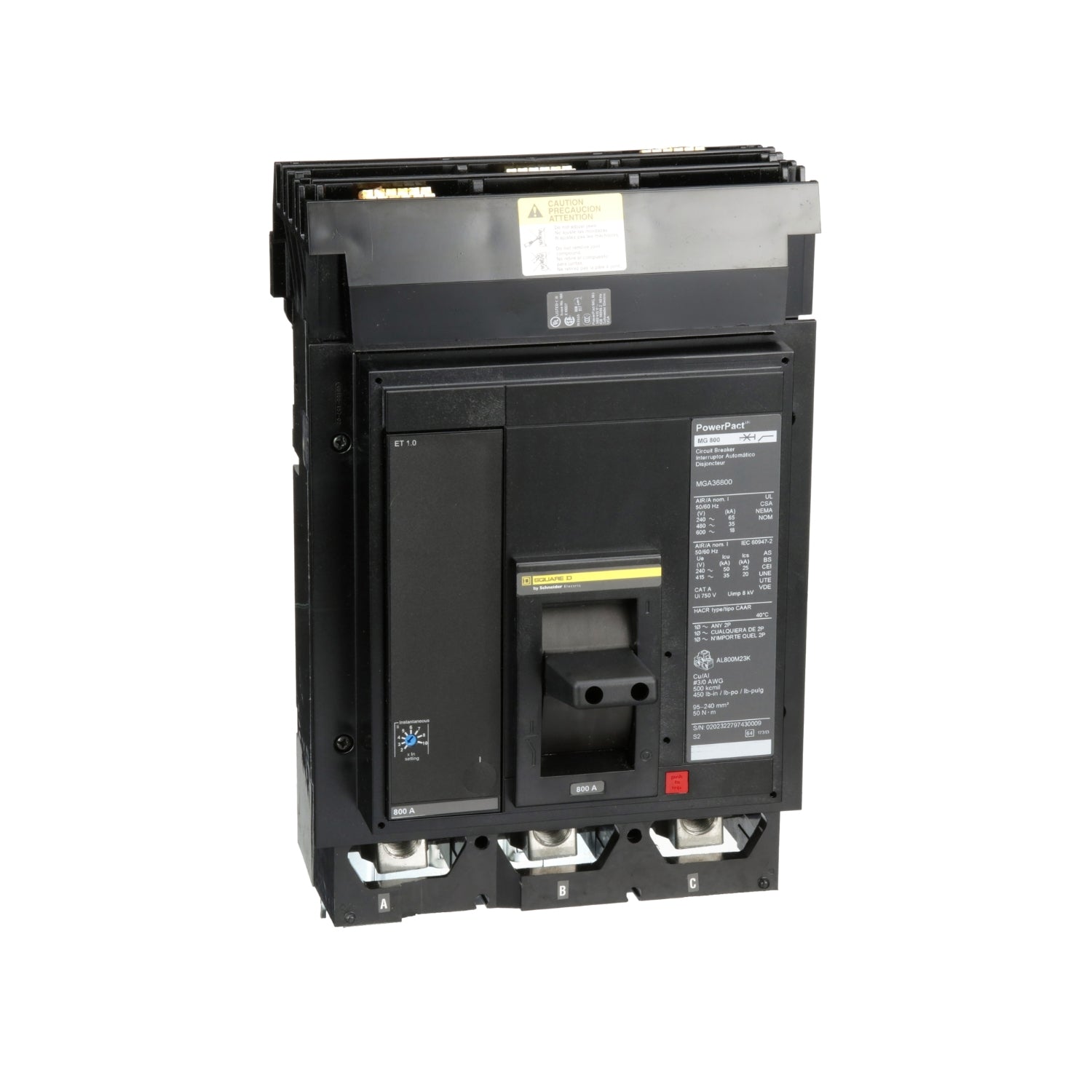

Product Description P/N: MGA36800
Description
The MGA36800 is a PowerPacT M-Frame circuit breaker with the following specifications: 800A, 3 Pole, 600VAC, 18kA, I-Line, ET 1.0, and 80% continuous current rating. It features an electronic trip unit (ET 1.0) and includes a push-to-trip button for manual operation. The circuit breaker is equipped with I-Line terminations on the line side and mechanical lugs on the load side. It conforms to UL, CSA, NOM, and IEC standards and is CE marked. This unit is designed to protect electrical systems from overloads and short circuits, and it has an ABC phase connection.
Technical Specifications
|
Part # |
MGA36800 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
[In] rated current |
800 A |
|
Number of Poles |
3P |
|
Control type |
Operating handle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz UL 489 |
|
Network frequency |
50/60 Hz |
|
[Ics] rated service breaking capacity |
25 kA 240 V AC 50/60 Hz IEC 60947-2 |
|
|
20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Electronic, basic, ET 1.0 |
|
Magnetic tripping current |
1600…8000 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Trip unit name |
ET 1.0 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
3 x AWG 3/0...3 x 500 kcmil aluminum/copper |
|
Local signalling |
1 trip indicator (green) |
|
Mounting mode |
I-Line bracket |
|
Mounting support |
Bracket |
|
Electrical connection |
I-Line connection, line |
|
Terminal identifier |
AL800M23K |
|
Long time pick-up adjustment range |
300...800 A |
|
Mounting height |
9 in (228.60 mm) |
|
Tightening torque |
442.54 lbf.in (50 N.m) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Color |
Black |
|
Height |
12.86 in (326.64 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net weight |
29 lb(US) (13.15 kg) |
|
Quantity per set |
1 |
|
Circuit breaker application |
HACR rated |
Information About MGA36800
The MGA36800 is a PowerPacT M-Frame circuit breaker with a rated current of 800A, 3 poles, and an operational voltage of 600VAC. It features an interrupting rating of 18kA. This device is designed to protect electrical systems from damage due to overloads and short circuits. The MGA36800 employs an electronic trip unit, specifically the ET 1.0 model, which is part of the PowerPacT M-Frame series. This series offers both fixed long-time electronic trip units and adjustable amperage versions, providing flexibility in application.
The circuit breaker is equipped with an integral push-to-trip button located on the cover, allowing for manual tripping of the breaker. The PowerPacT M-Frame circuit breakers are available in both 2-pole and 3-pole configurations, and can be mounted using unit mount or I-Line construction. This particular model, the MGA36800, utilizes I-Line terminations on the line side and mechanical lugs on the load side, facilitating secure and reliable electrical connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
