MGBSX1 | Cisco Compatible 1G SFP 550M Transceiver
- Regular price
- $87.00
- Sale price
- $87.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MGBSX1
Description

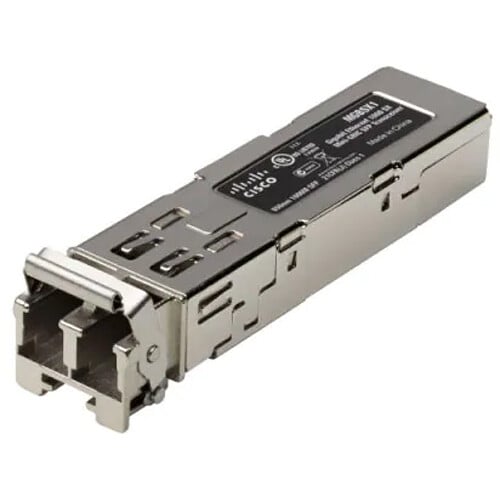

The MGBSX1 is a Cisco-compatible 1G SFP transceiver module designed for short-range multimode fiber (MMF) applications.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Telecommunication Accessories
|
| Part Number | MGBSX1 |
| Subcatecory |
Telecom Accessories
|
| Data Rate | 1.063-1.25Gbps |
| Compatibility | Cisco / Linksys (MSA-Compliant) |
| Wavelength (Tx/Rx) | 850 nm / 850 nm |
| Media Type | Multi-Mode Fiber (MMF) |
| Connector Type | Duplex LC |
| Optical Budget | 7.5 dB |
| Max Distance | 550 m |
| Applications | Gigabit Ethernet, 1G Fiber Channel |
| Operating Temperature | 0°C to 70°C |
| Dimensions W x H x D | 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) |
| Weight | 0.018 kg |
Information About MGBSX1
The MGBSX1 operates over 850 nm wavelength for both transmit and receive functions and uses a duplex LC connector to interface with multi-mode fiber (typically OM2/OM3). It delivers up to 550 meters of reach, depending on fiber type and quality, with an optical budget of 7.5 dB—sufficient for most intra-building links and campus connections. This SFP transceiver supports both Gigabit Ethernet (1.25 Gbps) and 1G Fibre Channel (1.0625 Gbps) standards. It includes DDM/DOM (Digital Diagnostic Monitoring/Optical Monitoring) support, which allows real-time tracking of optical performance parameters such as temperature, voltage, and power levels.
Key Features:
-
850 nm Wavelength on MMF: Optimized for short-distance fiber connections
-
550 m Reach: Ideal for intra-campus, data center, or rack-to-rack links
-
Gigabit Ethernet and 1G Fiber Channel Support: Flexible use across networking applications
-
Digital Diagnostic Monitoring (DDM/DOM): Provides advanced visibility and troubleshooting
-
Cisco and Linksys Compatible: MSA-compliant design ensures broad interoperability
The MGBSX1 enables high-speed, low-latency connectivity for modern fiber networks in enterprise and data center environments.
