MGL36300 | Schneider Electric Circuit Breaker
- Regular price
- $3,297.00
- Sale price
- $3,297.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

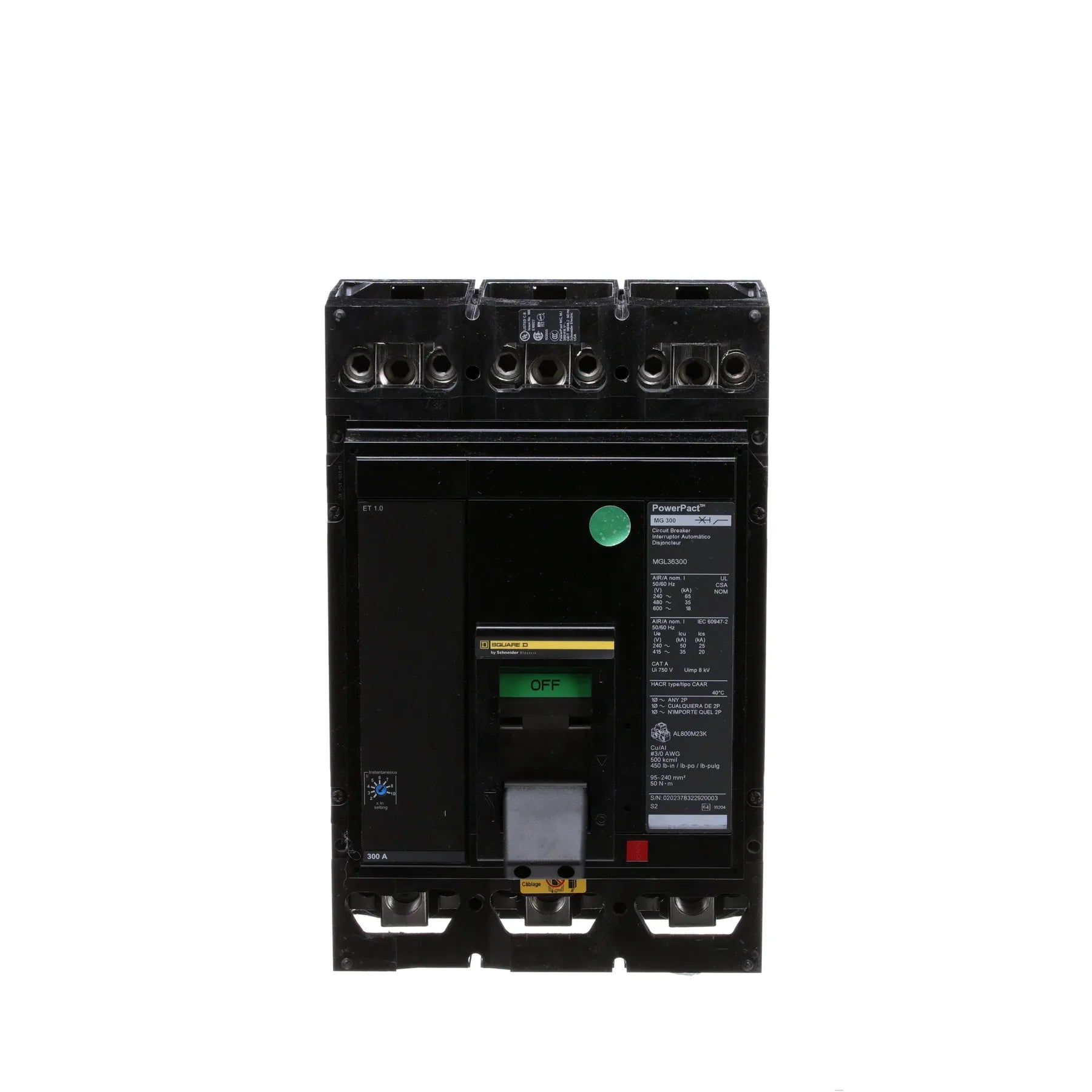

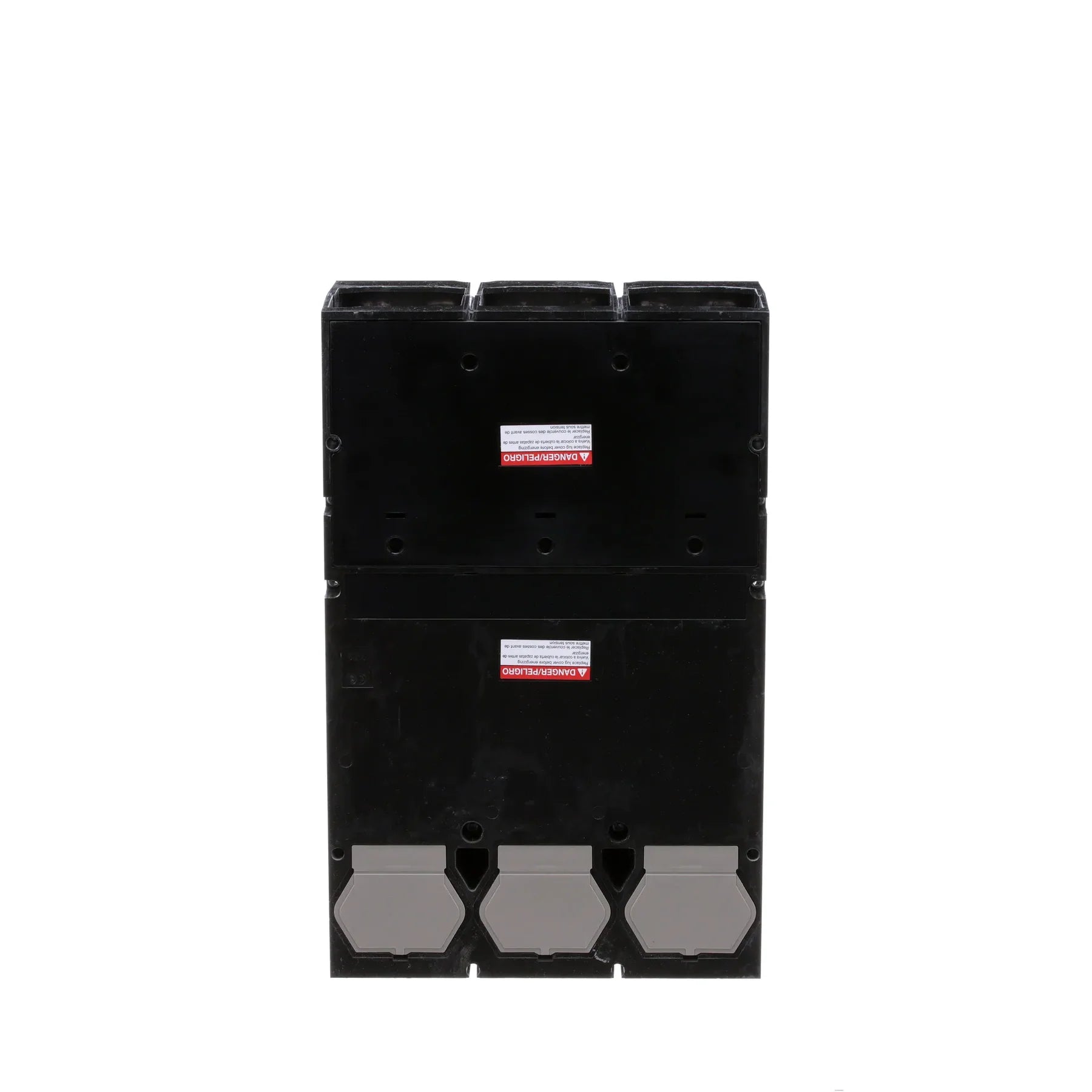

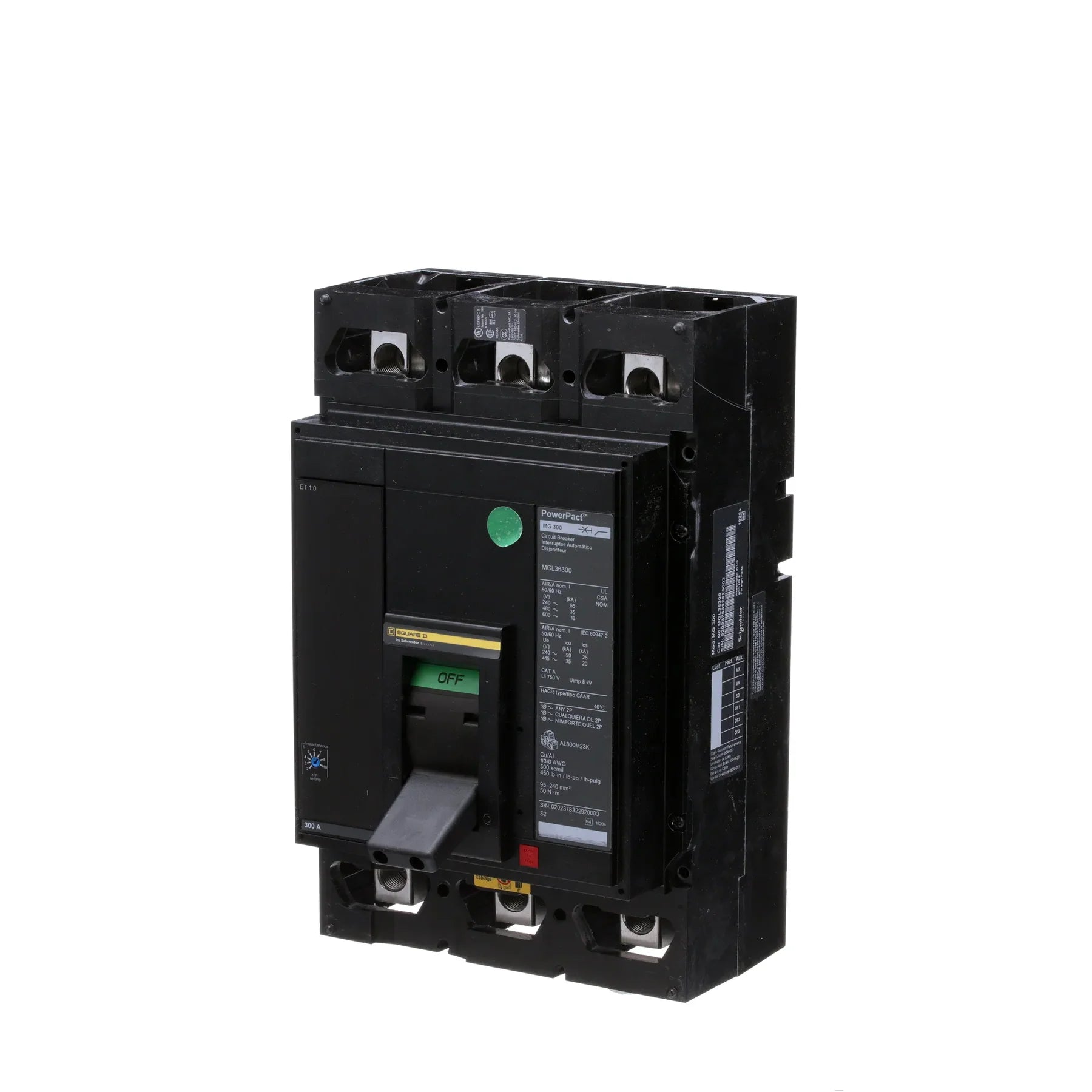

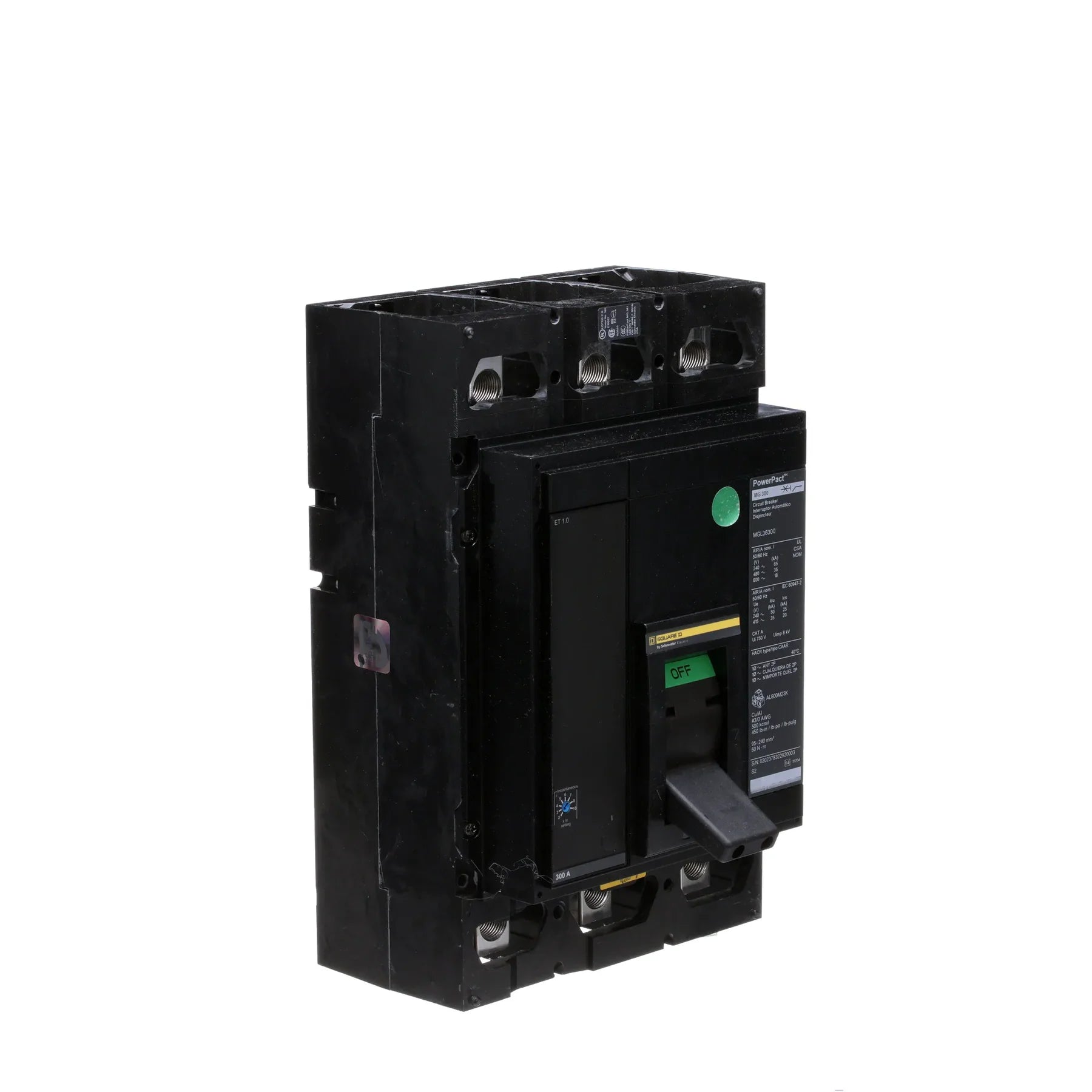

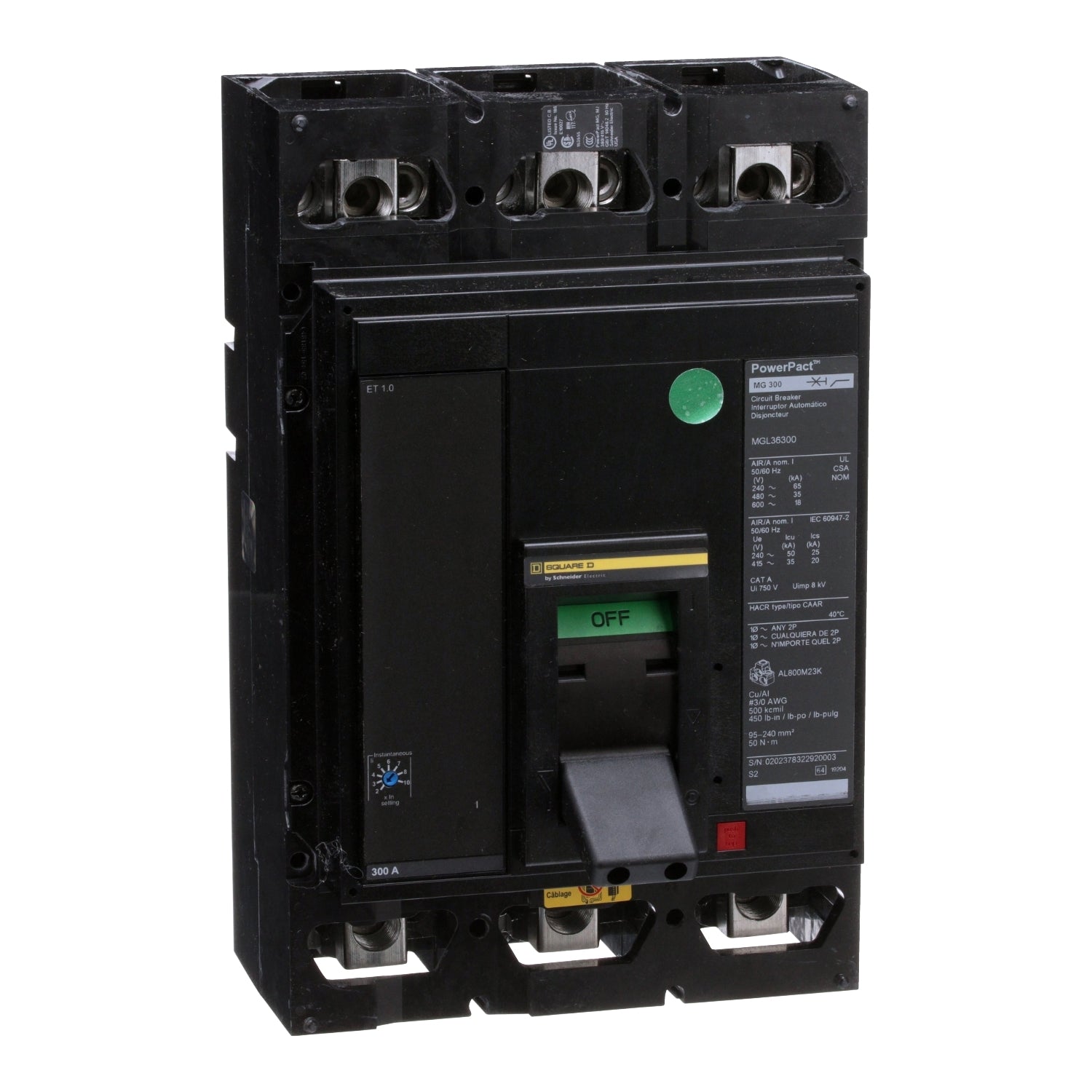

Product Description P/N: MGL36300
Description
The MGL36300 circuit breaker belongs to the PowerPacT M-Frame series, designed to safeguard electrical systems against overloads and short circuits. These breakers are equipped with an electronic trip unit, specifically the ET 1.0 variant. Featuring an integral push-to-trip button in the cover, PowerPacT M-Frame breakers offer manual tripping capability for added safety and control.
Available in both 2 and 3-pole unit mount or I-Line configurations, this breaker includes lugs on both the line and load sides, ensuring versatile installation options. Rated at 300A and three poles, it operates effectively at 600VAC and provides an interrupting rating of 18kA. The breaker also boasts a continuous current rating of 80%, supporting reliable performance under varying load conditions.
Technical Specifications
|
Part # |
MGL36300 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact M |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
300 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
G |
|
Rated Operational Voltage [Ue] |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
Rated Service Breaking Capacity [Ics] |
25 kA 240 V AC 50/60 Hz IEC 60947-2<br>20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
|
Rated Impulse Withstand Voltage [Uimp] |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, basic, ET 1.0 |
|
Magnetic Tripping Current |
600…3000 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage [Ui] |
750 V IEC 60947-2 |
|
Trip Unit Name |
ET 1.0 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Terminal Identifier |
AL800M23K |
|
Long Time Pick-Up Adjustment Range |
300...800 A |
|
Tightening Torque |
442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (3 x AWG 3/0...3 x 500 kcmil) |
|
Power Wire Stripping Length |
0.98 in (25 mm) |
|
Color |
Black |
|
Height |
12.86 in (326.64 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net Weight |
29 lb(US) (13.15 kg) |
Information About MGL36300
The MGL36300 circuit breaker, part of the PowerPacT M range, is engineered to safeguard electrical systems against overloads and short circuits. Featuring an electronic trip unit ET 1.0, it ensures precise protection. This breaker model includes an integral push-to-trip button on its cover for manual tripping. Available in configurations for 2 and 3-pole unit mount or I-Line setups, it facilitates versatile installation.
Operating at 300A and designed as a 3-pole unit, the MGL36300 circuit breaker offers an interrupting rating of 18kA at 600VAC, ensuring robust performance under high fault conditions. With an 80% continuous current rating, it reliably manages electrical loads.
Compliant with UL, CSA, NOM, and IEC standards, the PowerPacT M circuit breakers meet rigorous safety and performance benchmarks. They are also CE marked, indicating adherence to European safety directives.
The breaker's construction includes lugs on both the line and load sides, enhancing connectivity and stability within electrical systems. Its design supports reliable operation in industrial environments where consistent electrical protection is critical. The electronic trip unit ET 1.0 provides enhanced sensitivity and response times, ensuring efficient fault detection and interruption.
