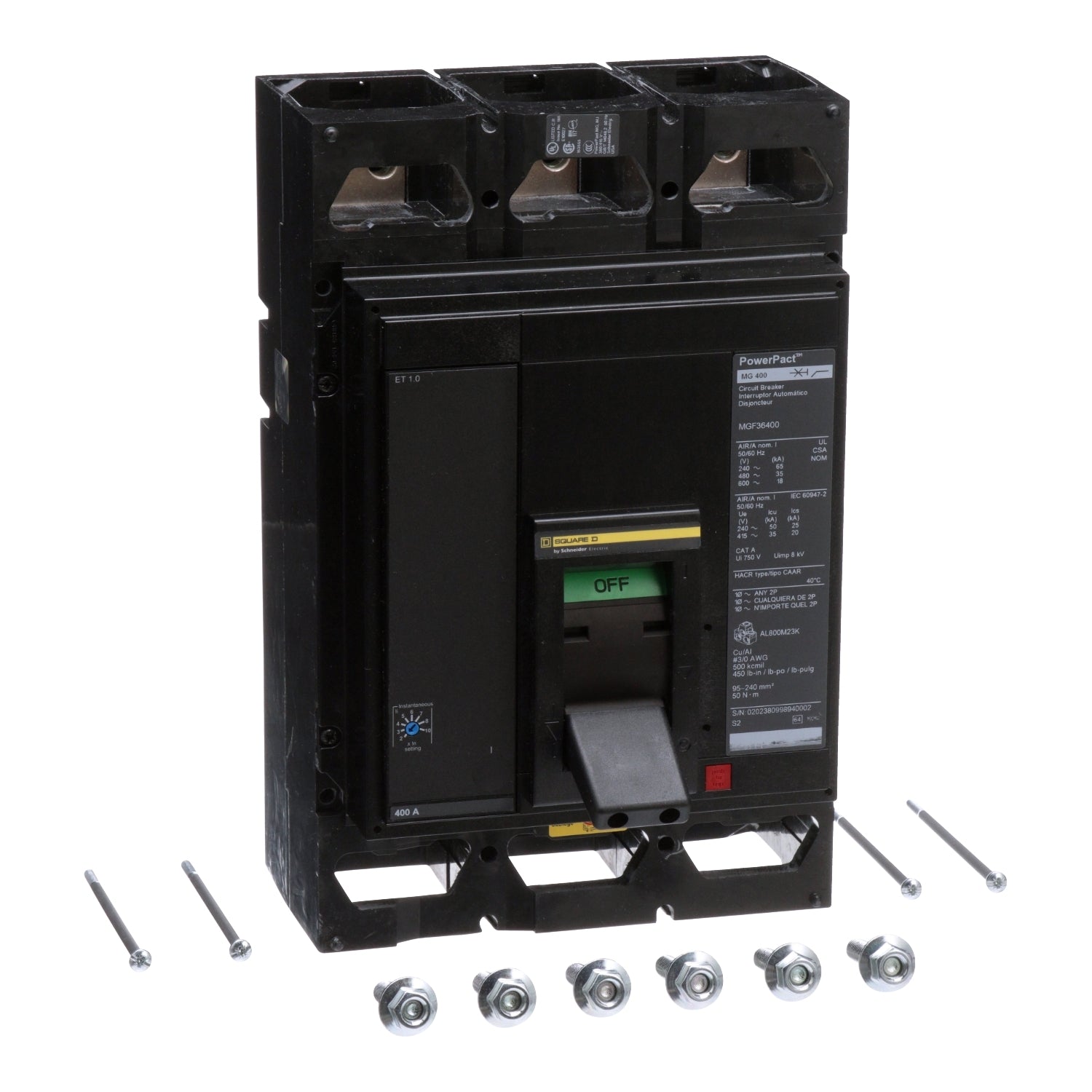

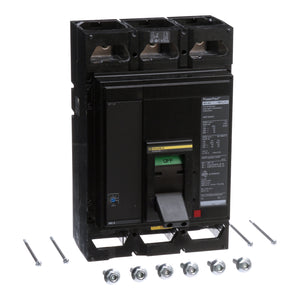

Product Description P/N: MGL36400
Description
The MGL36400 Circuit Breaker, part of the PowerPacT M series, is designed to safeguard electrical systems against overloads and short circuits. Featuring an electronic trip unit, specifically the ET 1.0, the PowerPacT M-Frame circuit breakers offer reliable protection. They are equipped with an integral push-to-trip button on the cover for manual operation.
Available in both 2 and 3-pole unit mount configurations or I-Line construction, this breaker includes lugs on both the line and load sides for secure electrical connections. The MGL36400, a 400A, 3-pole circuit breaker, boasts an interrupting rating of 18kA at 600VAC, ensuring effective current interruption during faults.
Technical Specifications
|
Part # |
MGL36400 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
400 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Ics] Rated Service Breaking Capacity |
25 kA 240 V AC 50/60 Hz IEC 60947-2, <br> 20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, basic, ET 1.0 |
|
Magnetic Tripping Current |
800…4000 A |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Trip Unit Name |
ET 1.0 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
|
Local Signalling |
1 trip indicator green) |
|
Mounting Mode |
Unit mount lug) |
|
Terminal Identifier |
AL800M23K |
|
Long Time Pick-up Adjustment Range |
300...800 A |
|
Power Wire Stripping Length |
0.98 in (25 mm) |
|
Color |
Black |
|
Height |
12.86 in (326.64 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net Weight |
29 lb(US) (13.15 kg) |
Information About MGL36400
The MGL36400 Circuit Breaker, part of the PowerPacT M-Frame series, is specifically engineered to safeguard electrical systems against potential damage from overloads and short circuits. These circuit breakers within the PowerPacT M-Frame range feature advanced electronic trip units, offering either a fixed long time setting or an adjustable amperage variant. The MGL36400 model is equipped with the ET 1.0 electronic trip unit.
All PowerPacT M-Frame circuit breakers include a built-in push-to-trip button integrated into the cover, facilitating manual operation to trip the circuit breaker as needed. Available configurations for the PowerPacT M series include both 2 and 3-pole unit mount options, as well as I-Line constructions, ensuring flexibility in installation setups.
This particular unit features lugs on both the line and load sides, enhancing connectivity and installation efficiency. The MGL36400 circuit breaker is rated for an interrupting capacity of 18kA at 600VAC, ensuring robust protection under fault conditions. It maintains a continuous current rating of 80% with an ABC phase connection, facilitating reliable performance in diverse electrical environments.
