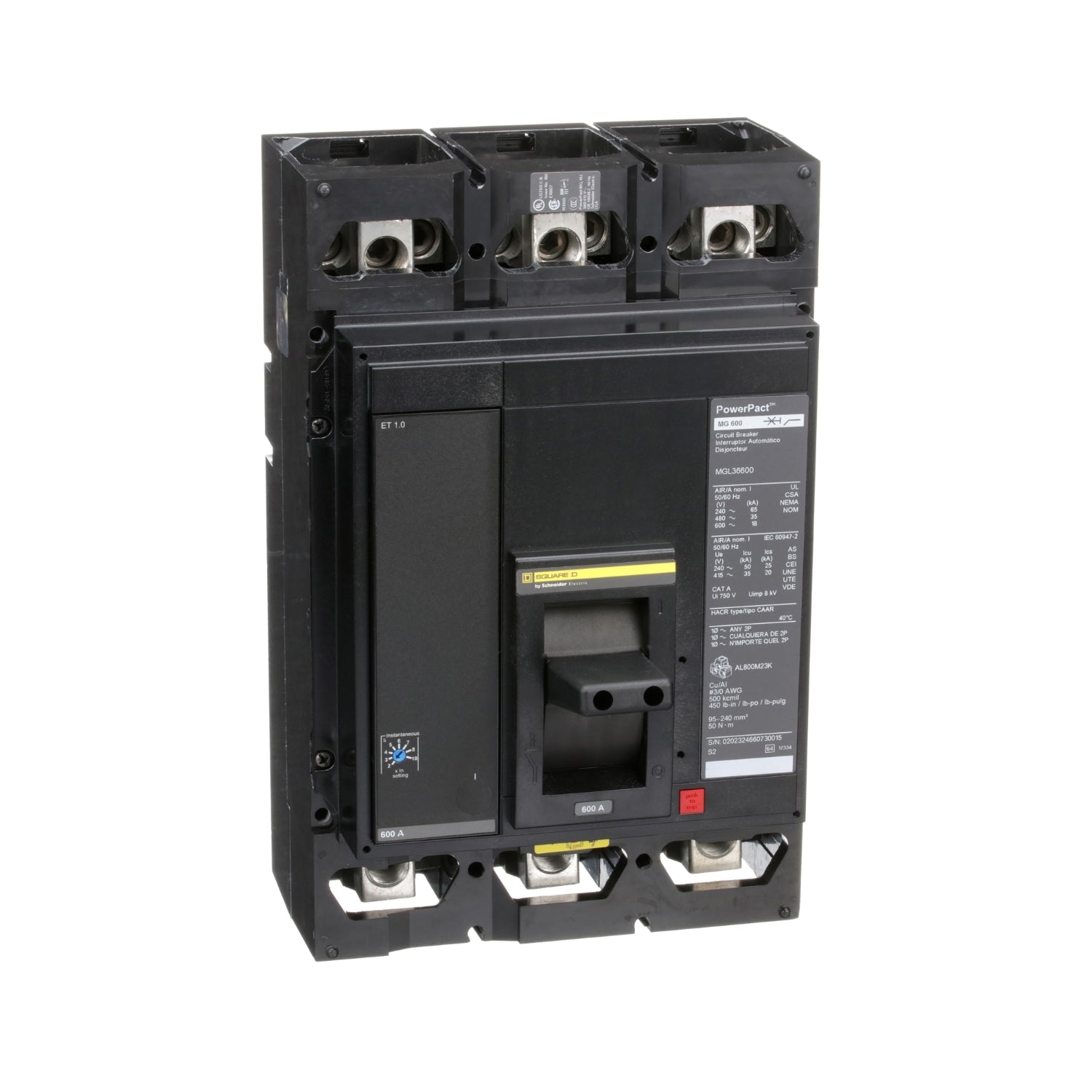

Product Description P/N: MGL36600
Description
The MGL36600 is a circuit breaker belonging to the PowerPacT M-Frame series, designed to safeguard electrical systems from overload and short circuit damages. Featuring a 3-pole configuration and a current rating of 600A, it ensures robust protection for various applications. Equipped with a fixed long-time electronic trip unit, ET 1.0, this circuit breaker offers reliable performance in detecting and responding to electrical faults. It includes an integral push-to-trip button on the cover for manual tripping. The PowerPacT M-Frame circuit breakers are available in 2 and 3-pole unit mount or I-Line construction configurations, providing versatility in installation.
Technical Specifications
|
Part # |
MGL36600 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
600 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Ics] Rated Service Breaking Capacity |
25 kA 240 V AC 50/60 Hz IEC 60947-2 <br> 20 kA 380/415 V AC 50/60 Hz IEC 60947-2 |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, basic, ET 1.0, Magnetic tripping current 1200…6000 A |
|
Continuous Current Rating |
80% |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Trip Unit Name |
ET 1.0 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
|
Local Signalling |
1 trip indicator green) |
|
Mounting Mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Terminal Identifier |
AL800M23K |
|
Long Time Pick-up Adjustment Range |
300...800 A |
|
Tightening Torque |
442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) (3 x AWG 3/0...3 x 500 kcmil) |
|
Power Wire Stripping Length |
0.98 in (25 mm) |
|
Color |
Black |
|
Height |
12.86 in (326.64 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net Weight |
29 lb(US) (13.15 kg) |
|
Quantity per Set |
1 |
|
Circuit Breaker Application |
HACR rated |
Information About MGL36600
The MGL36600 is a Circuit Breaker from the PowerPacT M series, designed for electrical system protection against overloads and short circuits. Featuring a 600A rating, it is a 3-pole breaker with a voltage rating of 600VAC and an interrupting rating of 18kA at 600VAC. Equipped with lugs for both line and load sides, this circuit breaker employs an electronic trip unit, ET 1.0, for enhanced functionality.
PowerPacT M-Frame circuit breakers offer flexibility in trip unit options, with models featuring either a fixed long-time electronic trip unit or an adjustable amperage version. All PowerPacT circuit breakers, including the MGL36600, feature an integral push-to-trip button in the cover for manual circuit interruption.
Available in 2 and 3-pole configurations, the PowerPacT M circuit breakers can be mounted as unit mount or I-Line construction, catering to various installation requirements. With a continuous current rating of 80%, they comply with UL, CSA, NOM, and IEC standards, ensuring safety and reliability in electrical installations. Additionally, they are CE marked, indicating conformity with European Union regulations.
