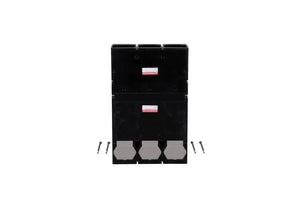

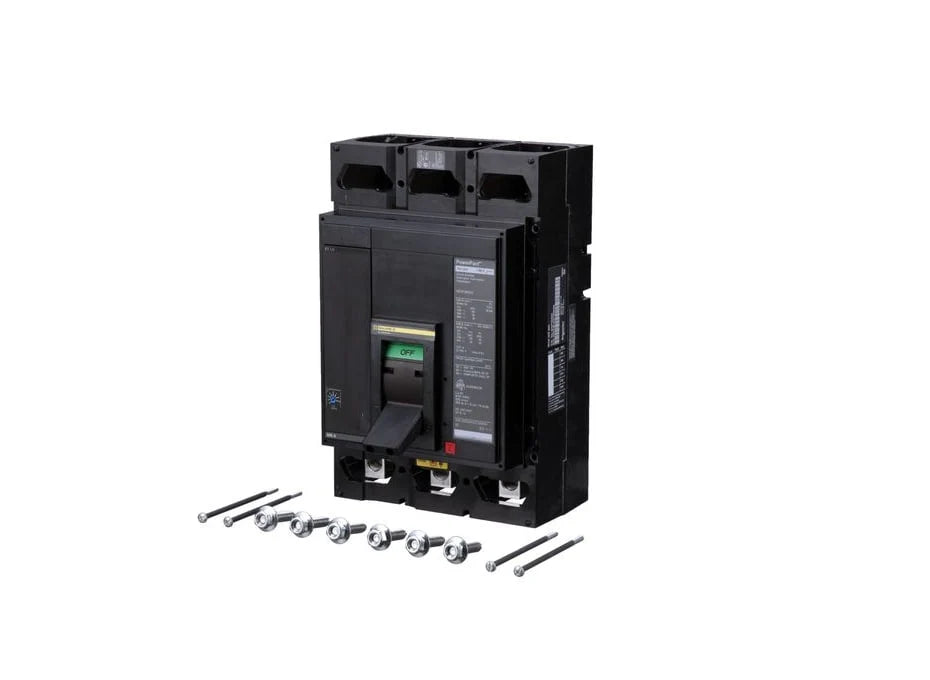

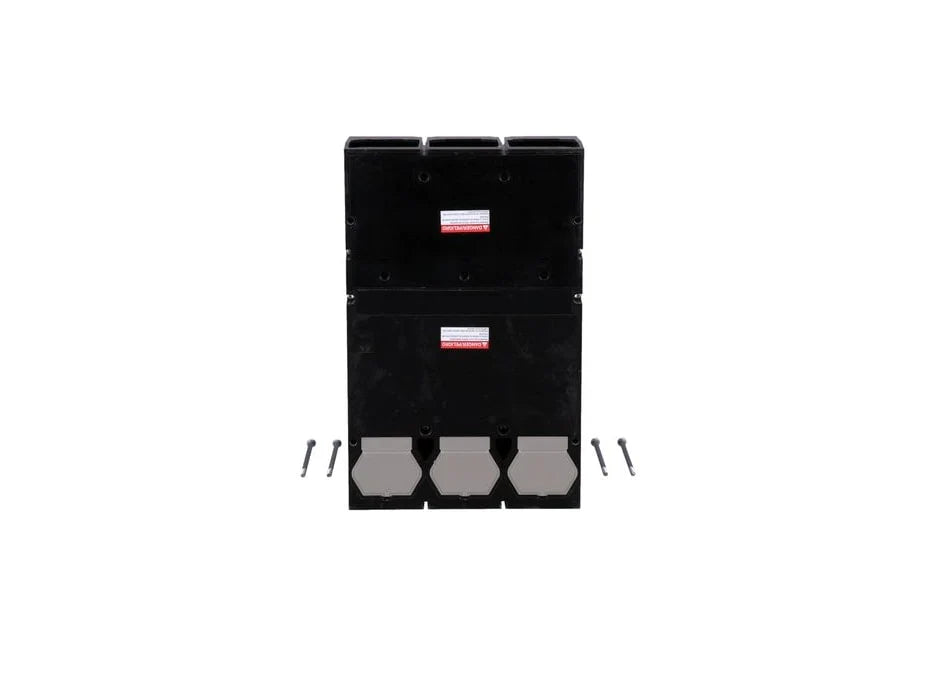

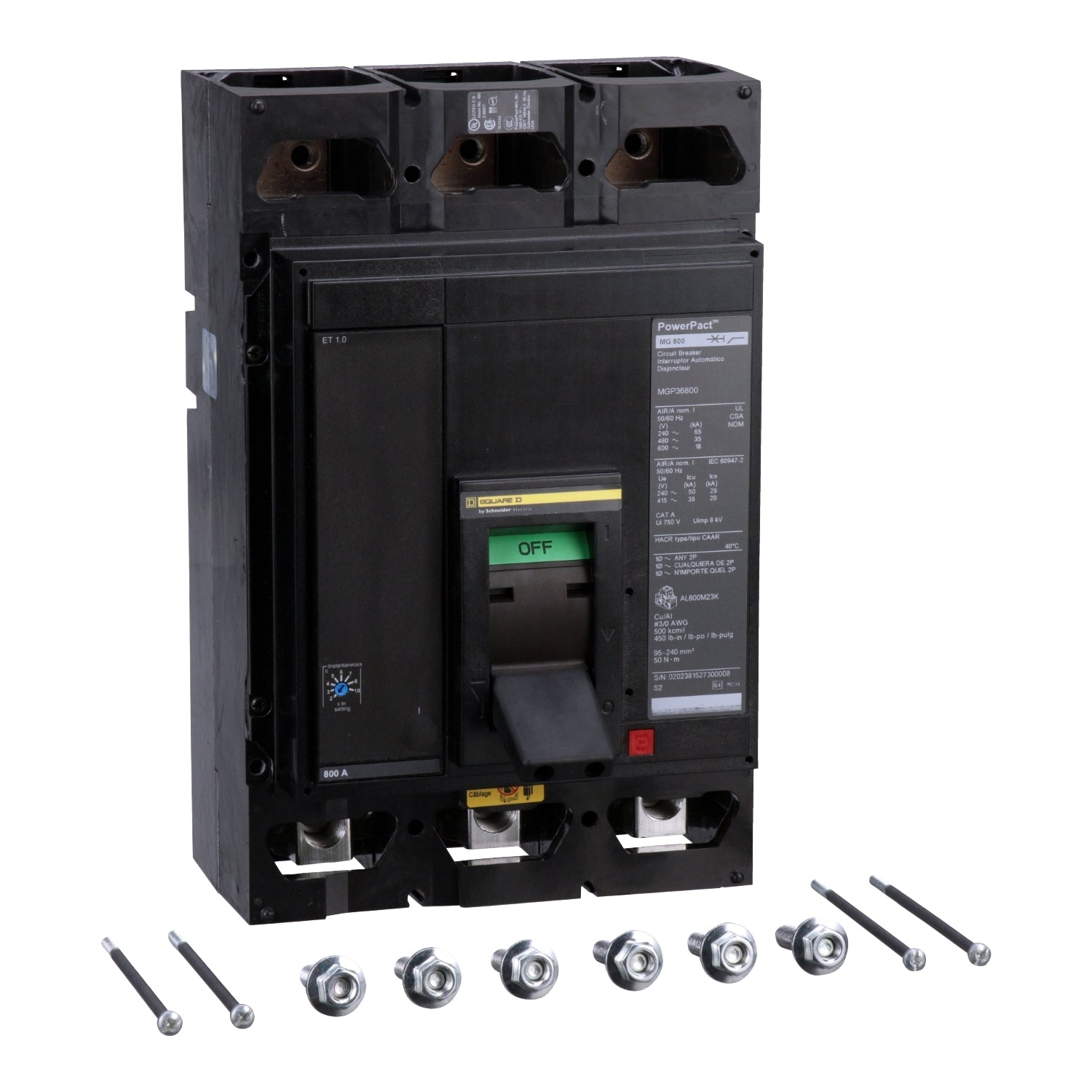

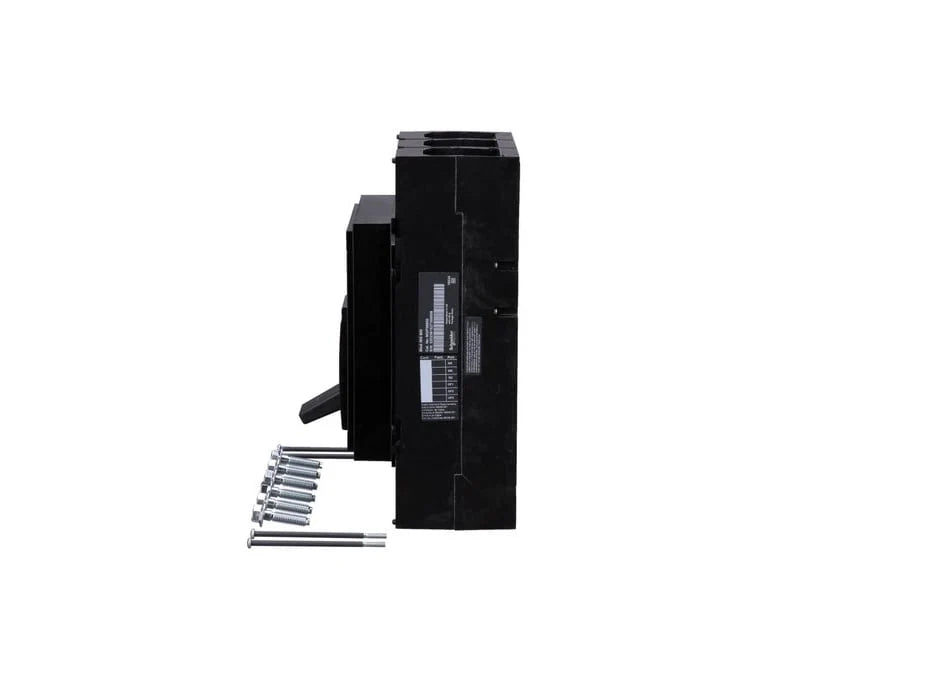

MGP36800 | Schneider Electric Circuit Breaker
- Regular price
- $4,752.00
- Sale price
- $4,752.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MGP36800
Description
The MGP36800 is a 800A, 3-pole circuit breaker from Eaton's PowerPacT M-Frame series, designed to protect electrical systems from damage caused by overloads and short circuits at 600VAC. It features an electronic trip unit, specifically the ET 1.0 variant, ensuring precise and reliable tripping under fault conditions.
Technical Specifications
|
Part # |
MGP36800 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range/Product Name |
PowerPact M |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
800 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking Capacity Code |
G |
|
Rated Operational Voltage (Ue) |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
Rated Service Breaking Capacity (Ics) |
25 kA at 240 V AC 50/60 Hz IEC 60947-2 |
|
|
20 kA at 380/415 V AC 50/60 Hz IEC 60947-2 |
|
Rated Impulse Withstand Voltage (Uimp) |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, basic, ET 1.0 |
|
Magnetic Tripping Current |
1600…8000 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage (Ui) |
750 V IEC 60947-2 |
|
Trip Unit Name |
ET 1.0 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
|
Local Signalling |
1 trip indicator (green) |
|
Mounting Mode |
Unit mount (lug) |
|
Mounting Support |
Lug |
|
Terminal Identifier |
AL800M23K |
|
Long Time Pick-up Adjustment Range |
300…800 A |
|
Tightening Torque |
442.54 lbf.in (50 N.m) 0.15…0.37 in² (95…240 mm²) |
|
Power Wire Stripping Length |
1.0 in (25 mm) |
|
Color |
Black |
Information About MGP36800
The MGP36800 is part of Eaton's PowerPacT M-Frame series of circuit breakers, engineered to safeguard electrical systems against overloads and short circuits. Specifically designed with an electronic trip unit, ET 1.0, this circuit breaker ensures precise and reliable protection by swiftly disconnecting the circuit upon detecting faults.
All PowerPacT M-Frame circuit breakers, including the MGP36800, feature an integral push-to-trip button on the cover, enabling manual circuit interruption for maintenance or emergency situations. They are available in configurations supporting 2 and 3-pole unit mount or I-Line constructions, offering flexibility in installation and usage scenarios.
The MGP36800 is configured with terminal nuts on the line side and lugs on the load side, facilitating secure and efficient electrical connections in industrial applications. It operates at 800A across 3 poles and has an impressive interrupting rating of 18kA at 600VAC, ensuring robust performance under fault conditions.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
