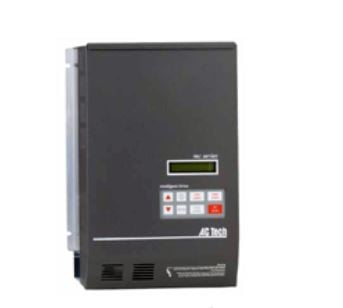

MH4500BG135 | Lenze AC Tech MCH 50HP 480V HVAC Drive NEMA 1 Bypass
- Regular price
- $12,397.00
- Sale price
- $12,397.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MH4500BG135
Description
The Lenze MH4500BG135 is an MCH Series variable torque HVAC drive designed for 480 V three-phase applications. Rated at 50 HP, it is housed in a NEMA 1 enclosure and includes an integrated disconnect, line reactor, motor fuses, and bypass configuration. The unit is intended for commercial and industrial HVAC motor control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze (AC Tech) |
| Category | Drives |
| Part Number | MH4500BG135 |
| Subcategory | Drive |
| Series | MCH Variable Torque |
| Rated Power | 50 HP |
| Input Voltage | 400–480 VAC |
| Input Phase | 3 Phase |
| Application Type | HVAC Variable Torque |
| Enclosure Type | NEMA 1 (Vented) |
| Integrated Components | Disconnect, Line Reactor, Motor Fuses |
| Bypass Option | Included |
| Communication Protocol | Modbus RTU |
| Mounting Type | Enclosed Cabinet |
| Status | Discontinued by Manufacturer |
| Weight | 85.00 lbs |
Information About MH4500BG135
The MH4500BG135 is part of the Lenze AC Tech MCH Series, engineered specifically for variable torque applications such as fans and pumps. It operates on a 400–480 VAC three-phase supply and supports Modbus RTU communication for integration into building management systems. The enclosure includes a door-interlocked input disconnect, factory-installed line reactor, motor fusing, and bypass assembly for operational flexibility. Designed in a NEMA 1 general-purpose vented enclosure, the drive is suitable for indoor installation in electrical rooms or mechanical spaces.
Key Features:
-
50 HP Power Rating: Designed for HVAC variable torque motor control applications.
-
400–480 VAC Operation: Compatible with 480 V three-phase electrical systems.
-
NEMA 1 Enclosure: General-purpose vented enclosure for indoor installation.
-
Integrated Bypass: Allows motor operation independent of the drive for maintenance or emergency operation.
-
Door-Interlocked Disconnect: Enhances safety by preventing enclosure access under load.
-
Line Reactor Included: Reduces harmonic distortion and improves input power quality.
-
Motor Fuses: Provides integrated motor branch protection.
-
Modbus RTU Communication: Enables connection to building automation and control networks.
The MH4500BG135 delivers the reliability and control required for industrial and commercial HVAC drive applications.
Description
The Lenze MH4500BG135 is an MCH Series variable torque HVAC drive designed for 480 V three-phase applications. Rated at 50 HP, it is housed in a NEMA 1 enclosure and includes an integrated disconnect, line reactor, motor fuses, and bypass configuration. The unit is intended for commercial and industrial HVAC motor control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze (AC Tech) |
| Category | Drives |
| Part Number | MH4500BG135 |
| Subcategory | Drive |
| Series | MCH Variable Torque |
| Rated Power | 50 HP |
| Input Voltage | 400–480 VAC |
| Input Phase | 3 Phase |
| Application Type | HVAC Variable Torque |
| Enclosure Type | NEMA 1 (Vented) |
| Integrated Components | Disconnect, Line Reactor, Motor Fuses |
| Bypass Option | Included |
| Communication Protocol | Modbus RTU |
| Mounting Type | Enclosed Cabinet |
| Status | Discontinued by Manufacturer |
| Weight | 85.00 lbs |
Information About MH4500BG135
The MH4500BG135 is part of the Lenze AC Tech MCH Series, engineered specifically for variable torque applications such as fans and pumps. It operates on a 400–480 VAC three-phase supply and supports Modbus RTU communication for integration into building management systems. The enclosure includes a door-interlocked input disconnect, factory-installed line reactor, motor fusing, and bypass assembly for operational flexibility. Designed in a NEMA 1 general-purpose vented enclosure, the drive is suitable for indoor installation in electrical rooms or mechanical spaces.
Key Features:
-
50 HP Power Rating: Designed for HVAC variable torque motor control applications.
-
400–480 VAC Operation: Compatible with 480 V three-phase electrical systems.
-
NEMA 1 Enclosure: General-purpose vented enclosure for indoor installation.
-
Integrated Bypass: Allows motor operation independent of the drive for maintenance or emergency operation.
-
Door-Interlocked Disconnect: Enhances safety by preventing enclosure access under load.
-
Line Reactor Included: Reduces harmonic distortion and improves input power quality.
-
Motor Fuses: Provides integrated motor branch protection.
-
Modbus RTU Communication: Enables connection to building automation and control networks.
The MH4500BG135 delivers the reliability and control required for industrial and commercial HVAC drive applications.
