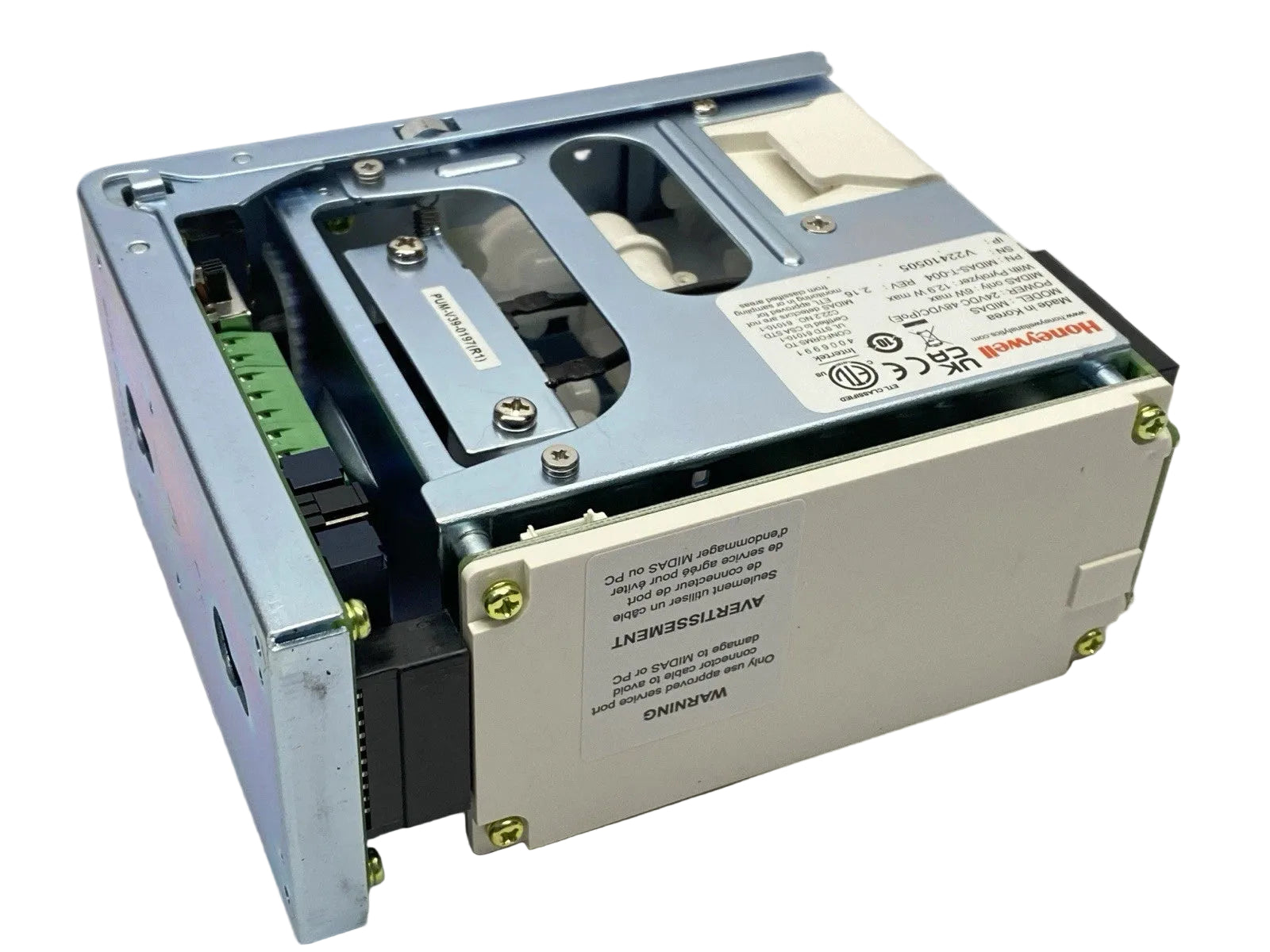

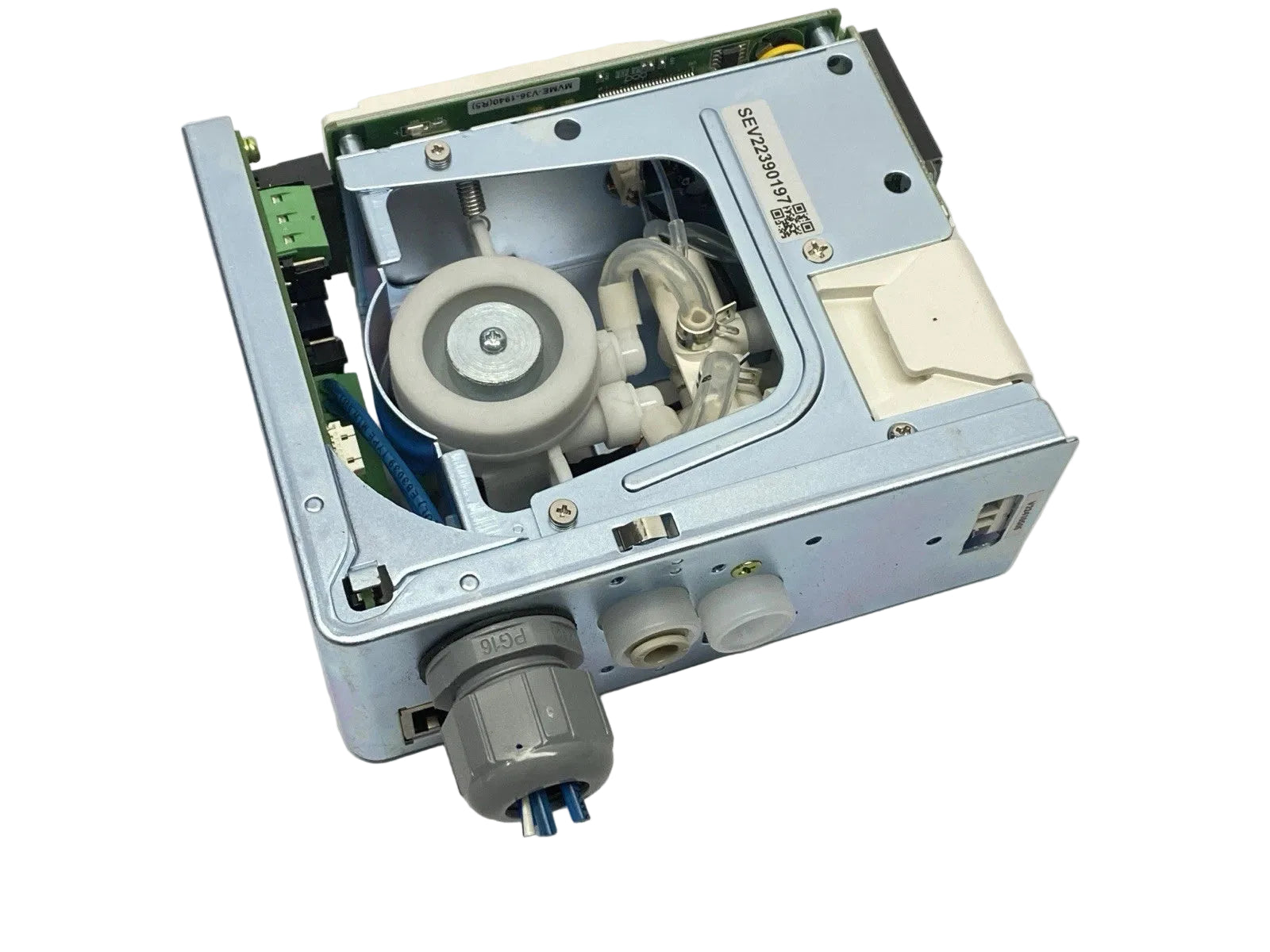

MIDAS-T-004 | Honeywell Analytics NH₃ Infrared Gas Monitor 24VDC
- Regular price
- $952.00
- Sale price
- $952.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MIDAS-T-004
Description
The Honeywell Analytics MIDAS-T-004 is a single-zone ammonia gas monitor designed for continuous detection of NH₃ concentrations from 9 to 100 ppm. Operating on 24 VDC, it uses single-pass infrared non-dispersive sensing technology to provide accurate measurement and stable performance. The MIDAS-T-004 supports remote sampling up to 100 ft and integrates with control systems via relay outputs, 4–20 mA signal, and Modbus/TCP communication.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell Analytics |
| Category | Gas Detection |
| Part Number | MIDAS-T-004 |
| Subcategory | Fixed Gas Monitor |
| Supply Voltage | 24 VDC (-15% to +10%) @ 208 mA |
| Gas Detected | Ammonia (NH₃) |
| Measurement Range | 9–100 ppm |
| Sensing Technology | Single-pass Infrared Non-Dispersive (NDIR) |
| Repeatability | ±5% of measured value |
| Linearity | ±2% of measured value |
| Response Time | 2–30 seconds (tube length dependent) |
| Warm-Up Time | <10 minutes |
| Signal Outputs | 3 alarm relays; 4–20 mA @ 250 Ω |
| Communication Protocol | Modbus/TCP |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Operating Humidity | 15% to 90% RH non-condensing |
| Enclosure Rating | NEMA 1 |
| Dimensions | 5.9 in H x 12.6 in W x 6 in D |
| Weight | 1.8 lb (0.8 kg) |
Information About MIDAS-T-004
The MIDAS-T-004 is a fixed gas detection module engineered for monitoring ammonia in industrial and commercial environments. It features a single-pass NDIR sensor for selective gas detection with ±2% linearity and ±5% repeatability across its measurement range. The unit includes three configurable alarm relays, a system fault relay, and a 4–20 mA analog output for integration with building management or safety systems. Designed for single-point monitoring, it includes a 10 ft sampling and exhaust tube and supports extended sampling distances up to 100 ft.
Key Features:
- Ammonia Detection (NH₃): Monitors concentrations from 9–100 ppm using NDIR technology.
- Single-Pass Infrared Sensor: Provides stable and selective gas measurement.
- Multiple Alarm Outputs: Three alarm relays (1A @ 30 VDC / 0.5A @ 125 VAC) plus fault relay.
- 4–20 mA Output: Enables integration with PLCs and building management systems.
- Modbus/TCP Communication: Supports network-based monitoring and diagnostics.
- Digital Display: 4-digit screen for real-time and peak gas level indication.
- Remote Sampling Capability: 10 ft tube included; supports up to 100 ft sampling distance.
- Visual Alarm Indication: Provides local visual notification of alarm conditions.
The MIDAS-T-004 delivers the reliability and precision required for fixed ammonia gas detection and safety monitoring systems.
