Mircom MD-764 Main Fire Alarm Control Board for FX-2000 Series
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MD-764
Description

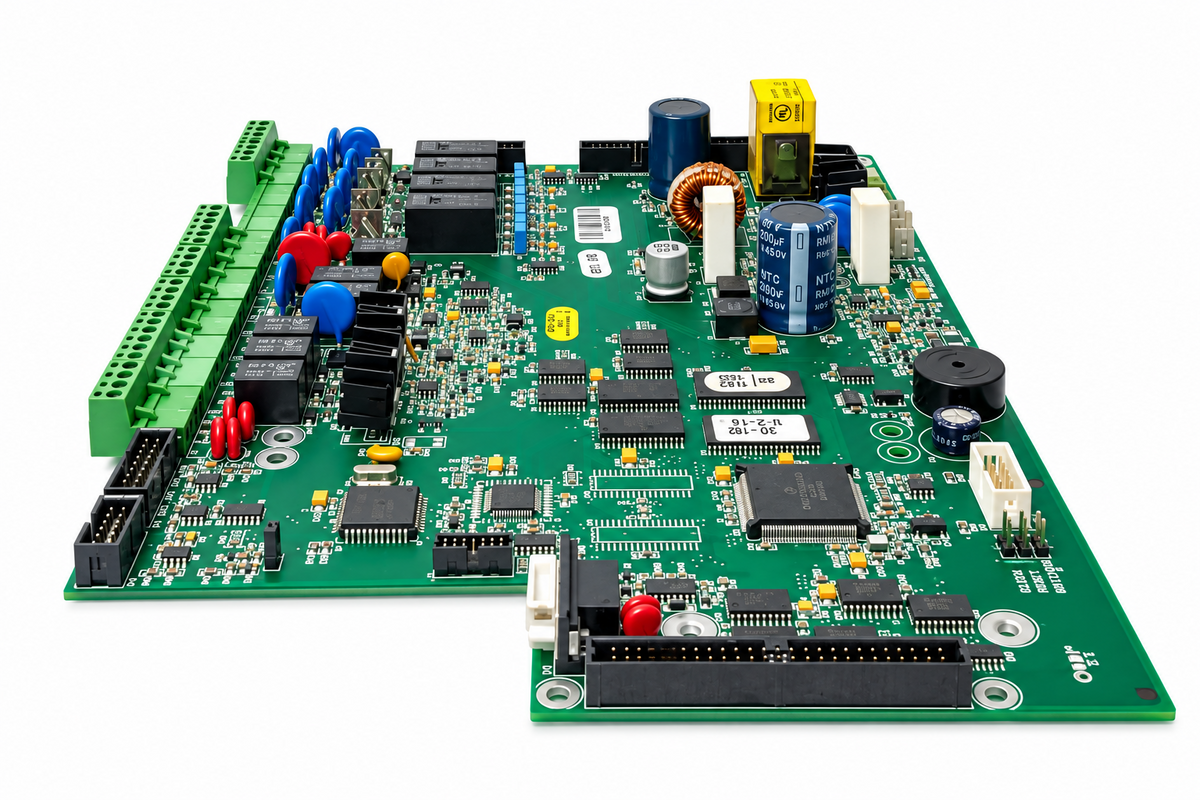

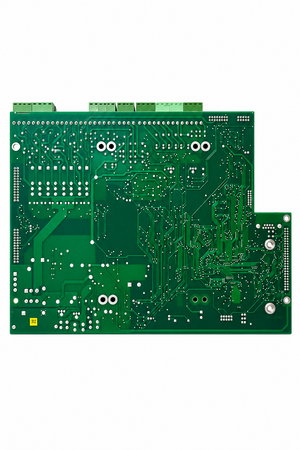

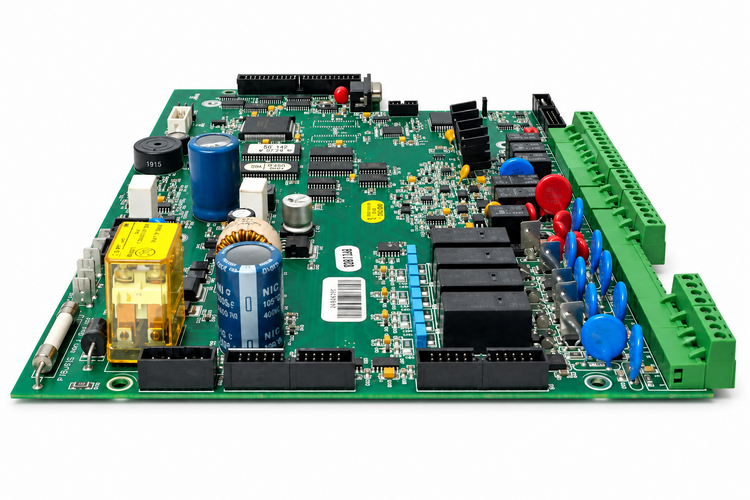

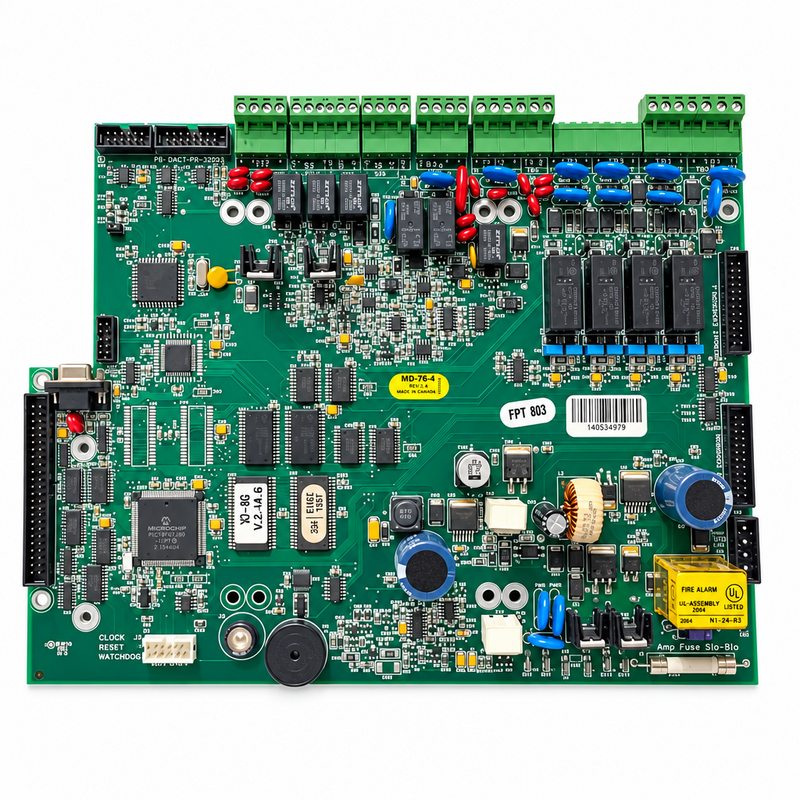

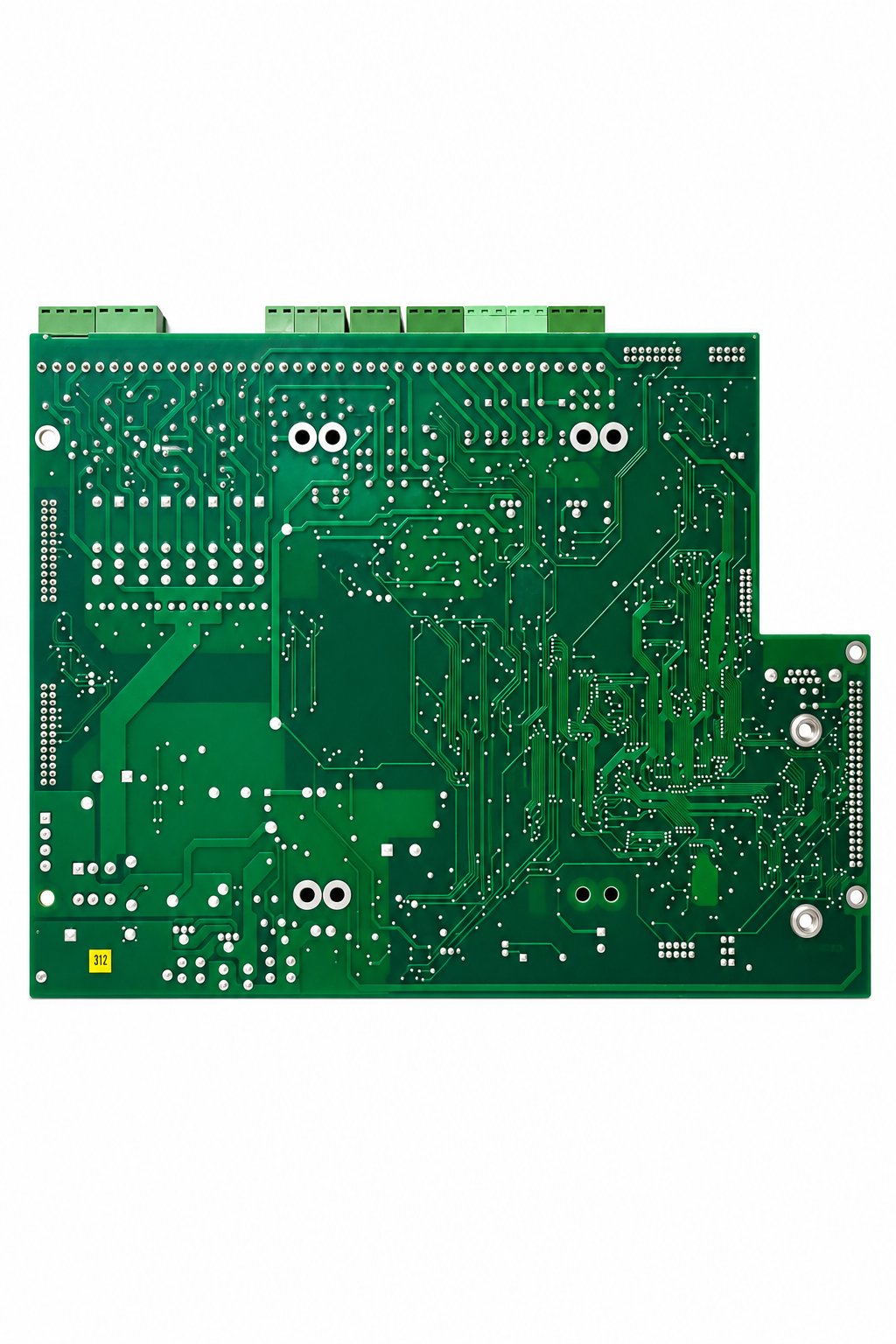

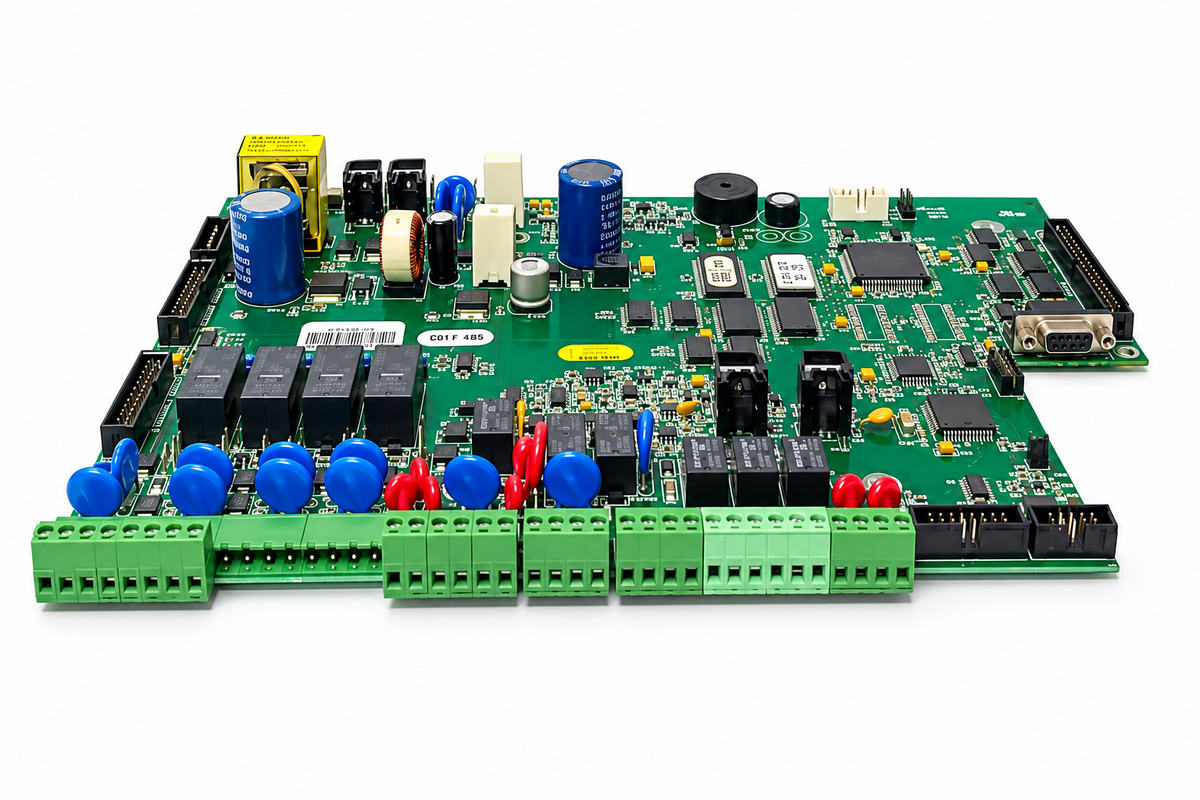

Mircom MD-764 is a main fire alarm control board designed for use within compatible Mircom FX-2000 Series fire alarm control panels. It provides central system connections for hardwire circuit modules, addressable loop controllers, display hardware, batteries, and compatible communication accessories.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mircom |
| Category | Fire Alarm Systems |
| Part Number | MD-764 |
| Subcategory | Fire Alarm Control Boards |
| Product Type | Main Fire Alarm Control Board |
| Compatible Series | Mircom FX-2000 Series |
| Installation | Main Chassis |
| System Voltage | 24VDC |
| Rated Current | 9.5 A |
| Loop Controller Compatibility | ALC-198S, ALC-396S, ALC-H16 |
| Accessory Compatibility | PR-300, UDACT-300A |
| Communication Interface | RS-232C |
| Battery Connection | 24VDC |
| Fuse | 20 A Slow-Blow, Non-Replaceable |
| Weight | 3 lb (1.36 kg) |
Information About MD-764
The MD-764 is a main fire alarm board used as part of the main chassis in compatible Mircom FX-2000 Series systems. The board provides connections for conventional hardwire circuit adder modules and compatible ALC addressable loop controllers. It also incorporates interfaces for the display module, adder-module power, RS-232 communication, battery connection, and optional PR-300 or UDACT-300A hardware. Its modular architecture supports centralized control and interconnection of multiple components within an expandable fire alarm system.
Key Features:
- Main Control Board: Provides central control and interconnection functions within compatible Mircom FX-2000 fire alarm systems.
- FX-2000 Compatibility: Designed as part of the main chassis architecture used by compatible FX-2000 Series fire alarm control panels.
- Adder Module Connections: Provides dedicated interfaces for compatible conventional hardwire circuit adder modules.
- Addressable Loop Support: Connects with compatible ALC-198S, ALC-396S, and ALC-H16 loop controller modules.
- Communication Interface: Includes an RS-232C connection for compatible printer or CRT monitor equipment.
- Battery Connection: Provides dedicated terminals for connection to the system's 24VDC battery supply.
- Display Interface: Includes a dedicated connection for the compatible fire alarm system display module.
- Accessory Integration: Provides connectivity for compatible PR-300 or UDACT-300A accessory modules.
The MD-764 delivers the reliability and precision required for centralized control and module integration in compatible Mircom fire alarm systems.
