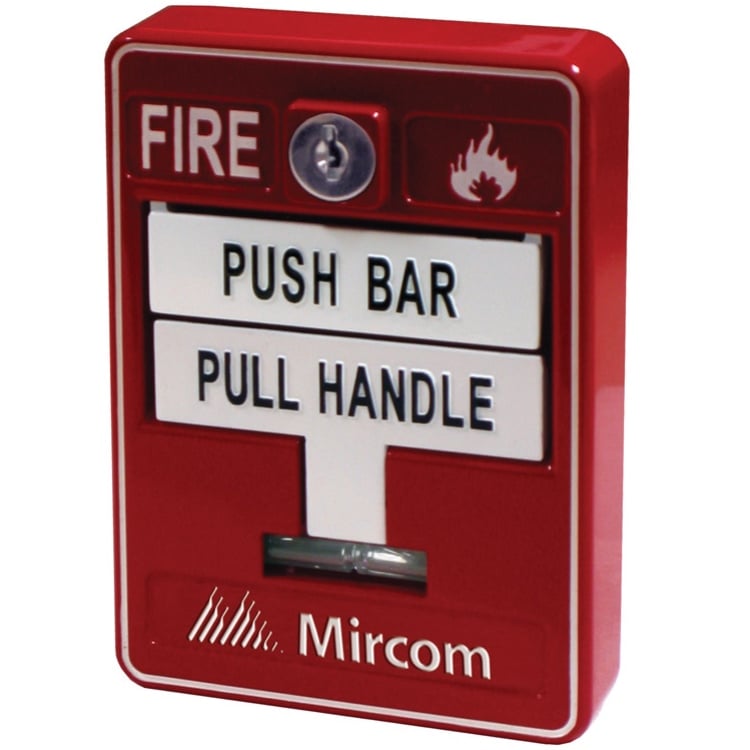

Mircom MS-710APU Intelligent Addressable Dual-Action Manual Fire Alarm Pull Station
- Regular price
- $275.00
- Sale price
- $275.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MS-710APU
Description
The Mircom MS-710APU is an intelligent addressable dual-action manual pull station designed for emergency fire alarm activation in commercial, institutional, and industrial buildings. Mircom part number MS-710APU features a durable die-cast metal housing, an integrated intelligent addressable module, and compatibility with Advanced Protocol (AP) and CLIP communication modes. Its push-bar and pull-handle mechanism provides deliberate alarm activation while supporting individual device identification within compatible fire alarm systems.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|
Brand |
Mircom |
|
Category |
Fire Alarm & Life Safety |
|
Part Number |
MS-710APU |
|
Subcategory |
Addressable Manual Pull Stations |
|
Series |
MS-700 Series |
|
Product Type |
Intelligent Addressable Manual Pull Station |
|
Activation Type |
Dual-Action, Push Bar / Pull Handle |
|
Communication Protocols |
Advanced Protocol (AP) / CLIP |
|
Addressing Range (AP) |
01–159 |
|
Addressing Range (CLIP) |
01–99 |
|
Address Configuration |
Rotary Decimal Switches |
|
Operating Voltage |
15–32 VDC |
|
Addressable Module |
Permanently Attached Intelligent Module |
|
Reset Method |
Key-Operated |
|
Housing Material |
Die-Cast Metal |
|
Finish |
Red Enamel |
|
Mounting Type |
Single-Gang Backbox / Surface Mount with Compatible Backbox |
|
Compatible Backboxes |
Standard Single-Gang, Mircom BB-700, BB-700WP |
|
Maximum Activation Force |
5 lb |
|
Primary Application |
Addressable Fire Alarm Initiation |
|
Weight |
1.39 lb |
Information About MS-710APU
The MS-710APU is part of Mircom's MS-700 Series of manual fire alarm stations, designed for integration with compatible intelligent addressable fire alarm control panels. Its red enamel-finished die-cast metal construction incorporates a permanently attached addressable module and rotary decimal switches for direct device address configuration. The station supports address settings from 01 to 159 in Advanced Protocol mode and 01 to 99 in CLIP mode, allowing integration with compatible addressable signaling line circuits. Designed for indoor installations using standard single-gang electrical boxes or Mircom BB-700 backboxes, the unit also supports installation with the BB-700WP weatherproof backbox where appropriate.
Key Features:
-
Intelligent Addressable Operation: Provides individually identifiable manual alarm activation within compatible addressable fire alarm systems.
-
Dual-Action Activation: Requires pushing the upper bar before pulling the handle to initiate an alarm.
-
Advanced Protocol Compatibility: Supports AP communication with device addressing from 01 to 159.
-
CLIP Protocol Support: Allows operation in CLIP mode with address settings from 01 to 99.
-
Integrated Addressable Module: Features a permanently attached intelligent module for communication with the fire alarm control panel.
-
Rotary Address Selection: Uses decimal rotary switches for direct device address configuration during installation.
-
Key-Operated Reset: Allows authorized personnel to restore the station after alarm activation.
-
Die-Cast Metal Construction: Provides mechanical durability for commercial and industrial fire alarm installations.
-
Red Enamel Finish: Offers clear visual identification as a manual fire alarm initiating device.
-
Low-Voltage Operation: Operates from a 15–32 VDC addressable signaling line circuit.
-
Flexible Mounting Options: Supports standard single-gang backboxes and compatible Mircom BB-700 and BB-700WP enclosures.
-
ADA Activation Force: Designed for operation with a maximum activation force of 5 lb.
The MS-710APU delivers the reliability and precision required for addressable manual fire alarm initiation, emergency signaling, and building life safety systems.
