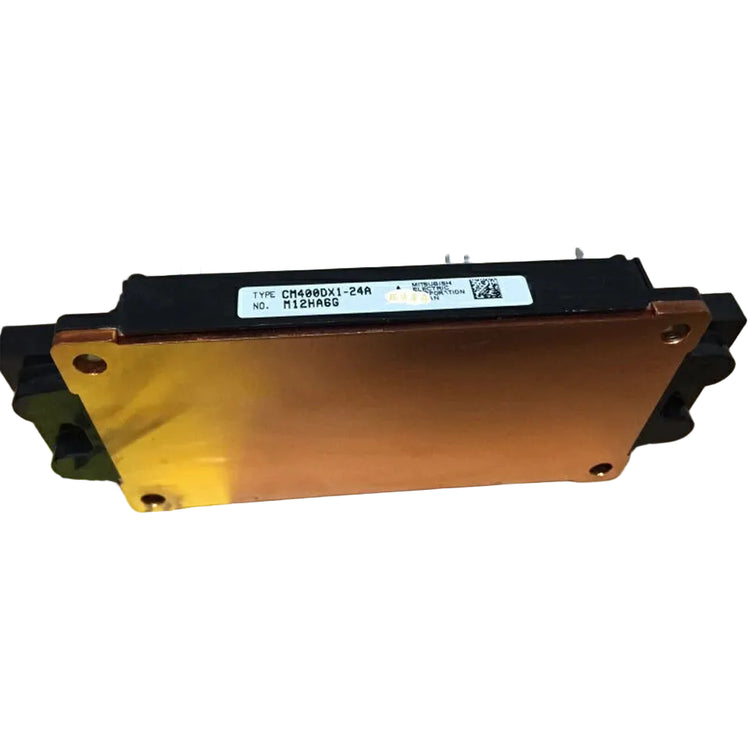

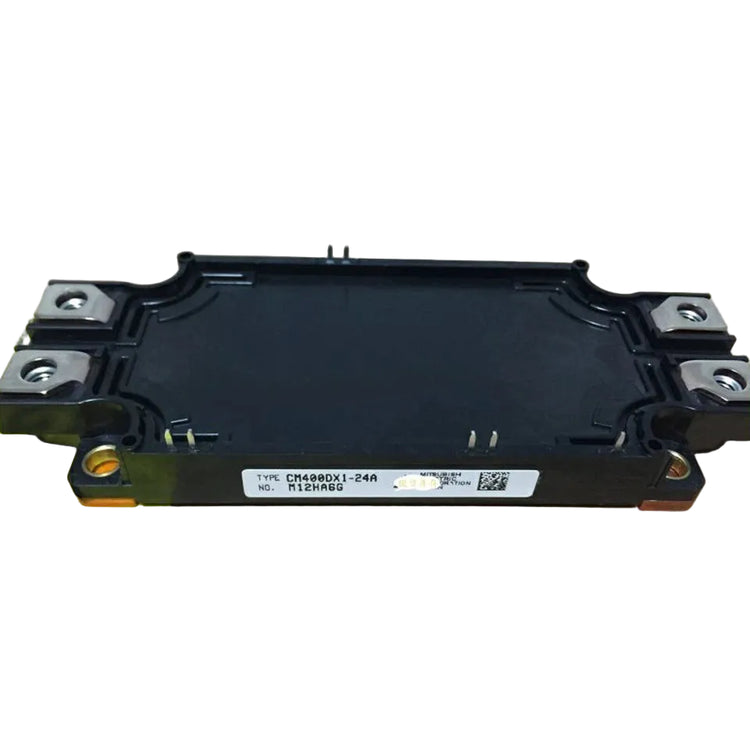

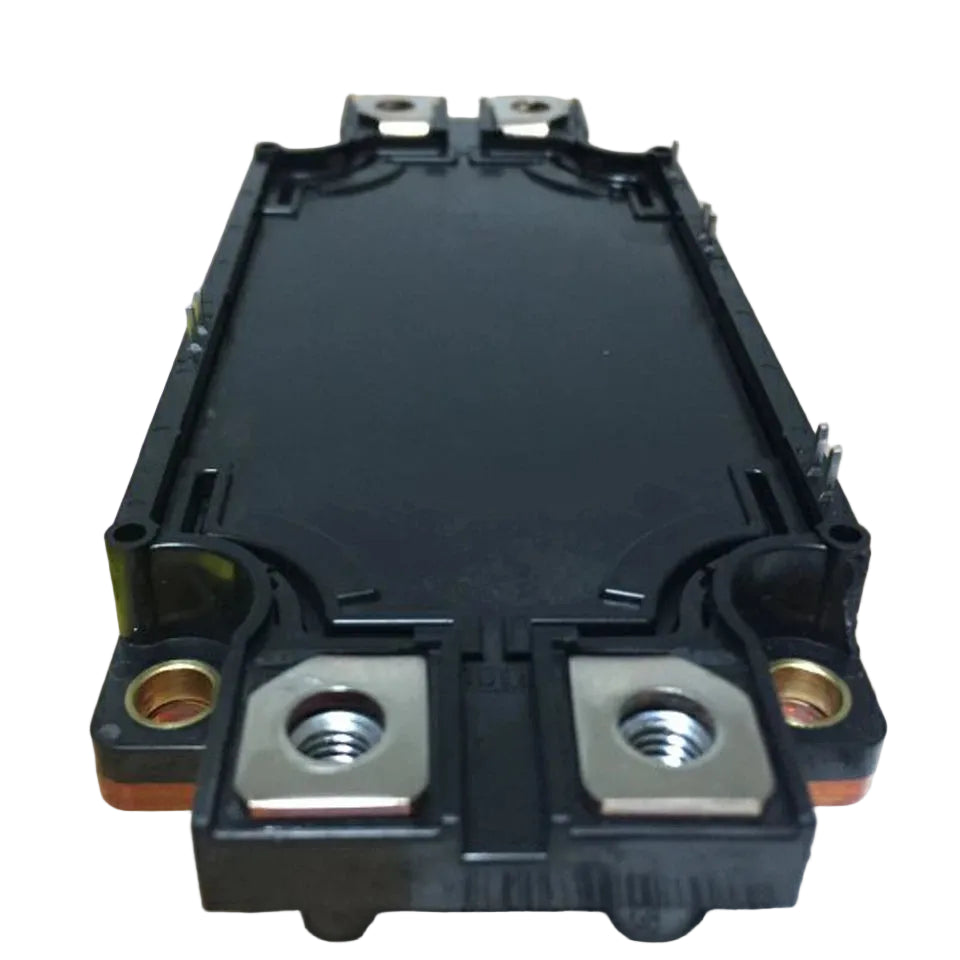

Mitsubishi CM400DX1-24A Dual IGBT Power Module
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CM400DX1-24A
Description
The Mitsubishi CM400DX1-24A is a dual IGBT power module rated for a maximum collector-emitter voltage of 1200 V and a collector current of 400 A. It performs power switching in industrial inverter circuits, including the power stages of compatible AC motor drives.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mitsubishi |
| Category | Power Semiconductors |
| Part Number | CM400DX1-24A |
| Subcategory | IGBT Modules |
| Product Type | IGBT Power Module |
| Semiconductor Technology | Insulated Gate Bipolar Transistor |
| Module Configuration | Dual IGBT / 2-in-1 |
| Maximum Collector-Emitter Voltage | 1200 V |
| Collector Current Rating | 400 A |
| Construction Type | Insulated module |
| Application | Industrial inverter and AC motor drive power stages |
| Weight | 0.28 kg |
Information About CM400DX1-24A
The CM400DX1-24A is a semiconductor module containing two IGBT elements in one package. Its insulated construction allows integration into a heatsink-mounted power assembly. Yaskawa lists this module separately from the gate driver PCB in its industrial drive spare-parts documentation. Replacement selection requires matching the electrical ratings, terminal arrangement, mounting dimensions, and original equipment requirements.
Key Features:
- IGBT Switching Technology: Uses insulated gate bipolar transistors to switch power in compatible inverter circuits.
- Voltage Rating: Supports a maximum collector-emitter voltage of 1200 V.
- Current Rating: Provides a collector current rating of 400 A.
- Dual-Element Configuration: Contains two IGBT elements within a single module.
- Insulated Construction: Provides electrical isolation between the power circuit and mounting base.
- Inverter Application: Serves as a power switching component in compatible industrial AC drives.
- Separate Gate Driver Interface: Operates with an external gate driver circuit rather than functioning as a complete drive controller.
The CM400DX1-24A delivers the reliability and precision required for power switching in compatible industrial inverter assemblies.
