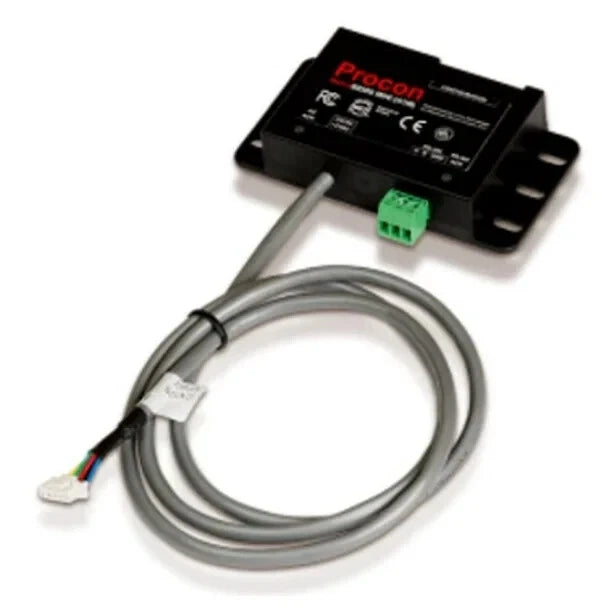

PAC-UKPRC001-CN-1 | Mitsubishi Electric BACnet & Modbus Interface
- Regular price
- $637.00
- Sale price
- $637.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PAC-UKPRC001-CN-1
Description
The Mitsubishi Electric PAC-UKPRC001-CN-1 is a BACnet and Modbus interface designed to link a single indoor Mitsubishi unit to a third-party building management system. This module enables external monitoring and control of temperature, fan speed, and operating modes for improved operational efficiency.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mitsubishi Electric |
| Category | HVAC Controls |
| Part Number | PAC-UKPRC001-CN-1 |
| Subcategory | Communication Interfaces |
| Communication Protocols | BACnet MS/TP, Modbus |
| Compatibility | CITY MULTI®, M-Series, P-Series indoor units |
| Connection Port | CN105 indoor-unit connector |
| Power Supply | 12 VDC from CN105 |
| Device Type | MelcoBEMS Mini (A1M) |
| Function | BMS integration for monitoring and control |
| Indicators | LED communication status lights |
| Application | Commercial, healthcare, educational buildings |
| Dimensions | Compact interface module |
| Data Capabilities | Logging and reporting for analysis |
| Weight | 2.45 lbs |
Information About PAC-UKPRC001-CN-1

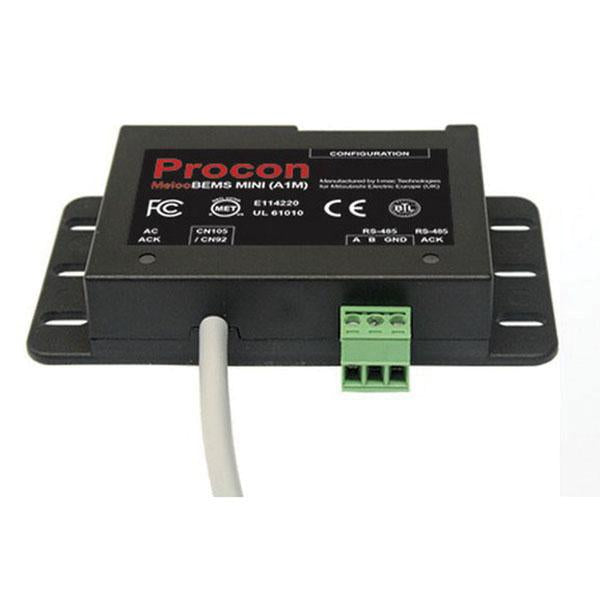

The PAC-UKPRC001-CN-1 is a Mitsubishi Electric BACnet and Modbus interface engineered to integrate a single CITY MULTI®, M-Series, or P-Series indoor unit into a building management system for enhanced control and monitoring. Designed as the MelcoBEMS Mini, it uses the CN105 connection to communicate directly with the indoor unit while drawing 12 VDC power from the same connector. The module provides clear LED indicators displaying communication status between the indoor unit, the interface, and the BACnet/Modbus networks, ensuring easy diagnostics and reliable operation. With its ability to transmit operational data, support remote adjustments, and streamline system integration, it helps improve energy efficiency and simplifies long-term HVAC management.
Key Features:
- BACnet & Modbus Integration: Enables third-party BMS platforms to control and monitor a Mitsubishi indoor unit.
- MelcoBEMS Mini Architecture: Designed specifically for single-unit connectivity using the A1M interface logic.
- Direct CN105 Connection: Communicates with and draws 12 VDC power directly from the indoor unit connector.
- LED Communication Indicators: Provides clear visual status of communication between the interface, indoor unit, and BMS network.
- Supports Multiple Mitsubishi Series: Compatible with CITY MULTI®, M-Series, and P-Series indoor systems.
- Remote Control Capabilities: Allows external adjustment of temperature, fan speed, mode, and on/off functions.
- Data Logging Functionality: Supports collection of system data for performance analysis and troubleshooting.
- Enhanced Energy Efficiency: Helps optimize unit operation through BMS-based control strategies.
- Compact and Service-Friendly: Small form factor simplifies installation and maintenance tasks.
- Commercial Integration: Suitable for multi-zone BMS deployments in large facilities requiring unified HVAC oversight.
The PAC-UKPRC001-CN-1 delivers the reliability and precision required for seamless integration of Mitsubishi indoor units into advanced building management systems.
