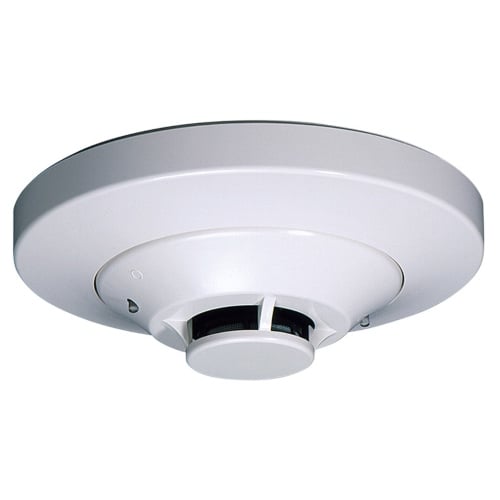

MIX-2251AP | Mircom Photoelectronic Smoke Detector with Advanced Protocol
- Regular price
- $279.00
- Sale price
- $279.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MIX-2251AP
Description
The Mircom MIX-2251AP is a low-profile intelligent photoelectronic smoke detector with integral communications. It features a unique optical sensing chamber, dual LEDs, and addressable programming with Advanced Protocol or CLIP compatibility for flexible system integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mircom |
| Category | Fire Alarm Systems |
| Part Number | MIX-2251AP |
| Subcategory | Smoke Detectors |
| Detection Method | Photoelectronic optical sensing chamber |
| Protocol Compatibility | Advanced Protocol (AP) and CLIP mode |
| Address Range | 01–159 (AP mode), 01–99 (CLIP mode) |
| Sensitivity Monitoring | Continuously monitored and programmable at control panel |
| Point ID Capability | Provides exact detector location for selective maintenance |
| LEDs | Dual LEDs for communication and alarm indication |
| Magnetic Test Feature | Supported |
| EMI Protection | Superior protection against interference |
| Environmental Protection | Sealed against dirt, insects, and back pressure |
| Standby Current | 300 μA @ 24 VDC (with LED blink every 5 sec.) |
| LED Current (max.) | 6.5 mA @ 24 VDC |
| Voltage Range | 15 to 32 VDC |
| Height | 2.0 in (51 mm) |
| Diameter | 6.1 in (155 mm) with B210LP base; 4.1 in (104 mm) with B501 base |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Operating Humidity | 10% – 93% non-condensing |
| Velocity Range | 0 – 4000 fpm (0 – 20 m/sec), suitable for ducts |
| Shipping Weight | 5.2 oz. (147 g) |
| Dimensions | 2.00 × 4.10 × 4.10 in |
Information About MIX-2251AP
The MIX-2251AP is part of Mircom’s Advanced Protocol intelligent detector series, providing precise addressability and faster system response. Using a photoelectronic optical chamber, it detects smoke from a broad range of combustion sources while minimizing nuisance alarms. Its Advanced Protocol communication supports up to 318 devices per SLC circuit, while backward compatibility allows operation in CLIP mode for legacy systems. With features such as dual LED indication, magnetic testing, and chamber contamination reporting, it enhances both operational reliability and maintenance efficiency.
Key Features:
- Advanced detection technology: Photoelectronic optical chamber identifies smoke across multiple fire types.
- High system capacity: Supports up to 318 devices per SLC circuit with Advanced Protocol.
- Backward compatibility: Operates in both Advanced Protocol and CLIP mode for flexible system use.
- Addressable configuration: Rotary switches allow direct-dial entry of unique addresses.
- Real-time sensitivity monitoring: Detector sensitivity is continuously tracked and programmable at the control panel.
- Dual LED indicators: Provide clear communication and alarm status, with steady activation during alarm conditions.
- Maintenance efficiency: Point ID capability allows identification of exact detectors for service when contamination is detected.
- Environmental protection: Unit is sealed against dust, insects, and back pressure to maintain accuracy.
- Simplified testing: Built-in magnetic test feature allows functional checks without removing the detector.
- Durable design: Compact 2-inch profile with interchangeable low-profile base options.
The MIX-2251AP delivers the reliability and precision required for intelligent fire detection and efficient maintenance in commercial and industrial applications.
