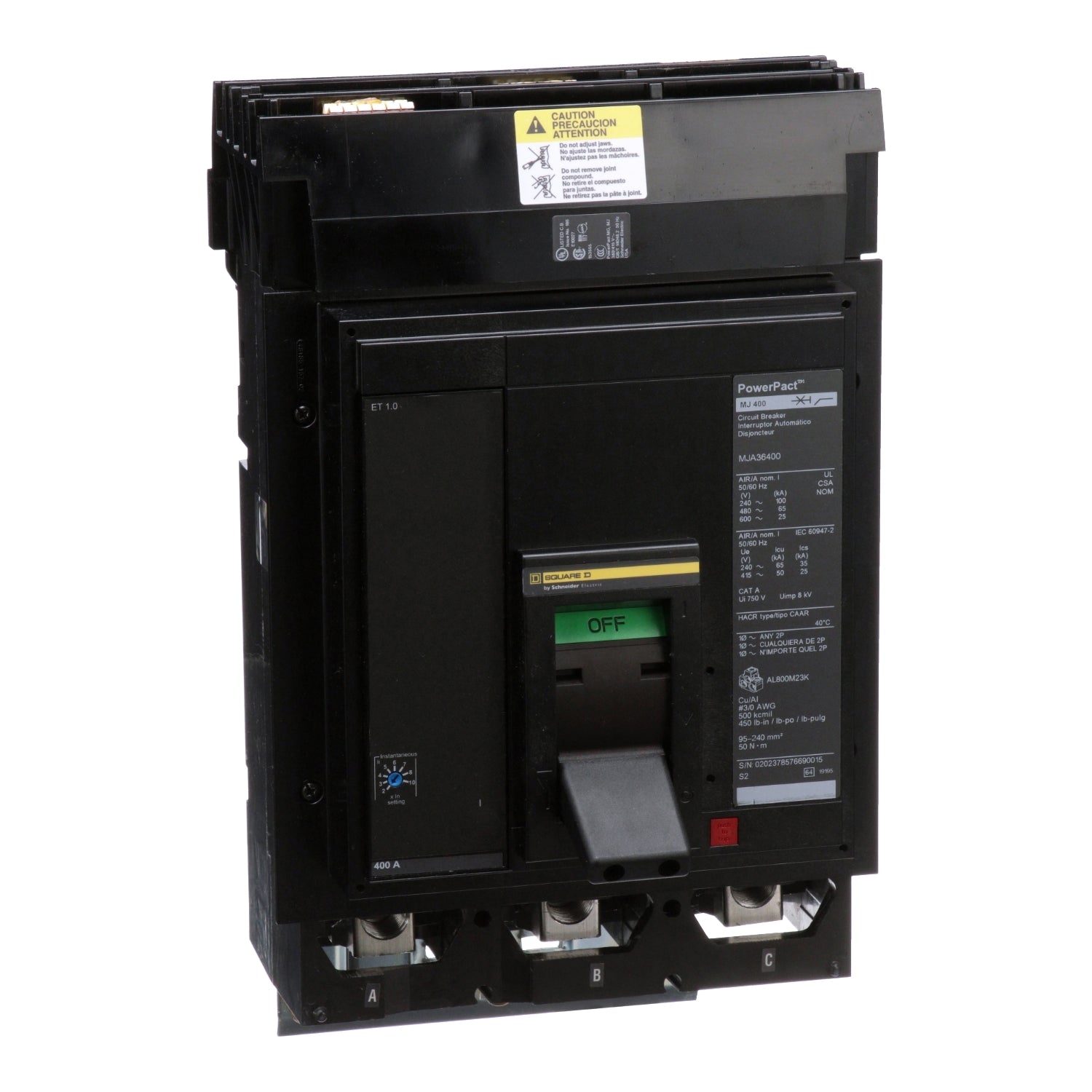

MJA36400 | Schneider Electric Circuit Breaker
- Regular price
- $4,329.00
- Sale price
- $4,329.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MJA36400
Description
The MJA36400 is a PowerPacT M-Frame circuit breaker designed to protect electrical systems from overloads and short circuits. It features a 400A current rating, operates at 600VAC, and has an interrupting rating of 25kA. This three-pole circuit breaker includes an ET 1.0 electronic trip unit, offering fixed long-time protection.
Technical Specifications
|
Part # |
MJA36400 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
400 A |
|
Number of Poles |
3P |
|
Control Type |
Operating handle |
|
Breaking capacity code |
J |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz UL 489 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Electronic, basic, ET 1.0 |
|
Magnetic tripping current |
800…4000 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Trip unit name |
ET 1.0 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
3 x AWG 3/0...3 x 500 kcmil aluminium/copper |
|
Local signalling |
1 trip indicator (green) |
|
Mounting mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Terminal identifier |
AL800M23K |
|
Long time pick-up adjustment range |
300...800 A |
|
Mounting Height |
9 in (228.60 mm) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Color |
Black |
|
Height |
12.86 in (326.64 mm) |
|
Width |
8.27 in (210.06 mm) |
|
Depth |
8.05 in (204.47 mm) |
|
Net Weight |
29 lb(US) (13.15 kg) |
|
Quantity per Set |
1 |
|
Circuit breaker application |
HACR rated |
Information About MJA36400
The MJA36400 - Circuit Breaker, PowerPacT M, 400A, 3 Pole, 600VAC, 25kA, I-Line, ET 1.0, 80%, ABC is a specialized electrical component designed for protecting electrical systems from damage due to overloads and short circuits. This particular model belongs to the PowerPacT M-Frame series, known for its robust and reliable performance in various industrial and commercial applications.
The circuit breaker features a fixed long-time electronic trip unit designated as ET 1.0, providing precise and dependable protection. This unit does not have the interchangeable functionality that some other models might offer but ensures consistent performance with its integrated electronic trip mechanism. The device also includes a manual trip function via a push-to-trip button located on the cover, enabling manual intervention when necessary.
PowerPacT M-Frame circuit breakers are versatile in their configuration, available in both 2 and 3-pole unit mount or I-Line construction. The MJA36400 model specifically is a 3-pole unit with I-Line terminations on the line side, facilitating straightforward integration into existing systems. The load side features mechanical lugs, ensuring secure and reliable connections.
