Product Description P/N: MKD041B-144-KP1-KN
Description
Technical Specifications
|
Part # |
MKD041B-144-KP1-KN |
|
Category |
Servo Products |
|
Subcategory |
Servo Motor |
|
Motor Size |
041 Motor Size |
|
Motor Length |
Motor Length B |
|
Windings Code |
144 Winding Code |
|
Motor Encoder |
Resolver Feedback with Integrated Multiturn Absolute Encoder |
|
Driven Shaft |
Shaft Key Per DIN 6885 (With Shaft Seal Ring) |
|
Holding Brake |
Holding Brake |
|
Output Direction Power Connection |
Terminal Box |
|
Housing Design |
Standard Housing |
Information About MKD041B-144-KP1-KN

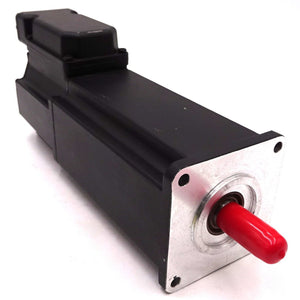

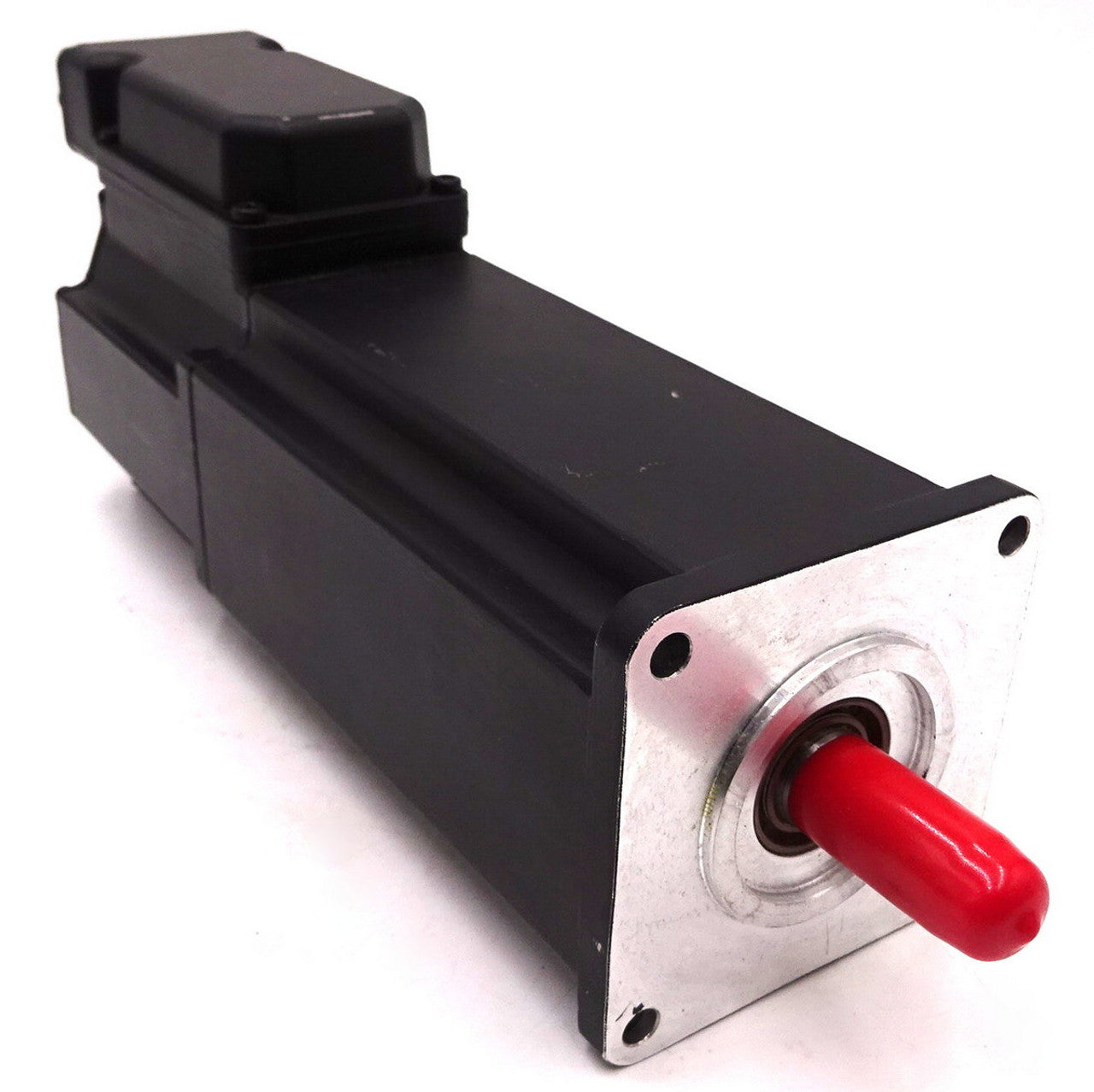

The MKD041B-144-KP1-KN is a digital AC synchronous servo motor within the MKD Series, specifically designed for industrial applications requiring precise and reliable motion control. Classified under the Servo Products category, it serves a broad range of automation tasks in manufacturing, assembly, and processing environments where exact positioning and control are critical.
This motor features a 041 motor size, which is optimized for applications requiring compact motor dimensions without sacrificing power and control precision. The motor length is designated as "Motor Length B," indicating that it is part of a series of motors with different lengths to suit various space and torque requirements in automation systems. The versatility provided by the different motor lengths allows the MKD041B-144-KP1-KN to be utilized in environments with space constraints while maintaining effective power delivery.
The winding code for this model is 144, which refers to the motor’s specific coil configuration and its electrical characteristics. This winding setup allows the motor to deliver efficient performance in terms of torque and speed across a range of operating conditions. The motor’s windings are optimized for integration into industrial automation systems where energy efficiency and consistent performance are required.
One of the key technical features of the MKD041B-144-KP1-KN is its motor encoder, which includes resolver feedback with an integrated multiturn absolute encoder. The resolver feedback provides highly accurate position tracking, which is essential for precise motion control in automated systems. The integrated multiturn absolute encoder further enhances this functionality by allowing the motor to retain position information even after a power loss, eliminating the need for re-homing or re-referencing upon system restart. This feature is particularly valuable in automation processes where maintaining position accuracy is crucial, such as in robotics or CNC machinery.
