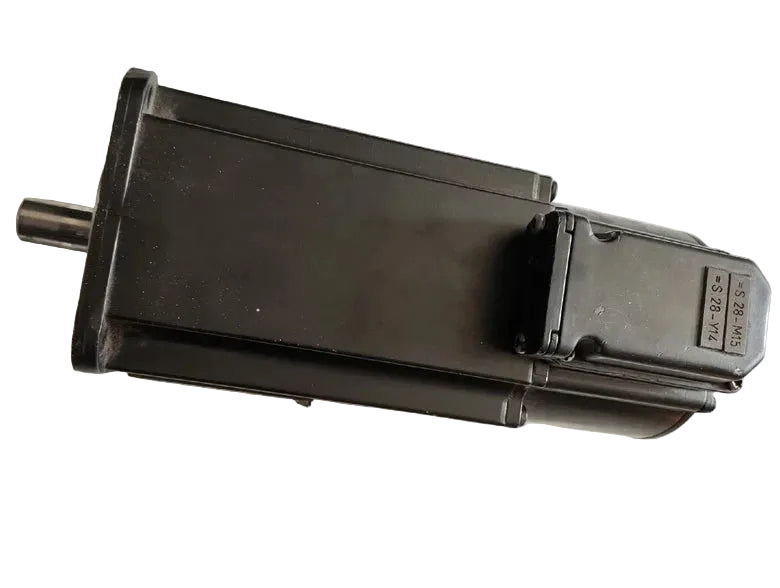

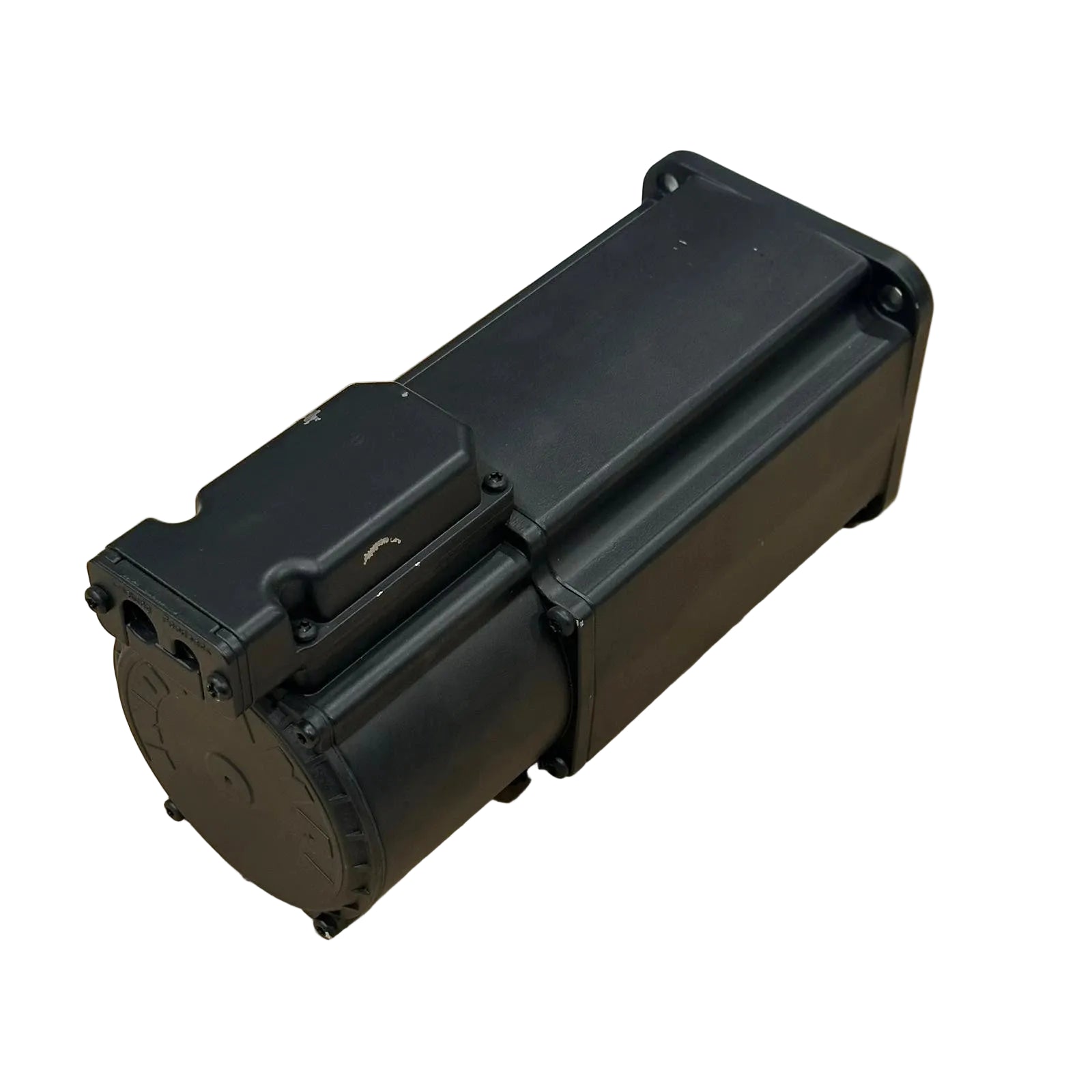

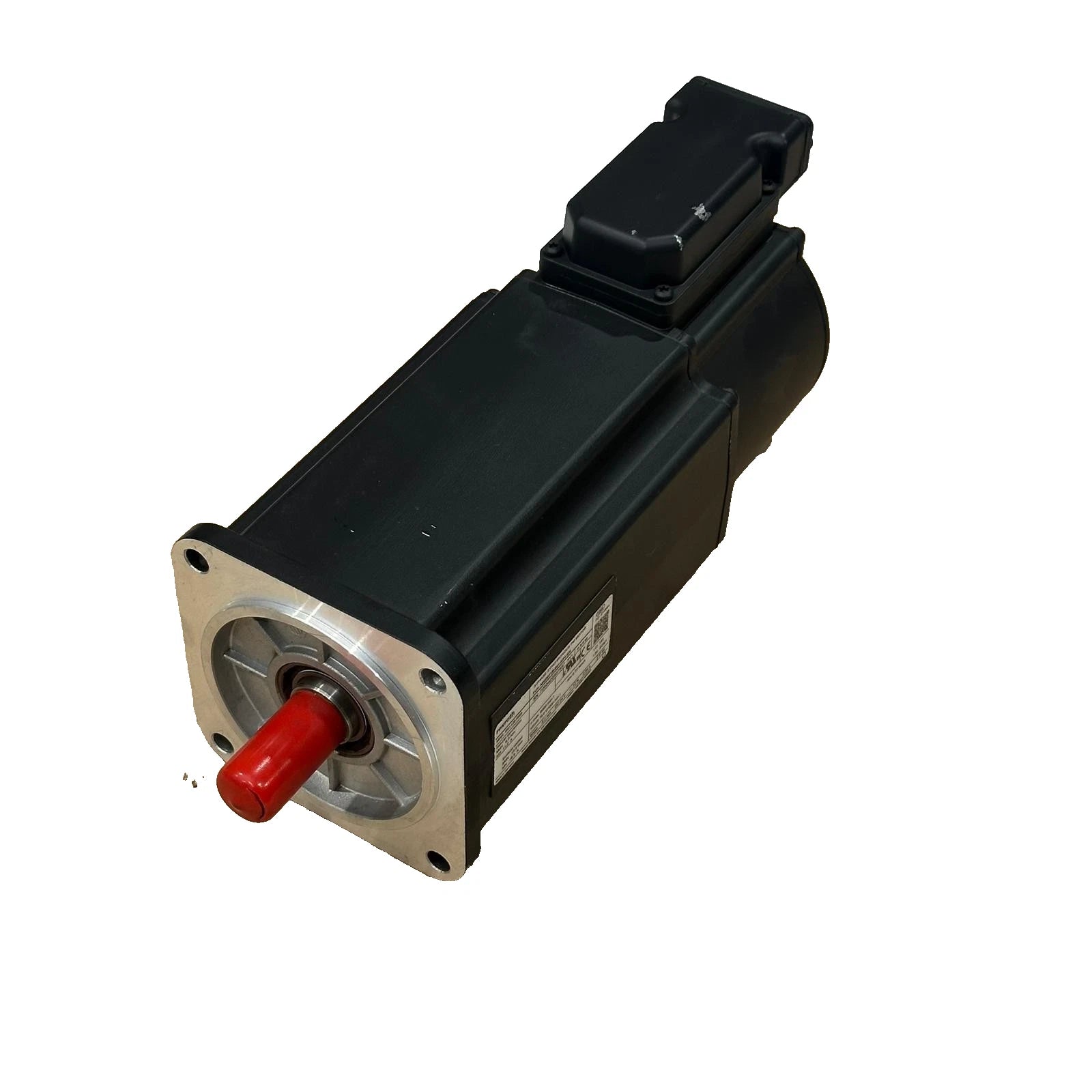

MKD071B-061-KP1-KN | Bosch Rexroth MKD Series 600 V Servo Motor with Absolute Encoder
- Regular price
- $8,179.00
- Sale price
- $8,179.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MKD071B-061-KP1-KN
Description
The Bosch Rexroth MKD071B-061-KP1-KN servo motor is a three-phase permanent magnet synchronous motor designed for precise torque and speed control in industrial motion systems. It delivers up to 8.0 Nm continuous torque at standstill with natural convection cooling and supports high dynamic performance up to 6000 RPM.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Industrial Automation |
| Part Number | MKD071B-061-KP1-KN |
| Subcategory | Servo Motors |
| Product Type | Servo Motor |
| Motor Series | MKD |
| Motor Type | Permanent Magnet Synchronous |
| Nominal Voltage | 600 V |
| Nominal Speed | 6000 RPM |
| Continuous Torque at Standstill | 8.0 Nm |
| Theoretical Maximum Torque | 32 Nm |
| Continuous Current (Natural Convection) | 11.2 A |
| Continuous Current (Surface Cooling) | 16.8 A |
| Holding Brake | Integrated |
| Holding Brake Torque | 5 Nm |
| Brake Voltage | 24 VDC ±10% |
| Feedback System | Resolver Feedback with Absolute Encoder |
| Position Detection | Absolute (>4096 Revolutions) |
| Shaft Design | Shaft with Keyway |
| Shaft Seal | Yes |
| Centering Diameter | 95 mm |
| Flange Size | 115 mm |
| Motor Length | B |
| Connection Type | Connection Box |
| Rotor Moment of Inertia | 8.7 × 10⁻⁴ kg·m² |
| Housing Coating | Prime Coat Black (RAL 9005) |
| Protection Rating | IP65 |
| Storage Temperature Range | -20 to +80 °C |
| Weight | 18 lb |
Information About MKD071B-061-KP1-KN
The MKD071B-061-KP1-KN is part of the Bosch Rexroth MKD series of synchronous servo motors, developed for demanding automation and machine tool applications. It features a compact motor length B design with an IP65-rated housing and corrosion-resistant black prime coating for industrial environments. The motor includes resolver-based feedback with integrated absolute position detection exceeding 4096 revolutions, enabling precise closed-loop control without homing. Designed for compatibility with Rexroth servo drives, it supports both natural and surface cooling to accommodate varying torque and current requirements.
Key Features:
- Permanent Magnet Synchronous Design: Provides high torque density and efficient dynamic response for servo applications.
- Resolver Feedback with Absolute Encoder: Ensures accurate position and speed feedback without reference runs.
- Integrated Holding Brake: Includes a 5 Nm holding brake for secure axis holding during power-off conditions.
- IP65 Protection Rating: Suitable for operation in harsh industrial environments with dust and moisture exposure.
- Dual Cooling Capability: Supports natural convection and surface cooling for flexible performance levels.
- Shaft with Keyway and Seal: Ensures reliable torque transmission and environmental protection.
- Compact MKD Series Construction: Optimized for machine tools and automation systems with limited installation space.
The MKD071B-061-KP1-KN delivers the reliability and precision required for servo-driven positioning, handling, and motion control applications in industrial automation systems.
