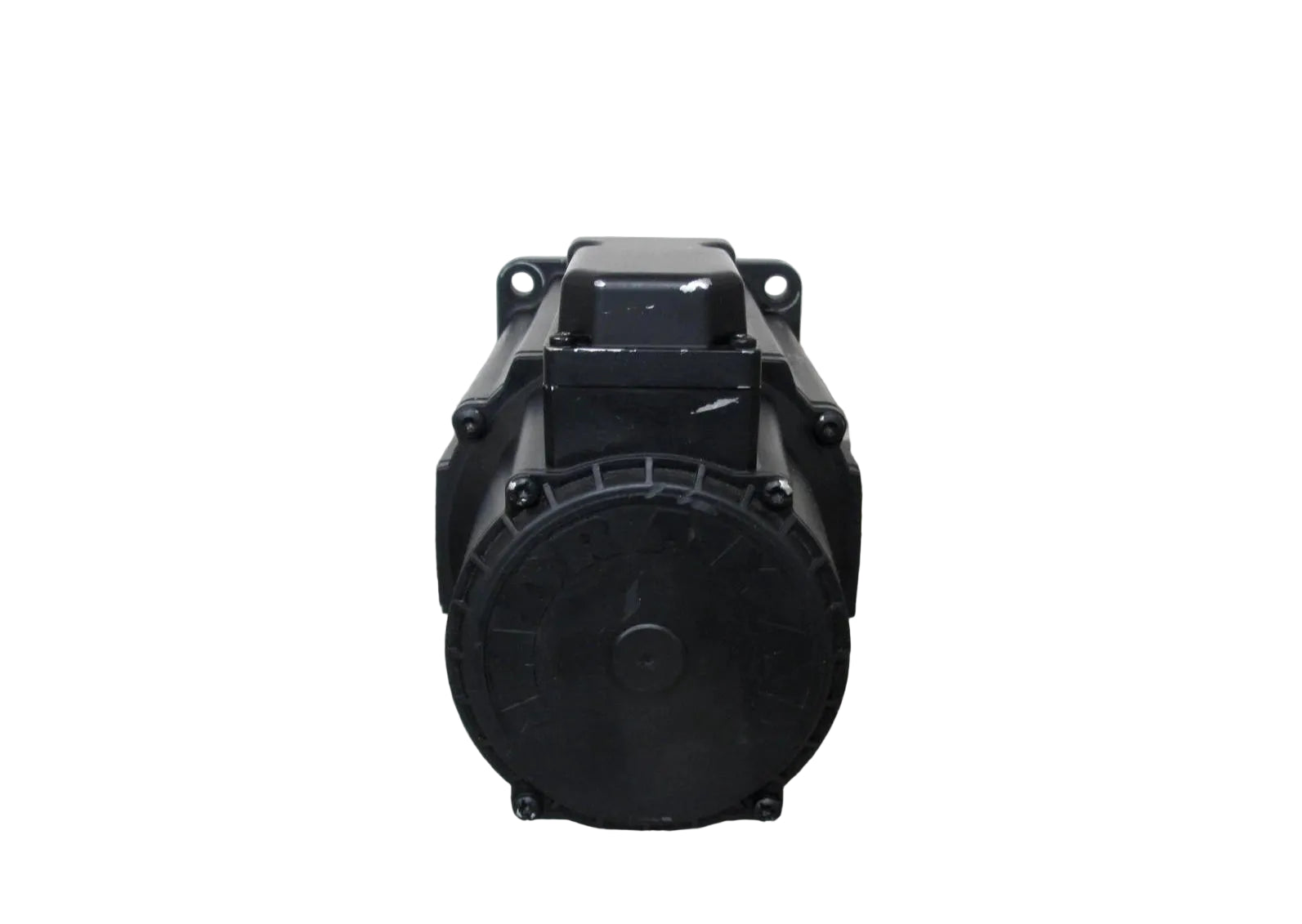

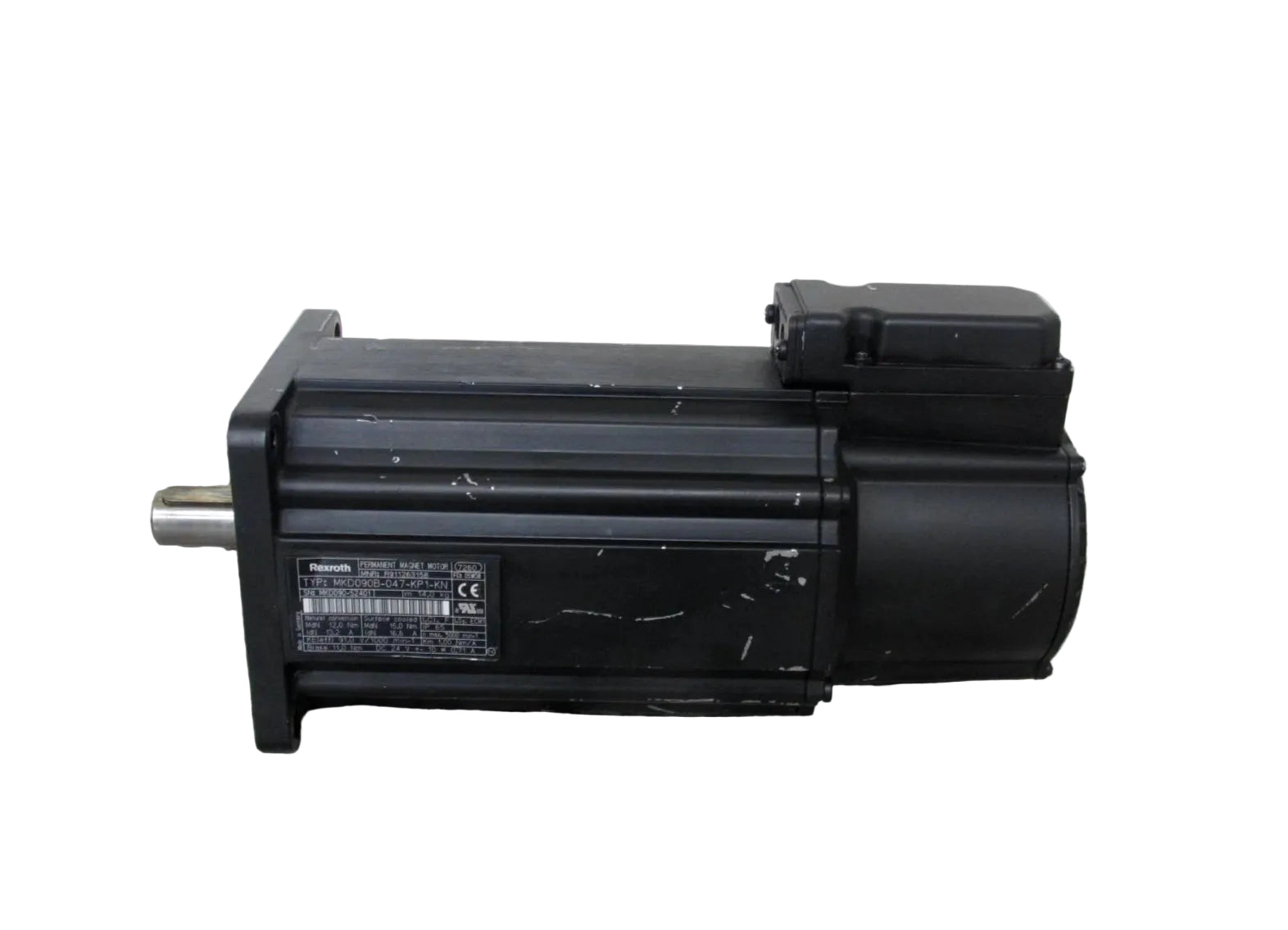

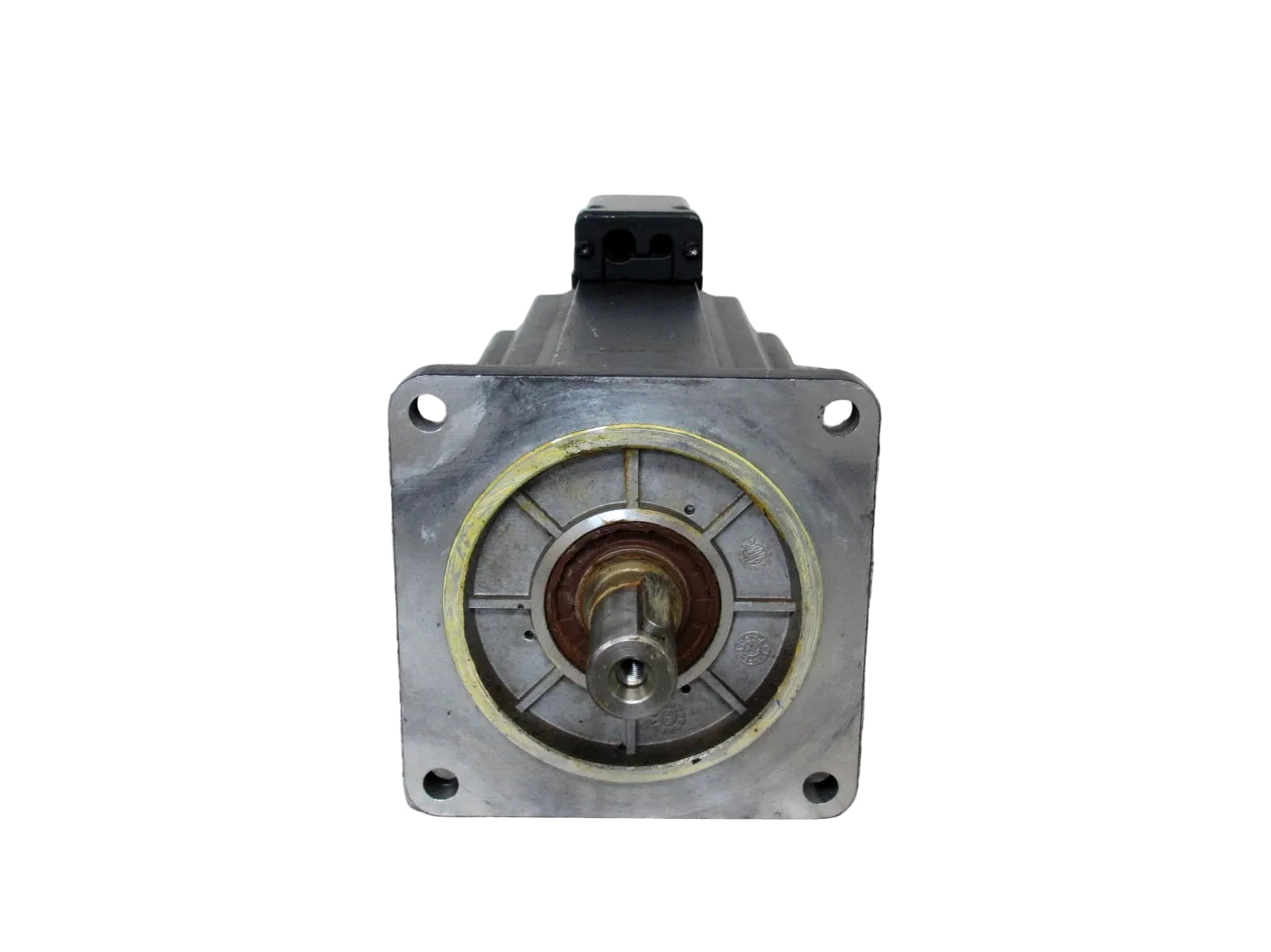

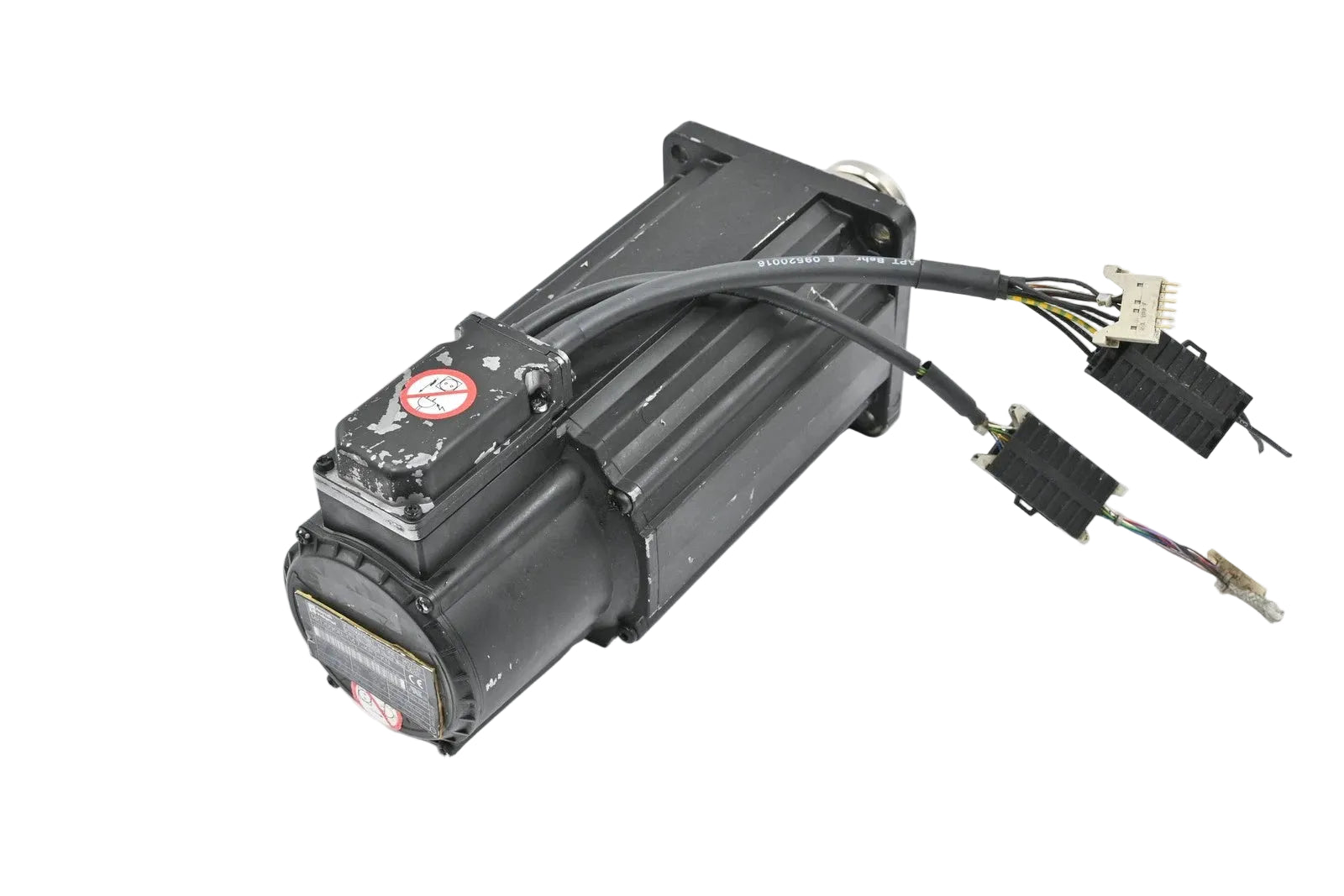

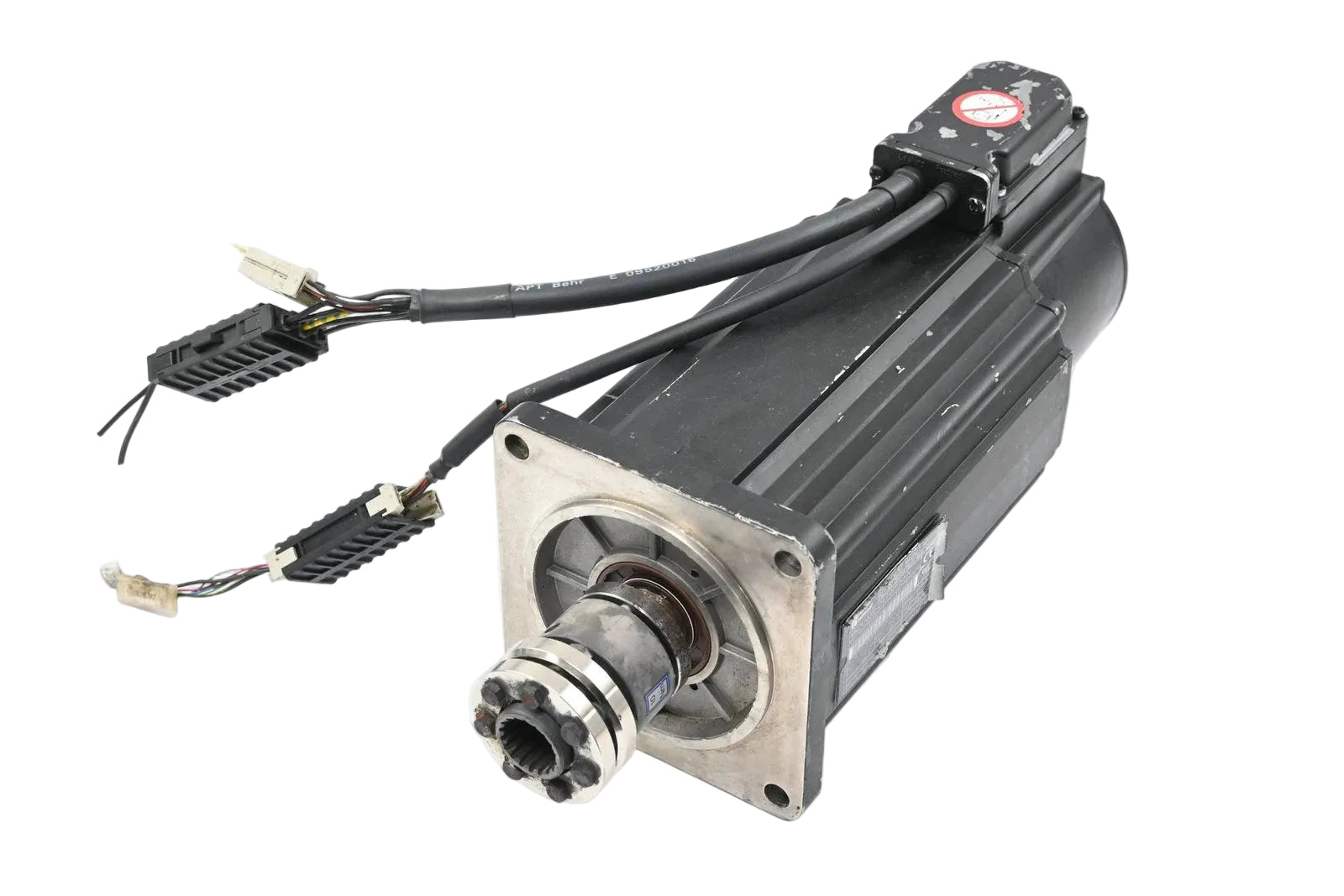

MKD090B-047-KP1-KN | Bosch Rexroth MKD Series 090 Servo Motor with Absolute Encoder
- Regular price
- $4,357.00
- Sale price
- $4,357.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MKD090B-047-KP1-KN
Description
The Bosch Rexroth MKD090B-047-KP1-KN servo motor is a three-phase permanent magnet synchronous motor designed for precise torque and speed control in industrial motion systems. It delivers up to 12.0 Nm continuous torque at standstill and supports high dynamic operation up to 4500 RPM.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Industrial Automation |
| Part Number | MKD090B-047-KP1-KN |
| Subcategory | Servo Motors |
| Product Type | Servo Motor |
| Motor Series | MKD |
| Motor Size | 090 |
| Motor Length | B |
| Winding Code | 047 |
| Nominal Speed | 4500 RPM |
| Continuous Torque at Standstill | 12.0 Nm |
| Holding Brake | Integrated |
| Holding Brake Torque | 11 Nm |
| Rated Current | 13.2 A |
| Feedback System | Resolver with Integrated Multiturn Absolute Encoder |
| Position Detection | Absolute (>4096 Revolutions) |
| Shaft Design | Shaft with Keyway (DIN 6885) |
| Shaft Seal | Yes |
| Connection Type | Terminal Box |
| Connection Direction | Side B |
| Cooling Method | Built-In Fan |
| Housing | Standard |
| Protection Category | IP65 |
| Weight | 30 lb |
Information About MKD090B-047-KP1-KN
The MKD090B-047-KP1-KN is part of the Bosch Rexroth MKD servo motor series, developed for demanding automation and machine tool applications. It features a motor size 090 with length B construction and a standard housing optimized for industrial environments. The motor includes resolver feedback with an integrated multiturn absolute encoder, enabling precise closed-loop control without reference runs. Designed for compatibility with Rexroth drive systems, it incorporates built-in fan cooling and an IP65 protection rating for reliable operation in harsh conditions.
Key Features:
- Permanent Magnet Synchronous Motor: Provides high torque density and efficient servo performance.
- Resolver Feedback with Absolute Encoder: Ensures accurate position detection exceeding 4096 revolutions.
- Integrated Holding Brake: Includes an 11 Nm holding brake for secure axis holding when powered off.
- High Continuous Torque Capability: Delivers 12.0 Nm continuous torque at standstill.
- Built-In Fan Cooling: Supports stable thermal performance during continuous and dynamic operation.
- IP65 Protection Category: Suitable for industrial environments with dust and moisture exposure.
- Shaft with Keyway and Seal: DIN 6885-compliant shaft ensures reliable torque transmission and sealing.
The MKD090B-047-KP1-KN delivers the reliability and precision required for servo-driven positioning, handling, and motion control applications in industrial automation systems.
