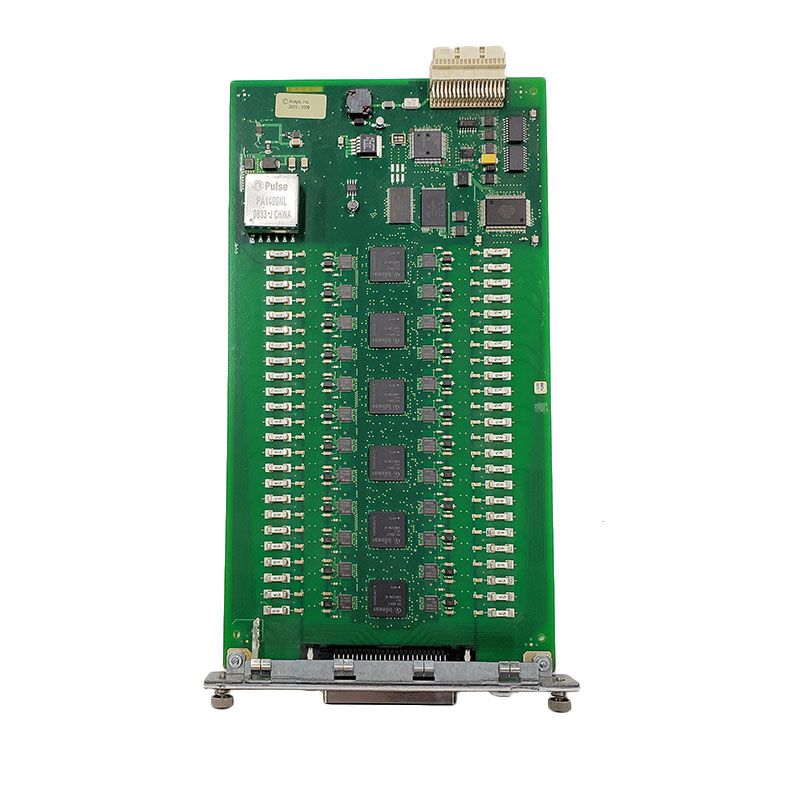

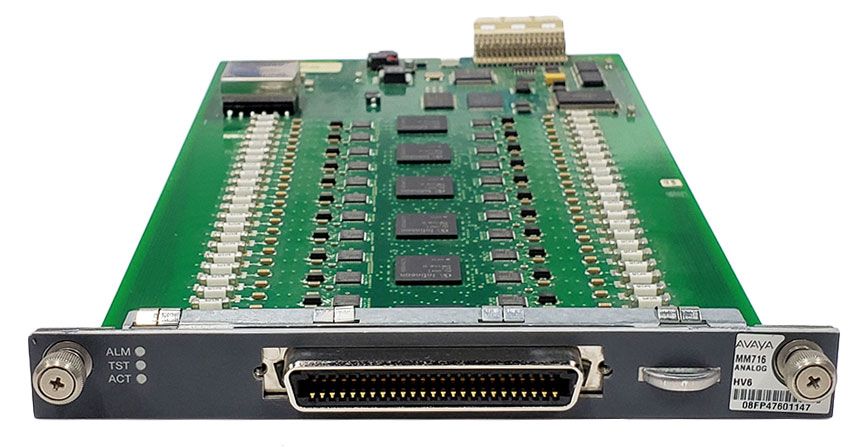

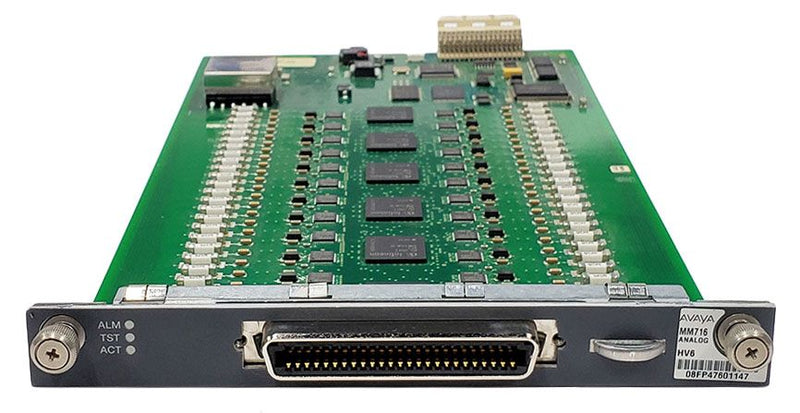

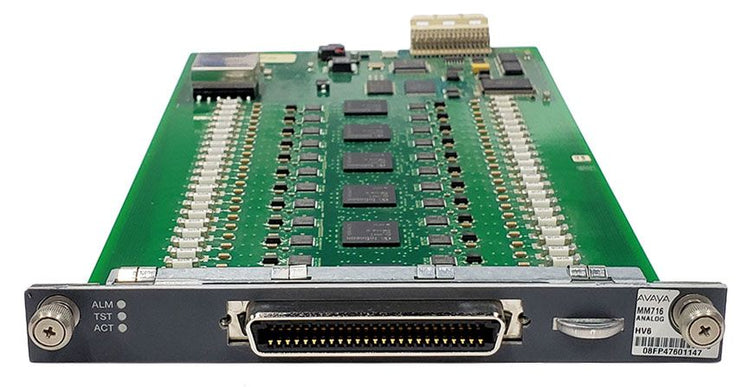

MM716 | Avaya 24-Ports Analog Media Module
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MM716
Description
The Avaya MM716 is a high-density analog media module that provides 24 analog telephone ports for integration with Avaya’s media gateways. Designed to support analog telephony needs in enterprise environments, it delivers flexible ringing, caller ID, and DID trunk capabilities within a compact internal form factor.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Avaya |
| Category |
Telephony Infrastructure
|
| Part Number | MM716 |
| Subcategory | Analog Media Modules |
| Number of Ports | 24 analog telephone ports |
| Protocol Support | Type 1 Caller ID, DID (wink/immediate-start) |
| Message Waiting Indicator | LED-based |
| Loop Length (Max) |
Up to 20,000 ft (6096 m) depending on wire gauge |
| REN Support | Up to 3 REN loads |
| Simultaneous Ringing | Yes, up to 24 ports |
| Compatibility | G350, G450, G700 Gateways |
| Communication Manager | Release 3.1 and higher |
| Firmware Compatibility | Branch Gateway 25.0.0+, 29.x.x+ |
| Form Factor | Internal |
| Port Type | Ethernet (LAN) |
| Color | Green Mist |
| Weight | 12.00 lbs (5.44 kg) |
Information About MM716
The MM716 is supported in Avaya G350, G450, and G700 Media Gateways and is compatible with Avaya Communication Manager Release 3.1 or higher, and Branch Gateway firmware version 25.0.0 or later. It provides 24 analog FXS ports, supports Type 1 Caller ID, and is equipped to handle LED message waiting indicators. The module supports wink or immediate-start DID trunks, and it can simultaneously ring up to 24 ports, generating international ring cadences and voltages. Loop lengths vary based on wire gauge, and the module supports up to three Ringer Equivalency Number (REN) loads. It features an internal form factor and Ethernet LAN port type in a Green Mist finish.
Key Features:
- 24 Analog Ports: Provides simultaneous support for 24 analog telephone devices or lines.
- Type 1 Caller ID Support: Transmits caller identification to analog endpoints.
- Message Waiting Indication: LED-based alerts supported on compatible phones.
- DID Trunking: Supports wink-start or immediate-start DID trunk configurations.
- Simultaneous Ringing: All 24 ports can ring concurrently.
- Long-Distance Loop Support: Operates up to 20,000 feet (6,096 m) on 0.65 mm wire.
- REN Load Capacity: Handles up to three ringer loads depending on wire type and loop length.
- Ring Voltage Generation: Supports international voltage and cadence standards.
- Compatible Gateways: Integrates with G350, G450, G700 media gateways.
- System Compatibility: Works with Avaya Communication Manager 3.1+ and firmware 25.0.0+.
The MM716 enables scalable analog connectivity in enterprise VoIP environments, offering legacy device support with modern Avaya systems.
