MMF-300-10 | Fire-Lite Ten-Input Addressable Monitor Module (Class A/B)
- Regular price
- $715.00
- Sale price
- $715.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: MMF-300-10
Description

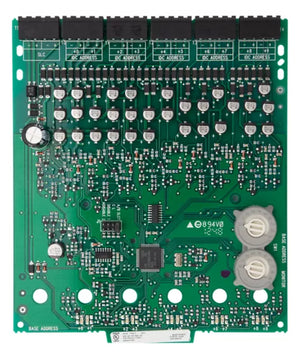

The Fire-Lite MMF-300-10 is a ten-input monitor module for intelligent fire alarm systems, providing interface to multiple normally-open contact devices on a single SLC address block. Each board presents ten supervised Class B (or five Class A) initiating device circuits with individual status indication. Designed for efficient panel integration, it simplifies wiring, addressing, and supervision across large installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms (Honeywell) |
| Category | Fire Safety |
| Part Number | MMF-300-10 |
| Subcategory | Monitor Modules |
| Normal Operating Voltage | 15–32 VDC |
| Standby Current | 3.5 mA (all addresses used) |
| Alarm Current | 55 mA (all ten LEDs ON) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10%–93% non-condensing (UL applications) |
| Inputs Supported | 10 × Class B or 5 × Class A IDCs |
| Addressing | Base address 01–150 via rotary switches; next 9 auto-assigned; up to 2 addresses disable-able |
| Max SLC Wiring Resistance | 40–50 Ω (panel-dependent) |
| Max IDC Wiring Resistance | 1500 Ω |
| Max IDC Voltage / Current | 10.2 VDC (max) / 240 µA (max) |
| Wire Gauge | 12–18 AWG |
| Dimensions | 6.8″ H × 5.8″ W × 1.25″ D |
| Mounting Options | CHS-6 chassis in BB-6F (up to 6 modules) or BB-2F (1–2 modules) |
| Indicators | Panel-controlled green LEDs per point |
| Listings & Approvals | UL S2424, ULC S2424, CSFM 7300-0075:205, FM, MEA 55-02-E |
| Weight | 0.76 lb (incl. packaging) |
Information About MMF-300-10

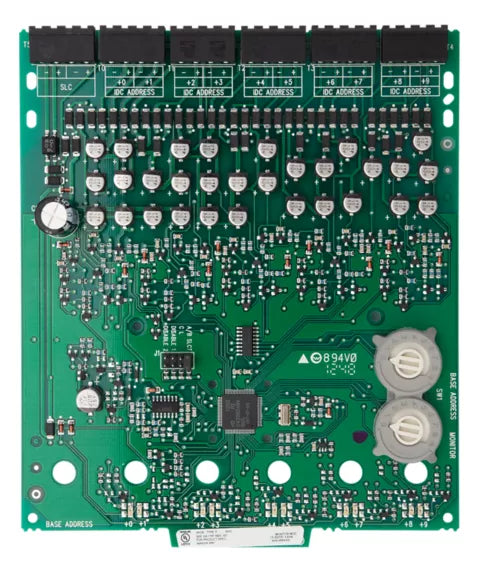

The MMF-300-10 is part of Fire-Lite’s intelligent module family and is intended for use on compatible Fire-Lite FACPs (e.g., MS-9200, MS-9600). A pair of rotary switches sets the base address (01–150); the remaining nine points auto-assign to the next higher addresses, with provisions to disable up to two unused addresses. The board supports Class B operation for ten IDCs, or Class A operation for five paired IDCs, with common SLC input and shared supervisory supply/ground. Panel-controlled green LEDs provide point status (blink/latch on/off) for fast diagnostics.
Key Features:
- Ten Inputs per Board: Monitors ten Class B IDCs or five Class A IDCs with individual supervision.
- Auto Address Block: Set one base address; next nine addresses are auto-assigned (disable up to two if unused).
- Panel Compatibility: For use with compatible Fire-Lite intelligent panels (e.g., MS-9200/MS-9600).
- Visible Point Status: Panel-controlled green LEDs for each input simplify troubleshooting.
- Flexible Mounting: Fits BB-2F/BB-6F cabinets using CHS-6 chassis; hardware included.
- Class A/B Selectable: Shipped Class B; remove shunt for Class A operation.
- Robust Ratings: Wide operating range with power-limited wiring per NEC Article 760.
- Agency Approvals: UL/ULC Listed, CSFM, FM, MEA approved.
The MMF-300-10 delivers the reliability and precision required for multi-point monitoring in intelligent fire alarm systems.
