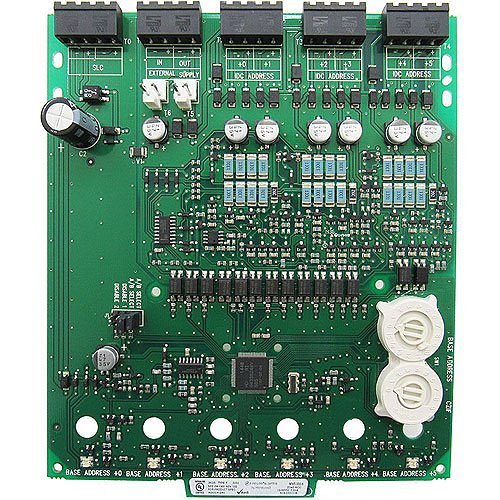

MMF-302-6 | Fire-Lite 6-Zone Conventional Detector Interface Module
- Regular price
- $539.00
- Sale price
- $539.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MMF-302-6
Description
The Fire-Lite MMF-302-6 is a six-zone interface module that connects two-wire conventional detection zones to intelligent fire alarm systems. It reports zone conditions to the control panel and supports both Class A and Class B initiating device circuits with LED status indicators.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Systems |
| Part Number | MMF-302-6 |
| Subcategory | Interface Module |
| Zones Supported | 6 Class B or 3 Class A IDC circuits |
| Communication | SLC input for all modules |
| Addressing | First module manually set; next five assigned automatically |
| Address Range | 01–154 |
| Disabling | Up to 2 unused modules can be disabled |
| Detector Compatibility | Requires two-wire compatibility-listed detectors |
| Zone Reporting | Normal, open, or alarm |
| Power Monitoring | Supervises external supply connection |
| Indicators | Panel-controlled bicolor LEDs per zone |
| Operation Modes | Class A or Class B |
| Terminals | Removable plug-in terminal blocks |
| Address Switches | Rotary type |
| Dimensions | 1.25 in D × 5.80 in W × 6.80 in H |
| Weight | 0.3 lbs |
Information About MMF-302-6
The MMF-302-6 is a Fire-Lite interface module designed to integrate two-wire conventional detector zones into intelligent fire alarm control panels. Supporting six Class B or three Class A circuits, it enables the system to monitor detector status conditions, including normal, open, or alarm. Each module connects to the SLC input and supervises both detector wiring and the external power supply to ensure reliability. With panel-controlled LED indicators, removable terminal blocks, and rotary address switches, the MMF-302-6 simplifies installation, supervision, and system management.
Key Features:
- Six-Zone Interface: Supports six Class B or three Class A IDC circuits for conventional detector integration.
- Reliable Communication: Transmits zone conditions—normal, open, or alarm—directly to the control panel.
- Intelligent Addressing: First module manually addressed; subsequent modules automatically assigned higher addresses.
- Detector Supervision: Monitors both two-wire detector circuits and the external supervisory power supply.
- Flexible Operation: Works in either Class A or Class B wiring configurations.
- LED Indicators: Panel-controlled bicolor LEDs provide clear zone status feedback.
- Installation Convenience: Removable plug-in terminal blocks simplify field wiring.
- Address Switches: Rotary address selectors enable straightforward setup.
- Address Management: Allows disabling of up to two unused modules for optimized operation.
The MMF-302-6 delivers the reliability and precision required for integrating conventional detection zones into advanced Fire-Lite intelligent fire alarm systems.
