MMO-6RF | Gamewell-FCI Velociti Multi-Mod Six Relay Output Module
- Regular price
- $649.00
- Sale price
- $649.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MMO-6RF
Description

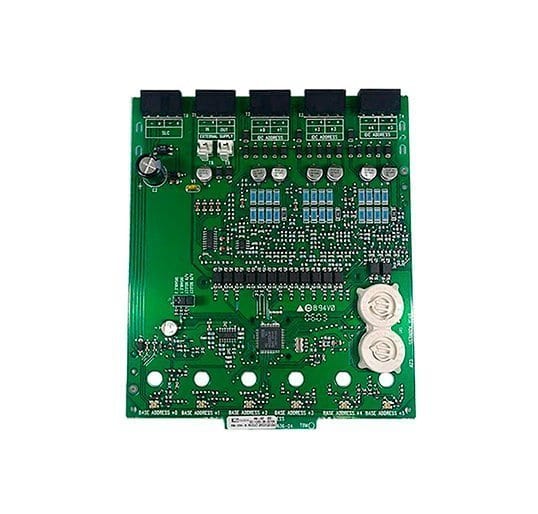

The Gamewell-FCI MMO-6RF is a Velociti® Series multi-mod relay module that provides six individually addressable Form “C” relay outputs on a single board. It is designed for use with E3 Series, S3 Series, and 7100 Series fire alarm control panels, offering reliable control for auxiliary functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | MMO-6RF |
| Subcategory | Relay Modules |
| Series | Velociti® Series |
| Relay Outputs | 6 individually addressable Form “C” relays |
| Relay Contact Ratings | Wide range of ratings (per Table 1 in spec) |
| Relay Current | 30 mA/relay pulse |
| Operating Voltage | 15–32 VDC |
| Standby Current | 1.45 mA |
| Alarm Current | 32 mA (with all six relays and LEDs active) |
| Wire Size | Accepts 12–18 AWG |
| Configuration | Jumper feature allows up to 3 relay addresses to be disabled |
| Indicators | Individual LED indicators for each relay |
| Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 10–85% non-condensing |
| Dimensions (Module) | 6.8" H × 5.8" W × 1.0" D (17.3 × 14.7 × 2.5 cm) |
| Compatibility | E3 Series, S3 Series, and 7100 Series FACP |
| Compliance | UL 864 9th Edition, UL S1913, FM 3023594, MEA FDNY 219-02-E Vol. VI, CSFM 7300-1703-0124, ISO 9001 |
| Weight | 0.5 lbs |
Information About MMO-6RF
The MMO-6RF is part of the Gamewell-FCI Velociti® Series of intelligent modules, offering six independently addressable relay outputs for control applications. Each Form “C” relay can be programmed for functions such as elevator recall, air handling unit shutdown, door holder release, or similar operations. The module communicates with addressable fire alarm panels via Velociti® protocol, ensuring fast and reliable response. Its flexible jumper configuration allows up to three relay addresses to be disabled, while individual LEDs provide status indication for each relay output. With wide-ranging relay contact ratings and multiple mounting options, the MMO-6RF is a versatile control solution for modern fire alarm systems.
Key Features:
- Six Form “C” relays: Provides six independently addressable outputs on one board, supporting a variety of control functions.
- Velociti® communication protocol: Ensures fast, intelligent communication with compatible fire alarm control panels.
- Flexible configuration: Jumper settings allow disabling of up to three relay addresses for system customization.
- Wide compatibility: Designed for integration with Gamewell-FCI E3 Series, S3 Series, and 7100 Series panels.
- High reliability: Each relay output is individually supervised, with LEDs for easy relay status identification.
- Multiple applications: Suitable for elevator recall, AHU control, door holder release, and other auxiliary system functions.
- Durable design: Accepts 12–18 AWG wire for secure connections and stable long-term installation.
- Standards compliance: UL 864 9th Edition listed and approved by UL, FM, MEA, CSFM, and ISO for code-compliant use.
- Versatile mounting options: Compatible with MBB-2 and MBB-6 backboxes for flexible installation in varying environments.
- Lightweight construction: At just 0.5 lbs, the module is easy to install while offering full relay output capacity.
The MMO-6RF delivers the reliability and precision required for intelligent relay output control in Gamewell-FCI fire alarm and life safety systems.
