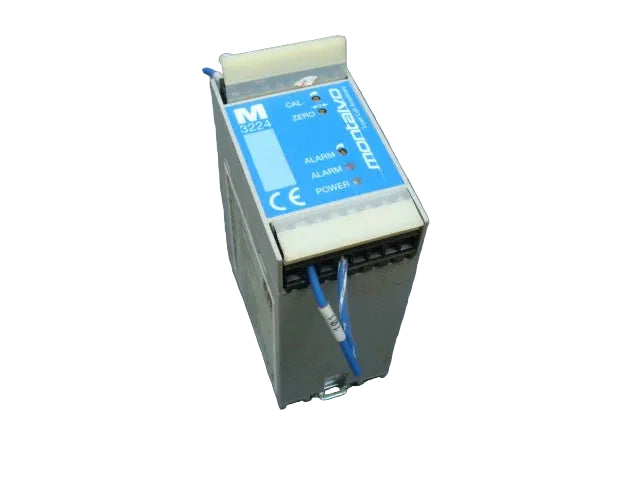

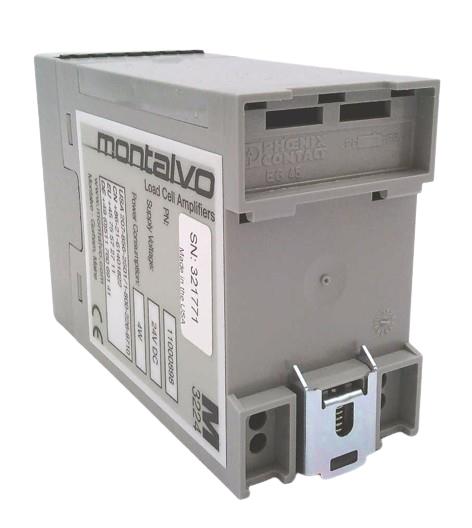

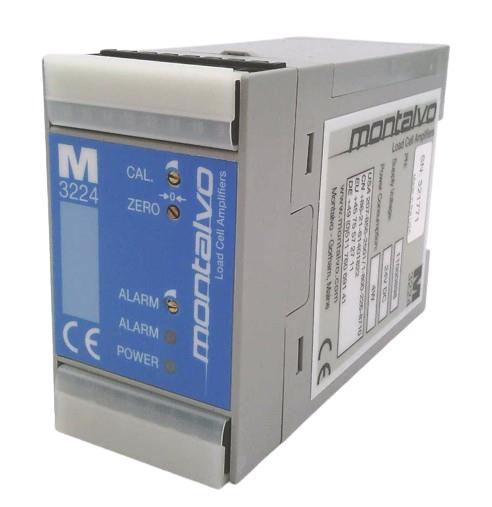

Montalvo 11000898 M-3224 Strain-Gauge Load-Cell Signal Amplifier
- Regular price
- $1,129.00
- Sale price
- $1,129.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11000898
Description
The Montalvo 11000898 is an M-3224 strain-gauge amplifier for conditioning load-cell signals in industrial measurement and tension-control systems. It provides adjustable amplification and selectable analog outputs for connection to compatible indicators and process controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Montalvo |
| Category | Sensors & Switches |
| Part Number | 11000898 |
| Subcategory | Sensor Amplifier |
| Model | M-3224 |
| Amplifier Type | Strain-gauge / load-cell amplifier |
| Supply Voltage | 24 V DC ±15% |
| Maximum Power Consumption | 3.6 VA |
| Load-Cell Input | ±250 mV DC |
| Input Impedance | 100 kΩ |
| Load-Cell Supply | ±2.5 V DC ±2% |
| Selectable Process Output | 0–20 mA; 4–20 mA; 0–10 V |
| Selectable Meter Output | 0–100 µA or 0–10 V |
| Gain Adjustment | 11–510 |
| Specified Accuracy | Better than 1% |
| Mounting Type | DIN rail |
| Connection Type | Screw terminals |
| Operating Temperature | −10 °C to +50 °C |
| Protection Rating | IP20 |
| Weight | 0.68 lbs |
Information About 11000898
The 11000898 is a DIN-rail-mounted load-cell amplifier powered by a 24 V DC supply. Its input accepts signals up to ±250 mV DC with an input impedance of 100 kΩ. Adjustable gain and zero settings allow the module to be matched to the connected load cell. Screw terminals provide wiring connections for power, sensor signals, and outputs.
Key Features:
- Load-Cell Signal Conditioning: Amplifies strain-gauge signals for use by compatible measurement and control equipment.
- Adjustable Gain: Provides a gain adjustment range of 11–510.
- Zero Adjustment: Allows the signal baseline to be set for the installed measurement arrangement.
- Selectable Process Output: Supports 0–20 mA, 4–20 mA, or 0–10 V output signals.
- Meter Output: Provides a selectable 0–100 µA or 0–10 V signal for compatible indicators.
- Load-Cell Supply: Provides a specified ±2.5 V DC sensor supply.
- DIN-Rail Installation: Mounts within compatible industrial control panels.
- Screw-Terminal Connections: Supports field wiring through screw terminals.
The 11000898 delivers the reliability and precision required for load-cell signal amplification in industrial tension monitoring and control systems.
