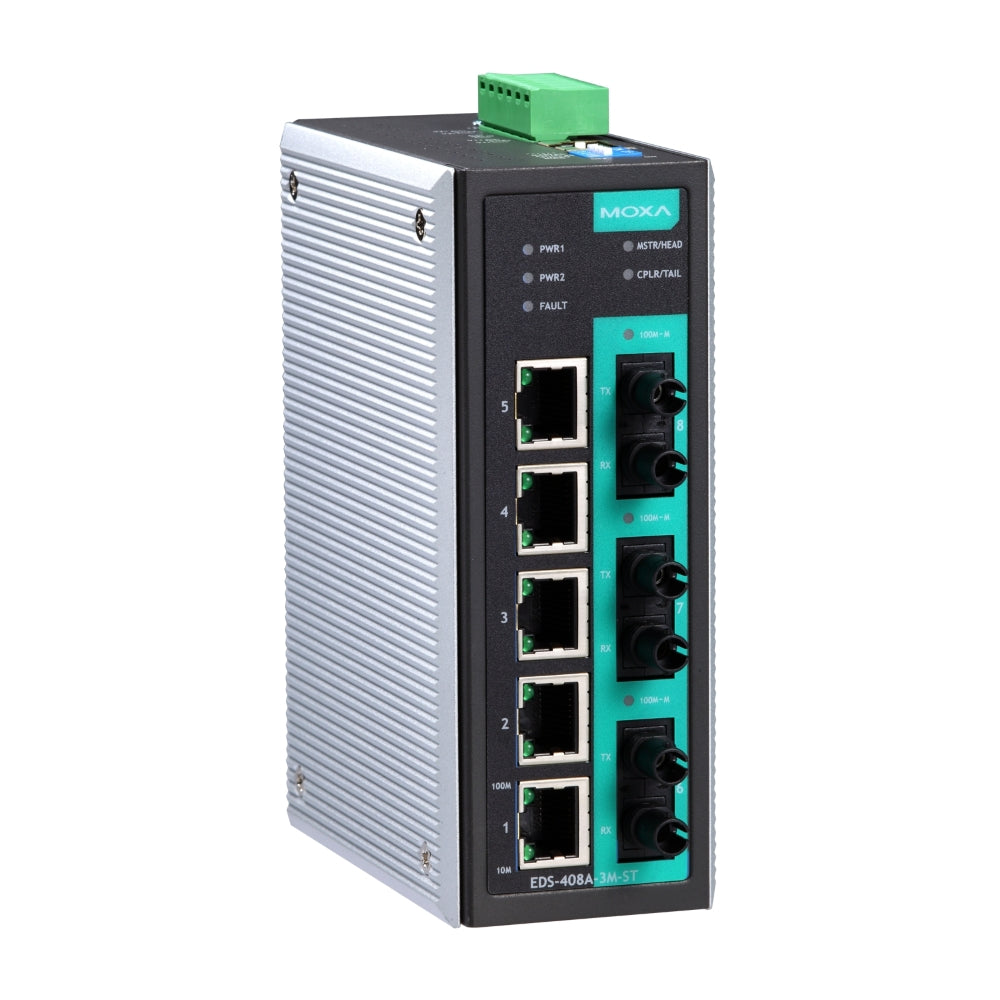

Moxa EDS-408A-MM-ST 8-Port Managed Industrial Ethernet Switch
- Regular price
- $865.00
- Sale price
- $865.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EDS-408A-MM-ST
Description
The Moxa EDS-408A-MM-ST is an eight-port managed industrial Ethernet switch with six copper ports and two multimode fiber ports using ST connectors. It provides Layer 2 network management and fiber connectivity for industrial equipment networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Moxa |
| Category | Industrial Networking |
| Part Number | EDS-408A-MM-ST |
| Subcategory | Managed Industrial Ethernet Switches |
| Switch Layer | Layer 2 |
| Total Ports | 8 |
| Copper Ports | 6 × 10/100BaseT(X) |
| Fiber Ports | 2 × 100BaseFX multimode, ST connectors |
| Power Input | Redundant dual 12/24/48 VDC |
| Housing / Protection | Metal, IP30 |
| Mounting | DIN-rail; optional wall mount |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Dimensions | 53.6 × 135 × 105 mm (2.11 × 5.31 × 4.13 in.) |
| Weight | 1.44 lb |
Information About EDS-408A-MM-ST
The EDS-408A-MM-ST is part of Moxa’s EDS-408A series of Layer 2 managed switches. Its six 10/100BaseT(X) ports and two 100BaseFX multimode ST fiber ports support mixed copper and fiber network layouts. Redundant 12/24/48 VDC power inputs and DIN-rail mounting support installation in industrial control cabinets. This standard-temperature model is specified for operation from -10 to 60°C.
Key Features:
-
8-Port Managed Ethernet Switch: Provides eight Ethernet ports for industrial network connectivity, including six 10/100BaseT(X) RJ45 ports and two 100BaseFX fiber ports.
-
Multimode Fiber Connectivity: Features two 100 Mbps fiber-optic ports with ST connectors for reliable communication over fiber links.
-
Layer 2 Switching: Supports managed Ethernet networking for industrial automation and control systems.
-
Network Redundancy: Supports Moxa Turbo Ring and Turbo Chain technologies, with recovery times under 20 ms in supported configurations, as well as RSTP/STP.
-
VLAN Configuration: Supports IEEE 802.1Q VLAN tagging and port-based VLANs to segment industrial network traffic.
-
Traffic Prioritization: Includes Quality of Service (QoS), IGMP snooping, bandwidth management, and port mirroring.
-
Flexible Management: Supports configuration through a web browser, command-line interface (CLI), Telnet, serial console, and Windows utilities.
-
Redundant Power Inputs: Accepts dual 12/24/48 VDC power inputs for improved power reliability.
-
Industrial Protection: Features a metal enclosure with IP30 protection and DIN-rail mounting.
-
Operating Temperature: Standard model operates from −10°C to 60°C.
-
Compact Design: Measures 53.6 × 135 × 105 mm (2.11 × 5.31 × 4.13 in.) and weighs approximately 650 g (1.44 lb).
The Moxa EDS-408A-MM-ST delivers managed Ethernet switching and multimode fiber connectivity for industrial automation networks, supporting network segmentation, traffic management, and redundant communications.
