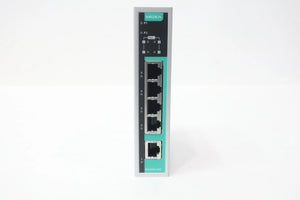

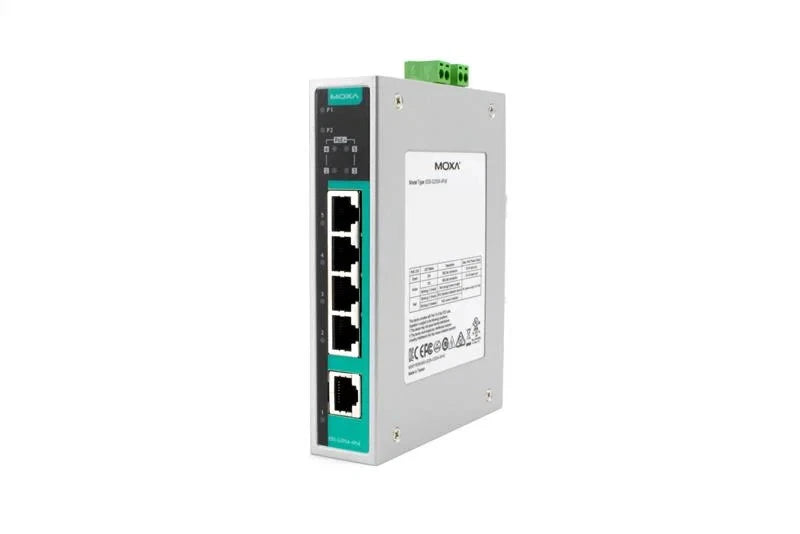

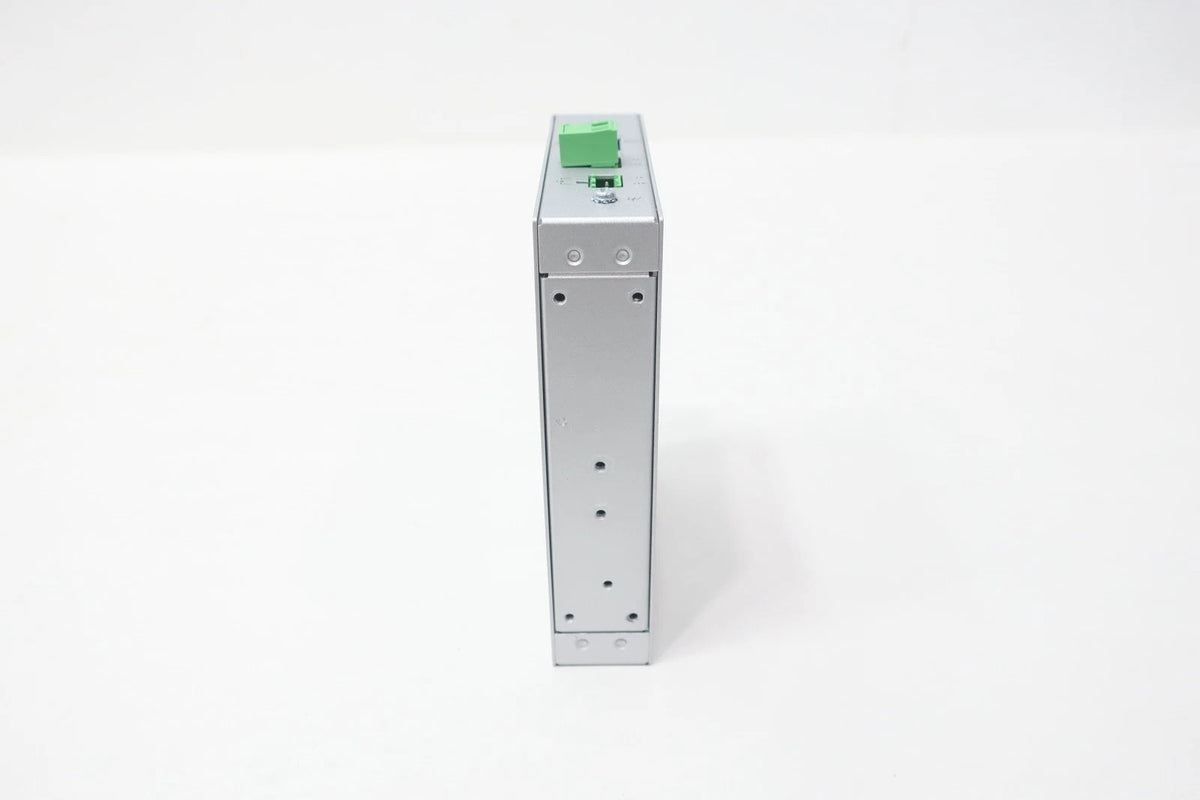

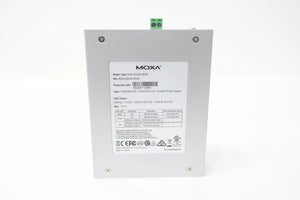

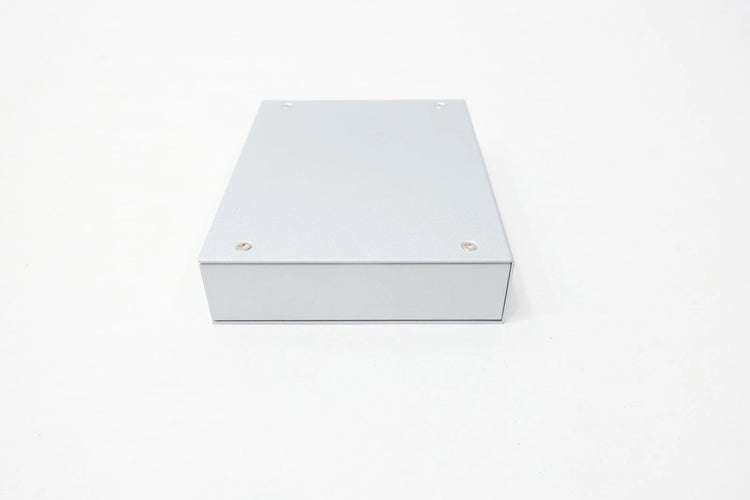

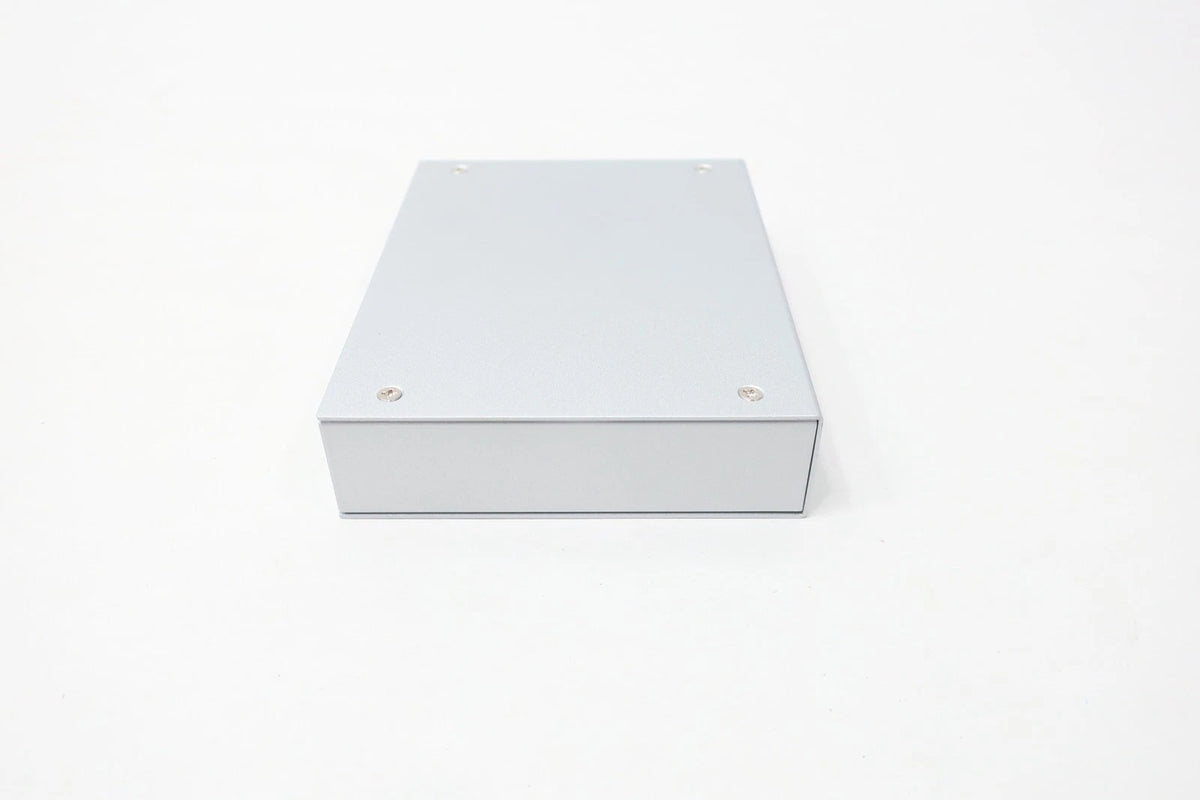

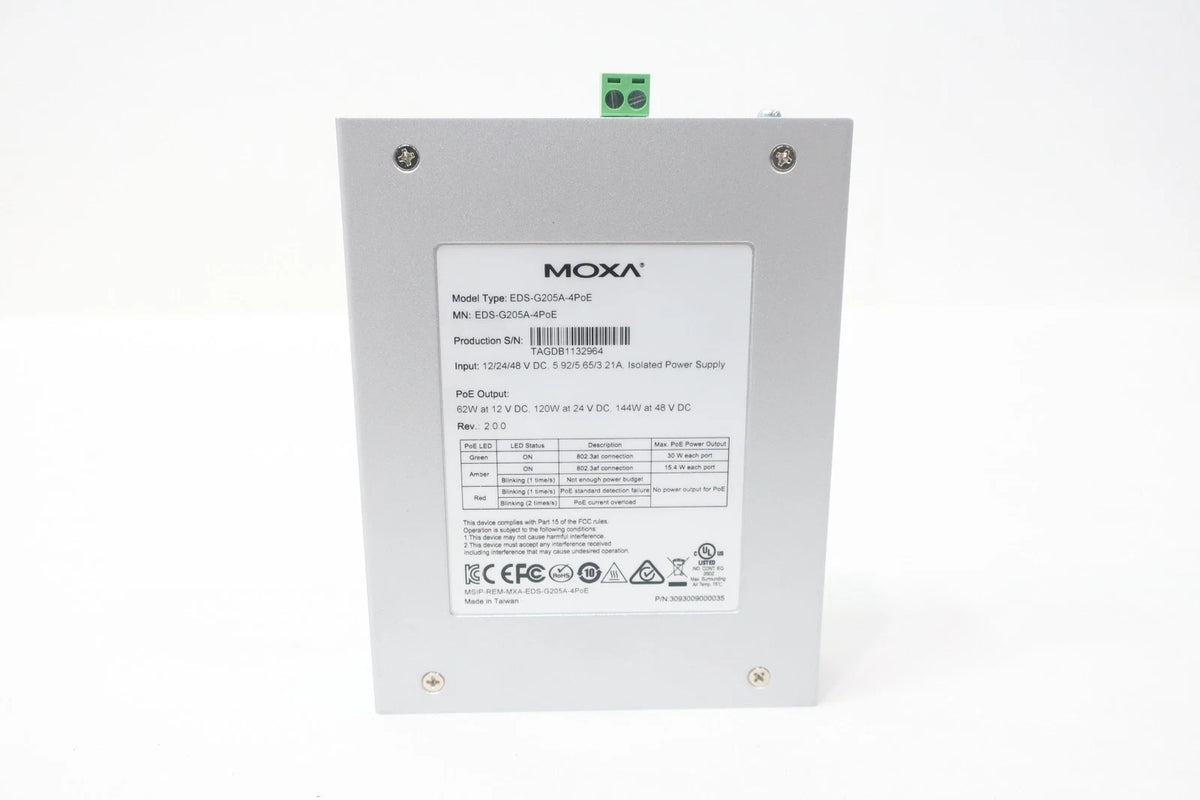

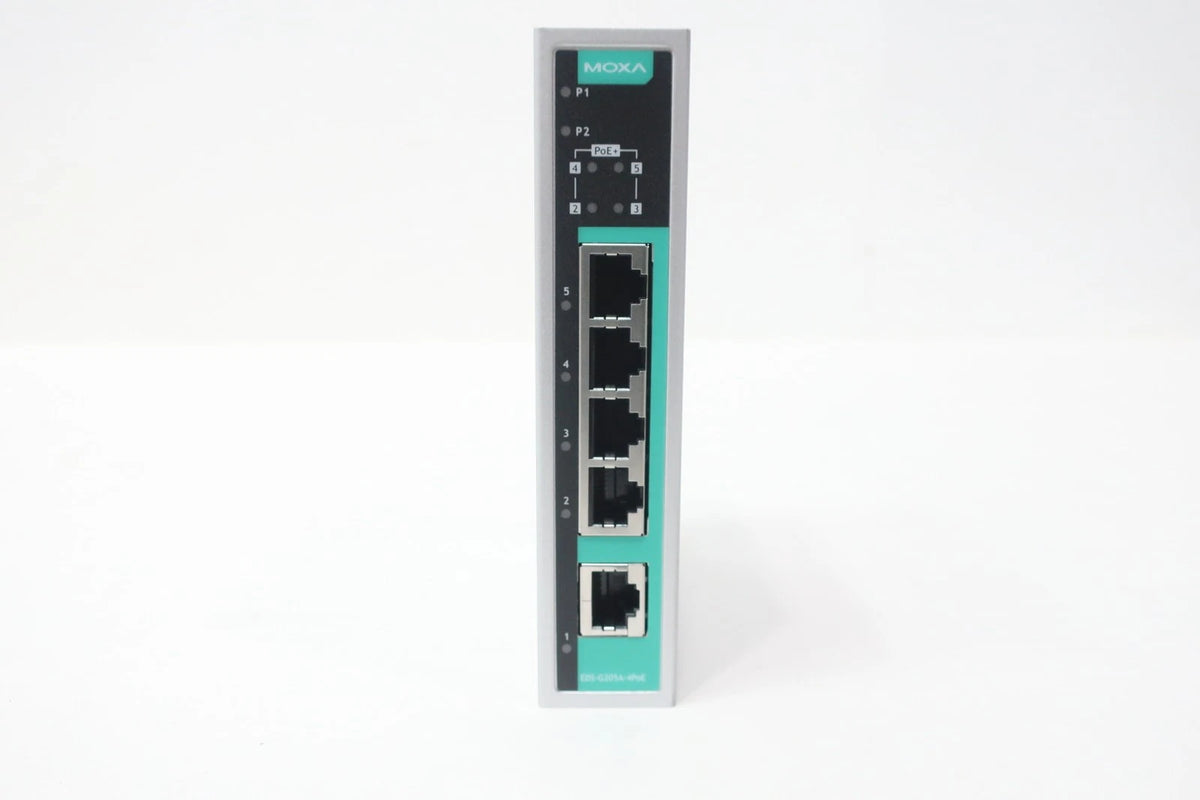

Moxa EDS-G205A-4PoE 5-Port Gigabit Industrial PoE+ Ethernet Switch
- Regular price
- $1,525.00
- Sale price
- $1,525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EDS-G205A-4POE
Description
The Moxa EDS-G205A-4PoE is a five-port unmanaged Gigabit Ethernet switch with Power over Ethernet Plus on four ports. It connects industrial network devices and supplies them with power over Ethernet, reducing the need for separate device power connections.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Moxa |
| Category | Industrial Networking |
| Part Number | EDS-G205A-4PoE |
| Subcategory | Industrial PoE Ethernet Switches |
| Switch Type | Unmanaged |
| Ethernet Ports | 5 × 10/100/1000BaseT(X), RJ45 |
| PoE+ Ports | 4 |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE Output | 36 W per port |
| Power Input | 12/24/48 VDC, redundant dual inputs |
| Operating Voltage Range | 12–57 VDC |
| Housing / Protection | Metal, IP30 |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Dimensions | 29 × 135 × 105 mm (1.14 × 5.31 × 4.13 in.) |
| Weight | 0.66 lb |
Information About EDS-G205A-4POE
The EDS-G205A-4PoE belongs to Moxa’s EDS-G205A industrial switch series. Its five RJ45 ports support 10/100/1000 Mbps Ethernet, with PoE+ available on ports 2 through 5. The switch accepts redundant 12/24/48 VDC power inputs and supports IEEE 802.3af/at-powered devices. Its metal IP30 housing supports DIN-rail mounting, and this standard model is rated for 0 to 60°C operation.
Key Features:
-
5-Port Gigabit Ethernet Switch: Provides five 10/100/1000 Mbps RJ45 Ethernet ports for high-speed industrial network connectivity.
-
4-Port PoE+ Support: Supplies Power over Ethernet on ports 2–5 for compatible powered devices.
-
IEEE 802.3af/at Compliance: Supports PoE and PoE+ standards, delivering up to 36 W per port.
-
Redundant Power Inputs: Accepts dual 12/24/48 VDC power inputs to support power redundancy.
-
High PoE Power Budget: Supports a total powered-device budget of up to 144 W at 48 VDC, subject to input voltage and system conditions.
-
Unmanaged Operation: Enables straightforward plug-and-play network connectivity without requiring switch configuration.
-
Gigabit Performance: Supports full- and half-duplex communication, auto-negotiation, and Auto MDI/MDI-X.
-
Industrial Protection: Includes overload-current and reverse-polarity protection, plus smart PoE overcurrent and short-circuit protection.
-
DIN-Rail Mounting: Features a metal enclosure with IP30 protection for industrial cabinet installations.
-
Compact Design: Measures approximately 135 × 105 × 29 mm and weighs 300 g (0.66 lb).
-
Operating Temperature: Standard model operates from 0°C to 60°C; the EDS-G205A-4PoE-T variant supports −40°C to 75°C.
-
Industrial Certifications: Includes UL 508, CE, FCC, and EN 50121-4 compliance.
The Moxa EDS-G205A-4PoE delivers reliable Gigabit Ethernet connectivity and PoE+ power distribution for industrial automation, surveillance, and other networked equipment.
