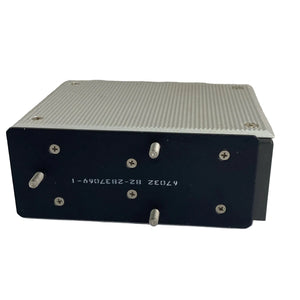

Moxa EDS-G308 8-Port Unmanaged Industrial Gigabit Ethernet Switch
- Regular price
- $1,075.00
- Sale price
- $1,075.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EDS-G308
Description
The Moxa EDS-G308 is an unmanaged industrial Gigabit Ethernet switch with eight 10/100/1000BaseT(X) ports. It provides high-bandwidth copper Ethernet connections for industrial equipment and control networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Moxa |
| Category | Industrial Networking |
| Part Number | EDS-G308 |
| Subcategory | Unmanaged Industrial Ethernet Switches |
| Switch Type | Unmanaged |
| Ethernet Ports | 8 × 10/100/1000BaseT(X), RJ45 |
| Power Input | Redundant dual 12/24/48 VDC |
| Operating Voltage Range | 9.6–60 VDC |
| Relay Output | 1 A at 24 VDC |
| Jumbo Frame Size | 9.6 KB |
| Housing / Protection | Metal, IP30 |
| Mounting | DIN-rail; optional wall mount |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Dimensions | 52.85 × 135 × 105 mm (2.08 × 5.31 × 4.13 in.) |
| Weight | 1.94 lb |
Information About EDS-G308

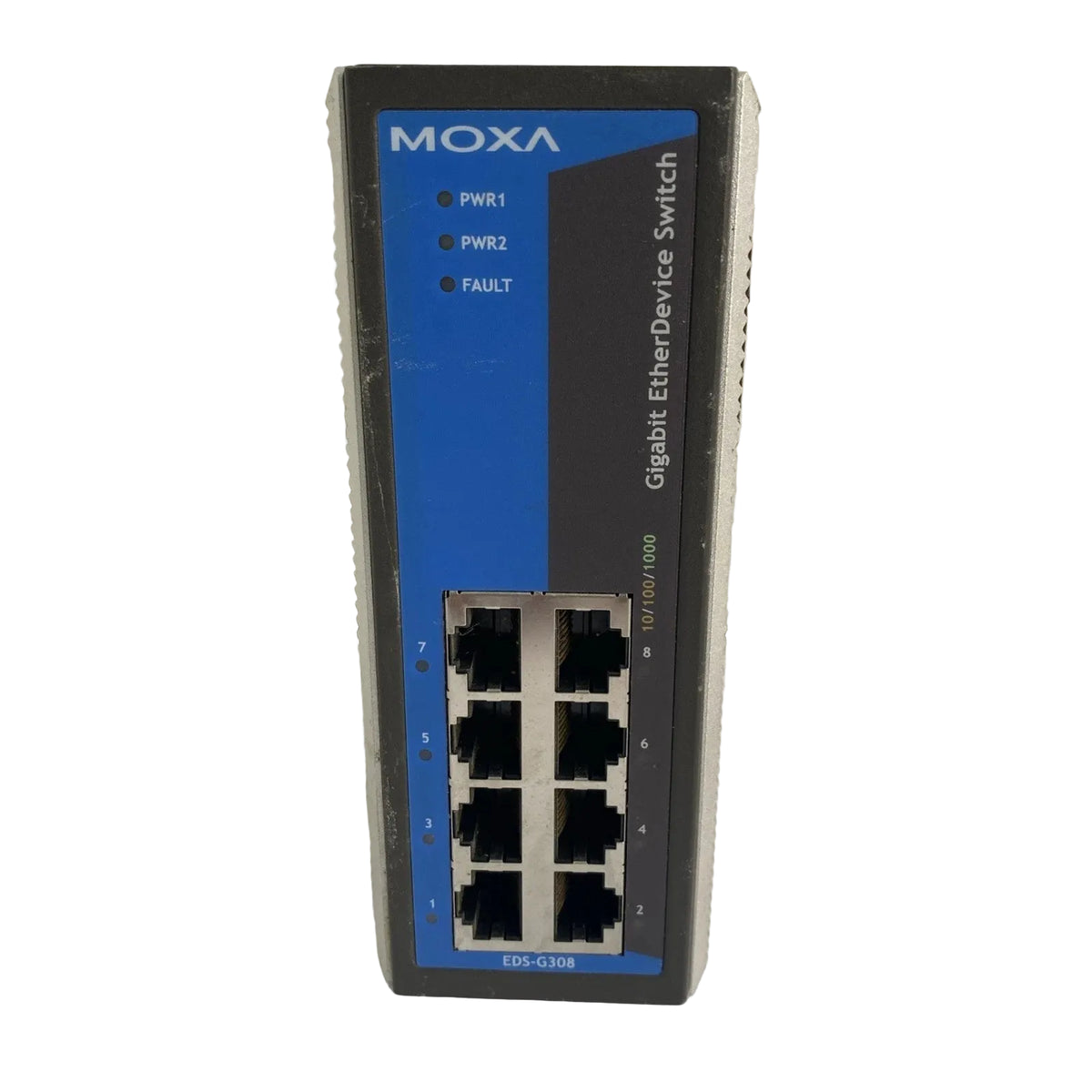

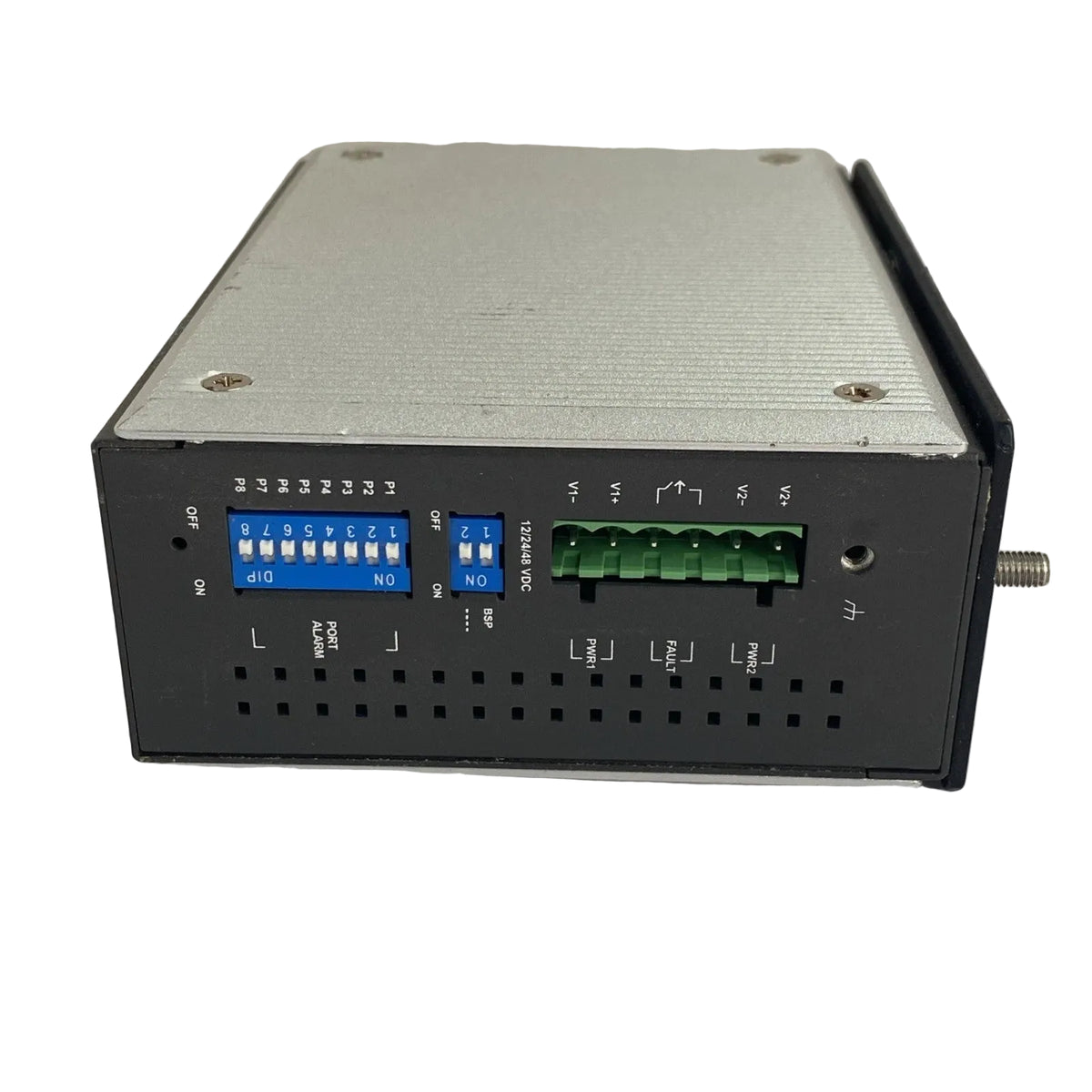

The EDS-G308 belongs to Moxa’s EDS-G308 series of unmanaged industrial switches. Its eight RJ45 ports support auto-negotiation, full- or half-duplex operation, and auto MDI/MDI-X. Redundant 12/24/48 VDC inputs and a relay output support power redundancy and fault notification. The metal IP30 housing is designed for DIN-rail mounting and standard operation from -10 to 60°C.
Key Features:
- Gigabit Ethernet Ports: Provides eight 10/100/1000BaseT(X) RJ45 ports.
- Unmanaged Operation: Enables plug-and-play switching for industrial Ethernet connections.
- Redundant Power Inputs: Accepts dual 12/24/48 VDC inputs.
- Relay Alarm Output: Signals power failure or port-break conditions.
- Broadcast Storm Protection: Helps limit broadcast traffic through DIP switch configuration.
- Jumbo Frame Support: Handles jumbo frames up to 9.6 KB.
- Industrial Housing: Features a metal enclosure with IP30 protection.
- DIN-Rail Mounting: Installs on a DIN rail; optional wall-mount kit is available.
The EDS-G308 delivers the reliability and precision required for Gigabit Ethernet connectivity in industrial networks.
