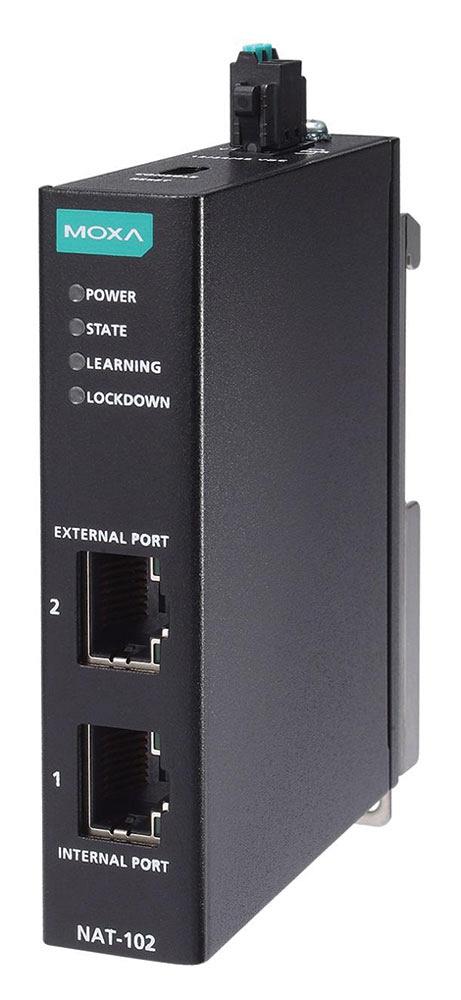

Moxa NAT-102 2-Port Industrial Network Address Translation Device
- Regular price
- $1,285.00
- Sale price
- $1,285.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NAT-102
Description
The Moxa NAT-102 is a compact industrial network address translation device with two 10/100BaseT(X) Ethernet ports. It helps connect machines to an existing network while managing IP translation and access to the machine-side network.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Moxa |
| Category | Industrial Networking |
| Part Number | NAT-102 |
| Subcategory | Industrial NAT Devices |
| Device Type | Industrial Network Address Translation device |
| Ethernet Ports | 2 × 10/100BaseT(X), RJ45 |
| NAT Functions | 1-to-1, N-to-1, port forwarding, NAT loopback |
| Firewall Filters | IP address, MAC address, ports |
| Maximum NAT Throughput | 15,000 packets per second; up to 100 Mbps |
| Power Input | 12/24/48 VDC |
| Operating Voltage | 9.6–60 VDC |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Dimensions | 20 × 90 × 73 mm (0.79 × 3.54 × 2.87 in.) |
| Weight | 0.47 lb |
Information About NAT-102
The NAT-102 belongs to Moxa’s NAT-102 series of industrial NAT devices. It supports 1-to-1 and N-to-1 NAT, port forwarding, and NAT loopback for adapting machine networks to existing network configurations. Security functions include IP, MAC, and port filtering, along with automatic learning and locking of connected devices. The standard model accepts 12/24/48 VDC power and operates from -10 to 60°C.
Key Features:
- Ethernet Ports: Provides two 10/100BaseT(X) RJ45 connections.
- NAT Functions: Supports 1-to-1 and N-to-1 NAT, port forwarding, and NAT loopback.
- Firewall Filtering: Filters network traffic by IP address, MAC address, and port.
- Auto Learning Lock: Learns and binds local devices’ IP and MAC addresses for access control.
- Secure Boot: Checks system integrity during startup.
- Power Input: Accepts 12/24/48 VDC through a removable terminal block.
- Compact Housing: Features a metal enclosure for cabinet installation.
- DIN-Rail Mounting: Supports DIN-rail installation; optional wall-mount kit is available.
The NAT-102 delivers the reliability and precision required for machine network integration and access control.
