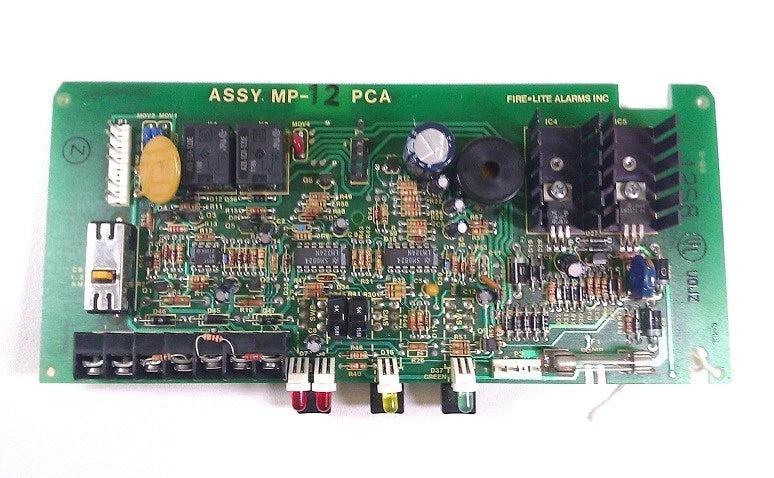

MP-12 | Fire-Lite MiniPanel 12V Two-Zone Fire Alarm Control Panel
- Regular price
- $2,149.00
- Sale price
- $2,149.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: MP-12
Description
The Fire-Lite MP-12 is a compact two-zone, 12-volt fire alarm control panel from the MiniPanel Series. Designed for small to medium-sized buildings, it provides reliable fire protection with initiating device and notification appliance compatibility. With its built-in charger, supervisory functions, and trouble monitoring, the MP-12 delivers dependable performance in conventional fire alarm applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite Alarms |
| Category | Fire Safety |
| Part Number | MP-12 |
| Subcategory | Fire Alarm Control |
| Panel Type | Two-Zone, Conventional FACP |
| Voltage | 12 VDC |
| Notification Power | 1.0 A maximum |
| Initiating Circuits | 2 × Class B (Style B) IDCs |
| NAC Circuits | 1 × Class B (Style Y) |
| Regulated DC Output | 100 mA |
| Optional Modules | Relay (MP-AC12, MP-AT12), Transmitter (MP-TR12, MP-TRT12) |
| Battery Supervision | Low battery, disconnected battery detection |
| AC Power Monitoring | Low AC (brownout) and loss of AC power |
| Additional Protection | Surge suppression, built-in brownout circuitry |
| Indicators | AC Power, Alarm per zone, System Trouble |
| Controls | Reset, Trouble Silence, Disable |
| Dimensions | 9.5 in W × 10.625 in H × 4.875 in D |
| Approvals | UL 864 Listed, MEA 578-81-E, CSFM 7165-0075:120 |
| Weight | ~10.0 lbs |
Information About MP-12
The MP-12 is part of Fire-Lite’s MiniPanel Series, which includes both 12 VDC (MP-12) and 24 VDC (MP-24) models. It features two non-expandable Class B initiating device circuits (IDCs) and one Class B notification appliance circuit (NAC). The panel is compatible with two-wire smoke detectors and meets NFPA 72 standards for local and remote station systems. Optional modules are available for relay outputs and remote station transmission of alarm and trouble signals. Its compact enclosure includes LED indicators, membrane switch controls, and built-in surge suppression, making the MP-12 an economical yet reliable solution.
Key Features:
- Two Initiating Device Circuits: Class B (Style B) IDCs for conventional detectors.
- Single NAC Output: Class B (Style Y) notification appliance circuit.
- 12 VDC Power Supply: Provides 1.0 A of notification appliance power.
- Built-in Charger: Integral battery charging with earth fault and low-battery supervision.
- Trouble Monitoring: Detects open loops, low battery, ground faults, and AC loss.
- Compact Design: 9.5 in × 10.625 in × 4.875 in enclosure for small installations.
- LED Indicators: Includes AC Power, Alarm (per zone), and System Trouble.
- Optional Modules: Supports auxiliary relay and remote station transmitter modules.
The MP-12 delivers reliable performance and ease of use for small-scale fire alarm systems.
