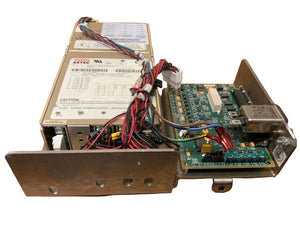

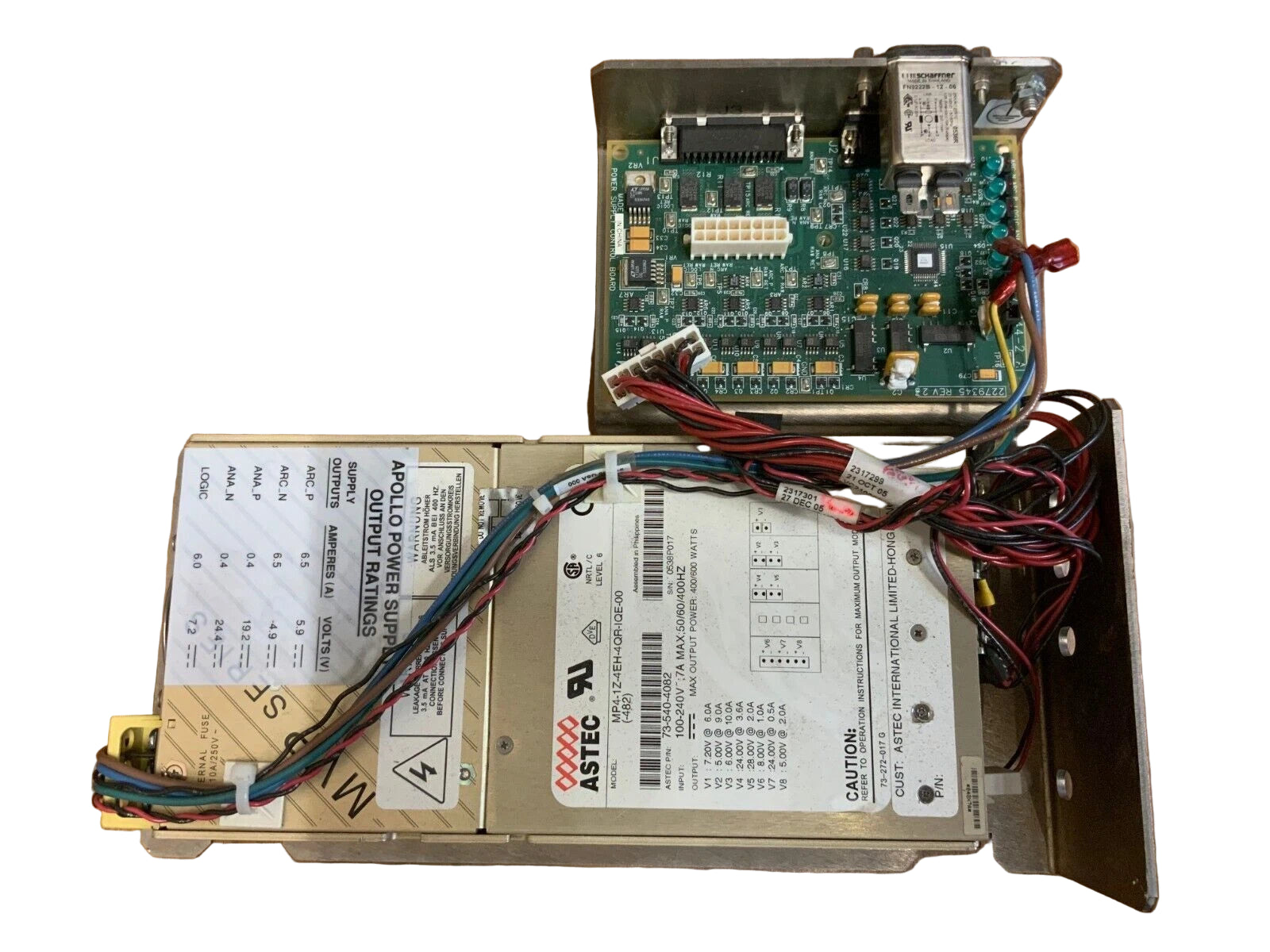

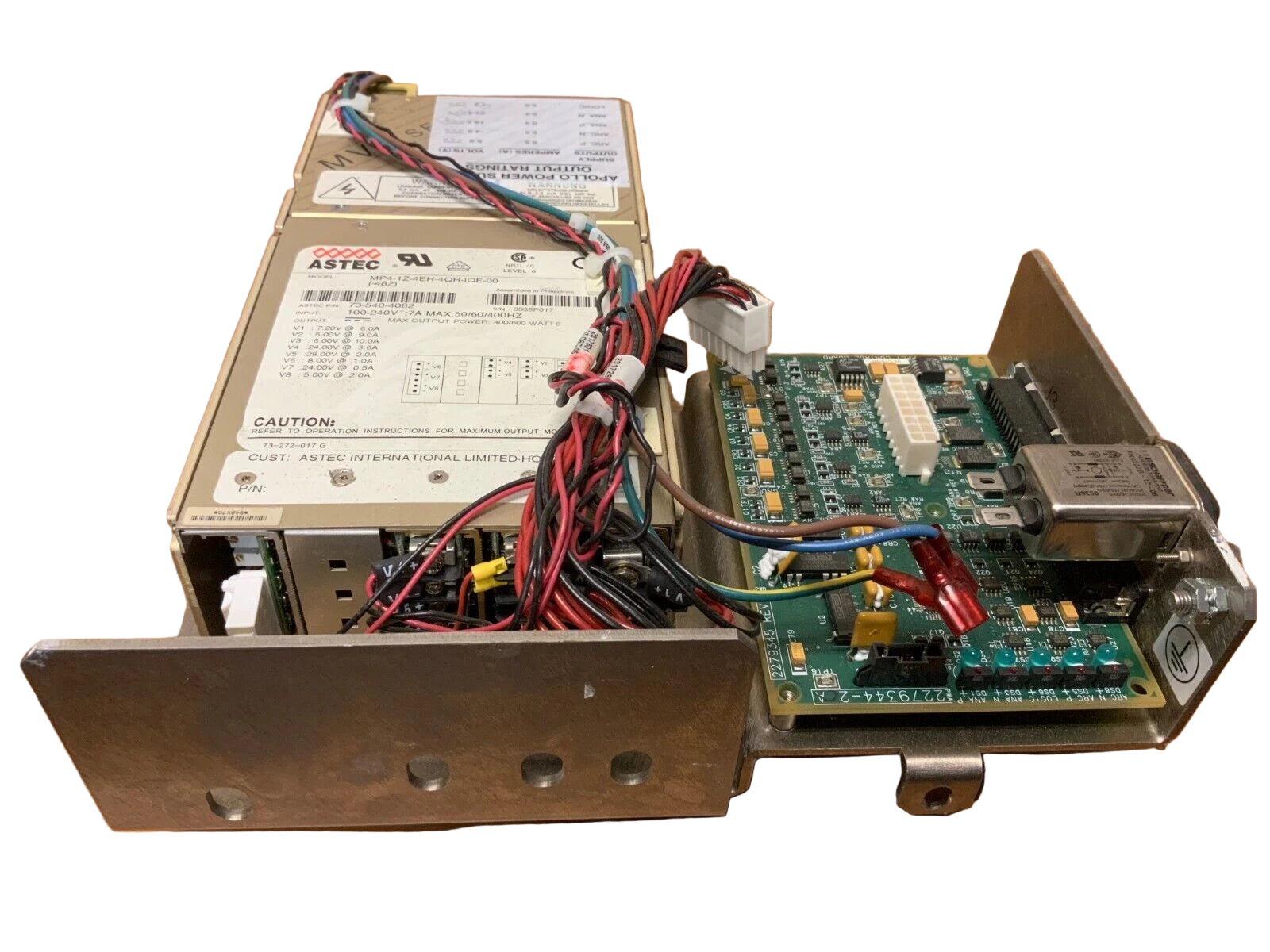

MP4-1Z-4EH-4QR-IQE-00 | Emerson Power Module
- Regular price
- $5,587.00
- Sale price
- $5,587.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MP4-1Z-4EH-4QR-IQE-00
Description
The Emerson MP4-1Z-4EH-4QR-IQE-00 Power Module is a high-performance modular power supply unit engineered for industrial applications, delivering reliable power conversion, flexible configuration, and dependable operation in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Emerson |
| Category | Electrical Equipment & Supplies |
| Part Number | MP4-1Z-4EH-4QR-IQE-00 |
| Subcategory | Configurable Power Modules |
| Type | Modular Power Supply / Power Module |
| Input Voltage Range | 85–264 VAC or 120–350 VDC |
| Input Frequency | 47–440 Hz |
| Inrush Current | 40 A peak max. (soft start) |
| Efficiency | 70–80% typ. @ full case load |
| Power Factor | 0.99 typ., meets EN61000-3-2 |
| Holdover Storage | 20 ms minimum (independent of input VAC) |
| AC OK Signal | >5 ms early warning before loss of regulation |
| Turn-On Time | AC: 1.5 sec typ. |
| Adjustment Range | ±10% min. all outputs |
| Margining | ±4–6% nominal |
| Ripple & Noise | RMS: 0.1% or 10 mV (greater) |
| Temperature Coefficient | 0.02% per °C |
| Operating Temperature | –20 °C to 50 °C (start @ 0 °C), derate linearly to 50% at 70 °C |
| Rear Air Option | –20 °C to 40 °C max. |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 95% non-condensing |
| Cooling | Internal DC fan or customer-supplied air (option) |
| Shock/Vibration | Meets MIL-HDBK 810E |
| Weight | 2.5 kgs |
Information About MP4-1Z-4EH-4QR-IQE-00
The MP4-1Z-4EH-4QR-IQE-00 is part of Emerson’s MP Series modular power supply range, engineered to deliver flexible, high-performance power conversion for demanding industrial and electronic applications. Designed with configurable outputs and advanced protection features, it provides stable and efficient power with a wide input range and robust compliance to global safety and EMI standards. With internal fan cooling and compact construction, the MP4-1Z-4EH-4QR-IQE-00 ensures reliable operation across varied environments, making it ideal for OEMs, automation, and test equipment.
Key Features:
- Model / MPN: MP4-1Z-4EH-4QR-IQE-00
- Type: Modular Power Supply / Power Module
- Series: MP Series
- Input Voltage Range: 85–264 VAC or 120–350 VDC
- Input Frequency: 47–440 Hz
- Inrush Current: 40 A peak max. (soft start)
- Efficiency: 70–80% typical at full load
- Power Factor: 0.99 typ., compliant with EN61000-3-2
- Output Adjustment Range: ±10% minimum, all outputs
- Holdover Storage: 20 ms minimum (independent of input VAC)
- AC OK Signal: >5 ms early warning before loss of regulation, full-cycle ride through (50 Hz)
- Ripple & Noise: RMS 0.1% or 10 mV (greater), Peak-to-Peak 1.0% or 50 mV (greater), 20 MHz bandwidth limit
- Operating Temperature: –20 °C to +50 °C (derating to 50% at +70 °C); –20 °C to +40 °C with rear air option
- Storage Temperature: –40 °C to +85 °C
- Humidity: Up to 95% non-condensing
- Cooling: Internal DC fan (standard) or external airflow (option)
- Safety / EMI Compliance: CISPR 22/EN55022 Level “B” (standard), EN60950 isolation, MIL-HDBK 810E shock/vibration
- Control / Interface: Global Inhibit/Enable via TTL logic, margining ±4–6%
- Weight: Approx. 2.5–3.0 kg (5.5–6.6 lb) depending on configuration
The Emerson MP4-1Z-4EH-4QR-IQE-00 Power Module delivers configurable, efficient, and reliable power in a rugged modular package, making it a trusted solution for critical automation, test, and industrial systems requiring stable and customizable power supplies.
