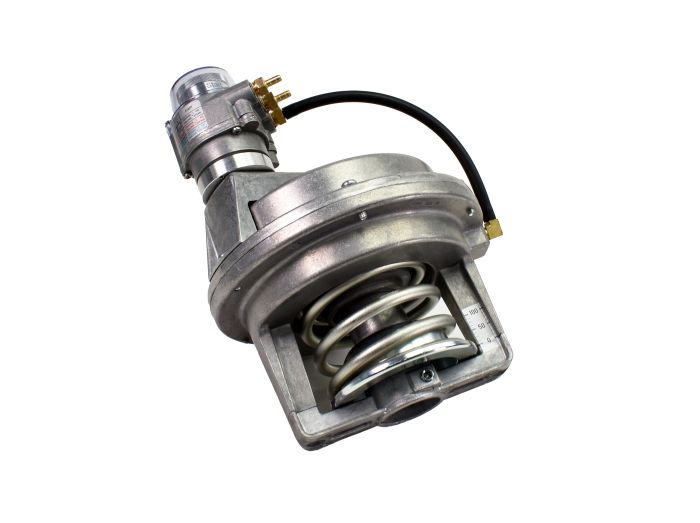

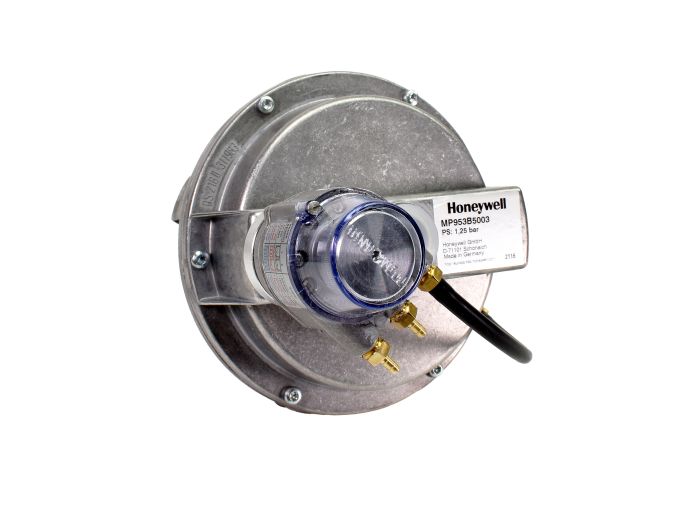

MP953B5003 | Honeywell Pneumatic Valve Actuator for HVAC Control Systems
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MP953B5003
Description
The Honeywell MP953B5003 is a pneumatic valve actuator designed for proportional control of valves in HVAC heating and cooling systems. The Honeywell MP953B5003 provides reliable pneumatic operation for regulating steam, hot water, or chilled water flow in commercial and industrial installations. It operates using compressed air to position the connected valve stem and maintain accurate system temperature and flow control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Flame Safety Products |
| Part Number | MP953B5003 |
| Subcategory | Valve Actuator |
| Actuator Type | Pneumatic Valve Actuator |
| Control Method | Pneumatic proportional control |
| Pressure Range | 20.7 to 69 kPa |
| Maximum Operating Pressure | 140 kPa |
| Maximum Safe Air Pressure | 210 kPa |
| Diaphragm Size | 180 mm (7 in) |
| Stem Action | Retracting |
| Air Connection | Barb fitting for 6×1 mm or ¼ in tubing |
| Maximum Operating Temperature | 70 °C |
| Compatible Valve Series | V5011, V5013, V5015, V5016, V5025, V5049, V5050, V5328, V5329 |
| Application | Steam, hot water, and chilled water HVAC systems |
| Weight | 6.31 lbs |
Information About MP953B5003
The MP953B5003 is part of the Honeywell MP953 series pneumatic actuators engineered for use with compatible Honeywell control valves including models such as V5011, V5013, V5015, V5016, V5025, V5049, V5050, V5328, and V5329. The actuator uses a rolling diaphragm mechanism to deliver smooth motion, low hysteresis, and long operational life. Designed for proportional pneumatic control, it retracts the valve stem based on applied air pressure and supports adjustable start point positioning. The unit is commonly applied in HVAC systems controlling steam or hot and chilled water distribution in building automation environments.
Key Features:
- Pneumatic Valve Operation: Uses air pressure to proportionally control valve position in HVAC systems.
- Rolling Diaphragm Design: Provides long service life with reduced hysteresis and smooth actuator movement.
- Adjustable Control Range: Supports adjustable start point and pressure range for flexible system tuning.
- Retracting Stem Action: Designed to retract the valve stem during operation for proportional flow regulation.
- HVAC Valve Compatibility: Works with several Honeywell valve models including V5011, V5013, and V5049.
- Simple Installation: Slide-lock mechanism allows quick engagement with valve stems.
- Heat Resistance: Designed for operation with medium temperatures up to 70°C at the actuator.
- Durable Pneumatic Construction: Suitable for long-term use in commercial HVAC control systems.
The MP953B5003 delivers the reliability and precision required for proportional valve control in heating, ventilation, and air conditioning systems.
