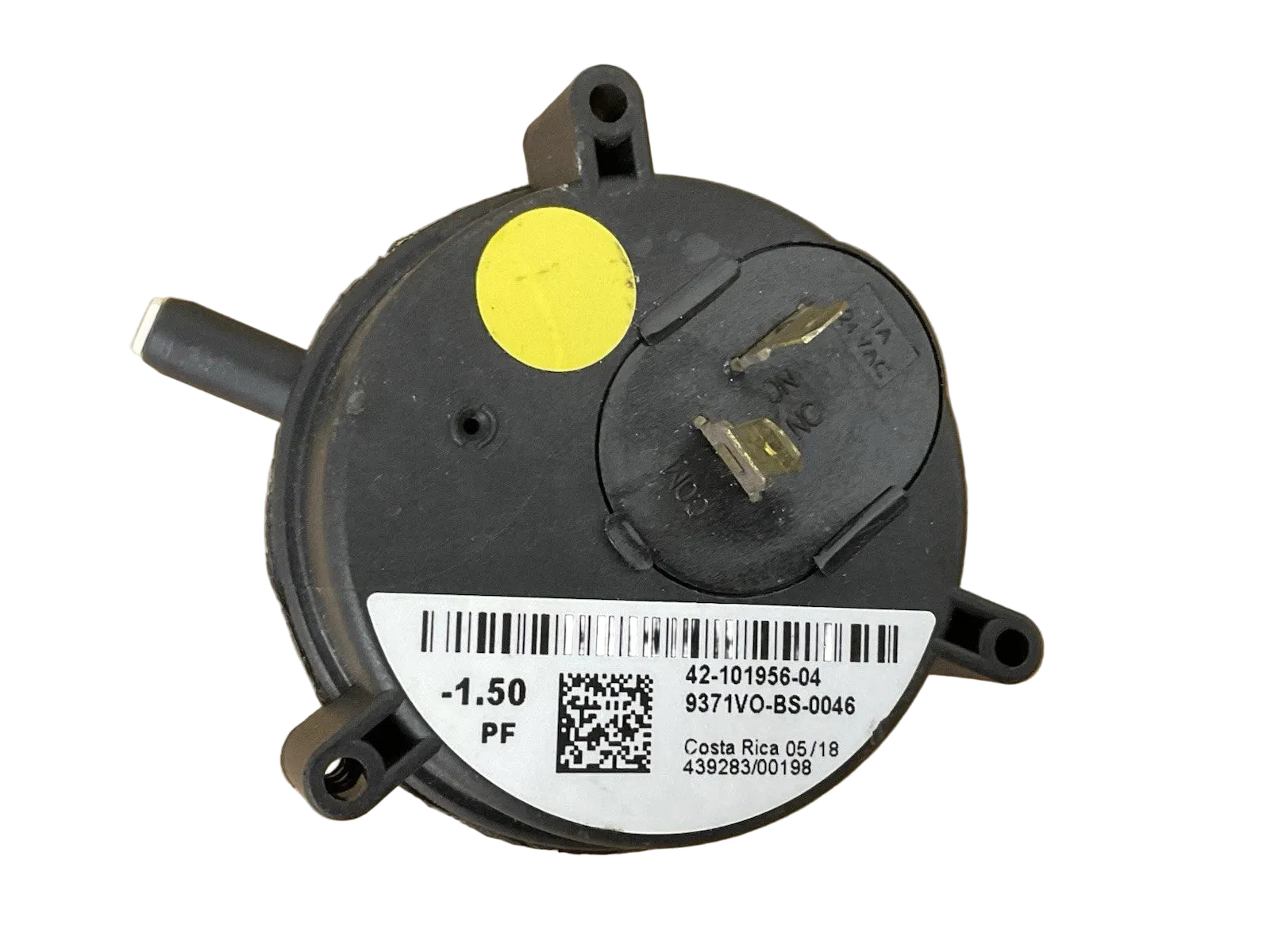

MPL 9371VO-BS-0046 Furnace Air Pressure Switch -1.50" WC Draft Safety Control
- Regular price
- $72.00
- Sale price
- $72.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 9371VO-BS-0046
Description
The MPL 9371VO-BS-0046 is a furnace air pressure switch designed to monitor and verify proper airflow within HVAC systems. This component ensures the inducer motor generates the correct vacuum level for safe combustion and exhaust operation. It plays a critical role in maintaining furnace safety and performance reliability.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | MPL |
| Category | HVAC Controls |
| Part Number | 9371VO-BS-0046 |
| Subcategory | Pressure Switches |
| Pressure Set Point | -1.50" WC |
| Switch Type | Air Pressure Safety Switch |
| Application | Gas Furnaces |
| Mounting Type | Internal Furnace Mount |
| Contact Configuration | SPST (Single Pole Single Throw) |
| Electrical Connection | Quick Connect Terminals |
| Sensing Method | Diaphragm-Based |
| Operating Temperature Range | Typical Furnace Operating Range |
| Material Construction | High-Temperature Resistant Plastic & Metal Components |
| Function | Draft Verification / Safety Interlock |
| Weight | 0.25 lb |
Information About 9371VO-BS-0046
The 9371VO-BS-0046 is a precision-engineered air pressure switch used in residential and light commercial furnace systems. It is typically installed within the furnace housing to detect negative pressure created by the inducer motor during operation. Built with a durable diaphragm and calibrated sensing mechanism, it ensures accurate pressure response at a set point of -1.50 inches of water column. This switch is compatible with a wide range of gas furnaces and integrates easily into existing HVAC control circuits, supporting safe ignition and proper venting conditions.
Key Features:
- Precise Pressure Calibration: Factory-set to -1.50" WC for accurate airflow verification
- Safety Monitoring Function: Ensures inducer motor operation before ignition sequence
- Durable Diaphragm Design: Provides consistent performance and long service life
- HVAC System Compatibility: Designed for use with various furnace models and brands
- Compact Form Factor: Allows easy installation within tight furnace compartments
- Electrical Switching Reliability: Maintains stable open/close response under load conditions
- High Sensitivity Response: Detects slight pressure variations for enhanced safety
- Corrosion-Resistant Materials: Suitable for long-term use in HVAC environments
- Quick Connect Terminals: Simplifies wiring and replacement procedures
- OEM Replacement Fit: Direct replacement for compatible MPL furnace systems
- Temperature Resistance: Operates reliably across standard furnace temperature ranges
The 9371VO-BS-0046 delivers the reliability and precision required for safe furnace airflow monitoring and combustion control.
