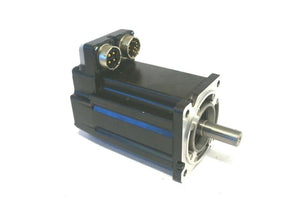

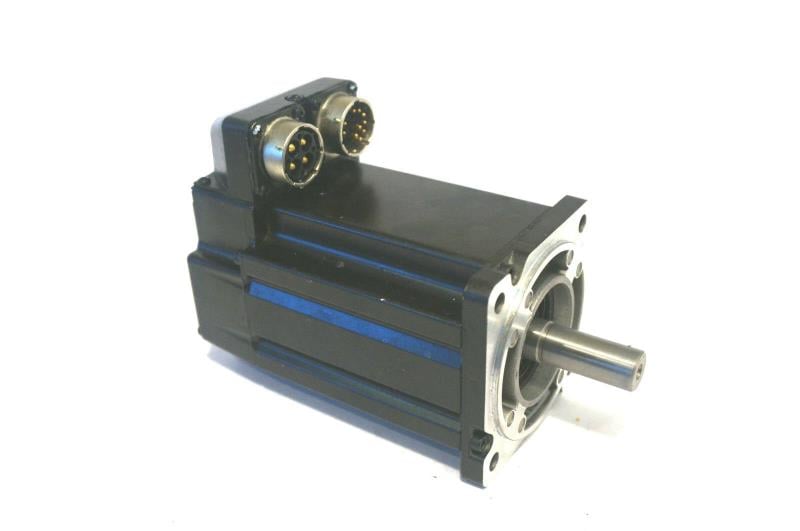

MPL-A430H-HJ72AA | Allen-Bradley Brushless Servo Motor 230V 3500-RPM
- Regular price
- $3,999.00
- Sale price
- $3,999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MPL-A430H-HJ72AA
Description
The MPL-A430H-HJ72AA is a compact, high-performance brushless servo motor from Allen-Bradley’s MP-Series. Designed for applications requiring precision, speed, and responsiveness, it features a 115 mm frame and 3500 RPM rated speed for dynamic motion control.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Motors
|
| Part Number | MPL-A430H-HJ72AA |
| Subcatecory |
Servo Motors
|
| Series | MP |
| Product Family | MP Series Low Inertia servo motors |
| Series Type | Low Inertia |
| Voltage | 200 V |
| Continuous Stall Torque | 6.21 N-m |
| Frame Size | 4 = 115 mm |
| Continuous Current (0-pk) | 12.2 A |
| Magnetic Stack Length | 3 in. |
| Rated Power | 1.8 kW |
| Rated Speed | 3500 rpm |
| Maximum operating speed | 5000 rpm |
| Brake | No Brake |
| Encoder | 2000 Line count encoder |
| Mounting Flange | IEC Metric |
Information About MPL-A430H-HJ72AA
The MPL-A430H-HJ72AA is a 200V class Low Inertia AC Synchronous Brushless Servo Motor, part of Allen-Bradley's MP-Series. Engineered for high-torque and high-speed requirements, this servo motor features a frame size of 115 mm and a magnet stack length of 76.2 mm (3 inches). This model delivers continuous stall torque of 6.21 N·m and supports a continuous current of 12.2 A (0-pk). With its right-angle circular DIN (SpeedTec) connector, the motor supports a 180-degree rotatable design for flexibility in cable routing.
Key Features:
-
Low Inertia Design: Optimized for dynamic, high-speed motion control
-
Integral Encoder: 2000-line incremental encoder for precise feedback
-
Right-Angle DIN Connector: Rotatable 180° SpeedTec DIN for versatile mounting
-
Continuous Stall Torque: 6.21 N·m for robust operation
-
High-Speed Operation: Rated for 3500 RPM
-
Compact Frame: 115 mm frame with 3-inch magnet stack
-
Reliable Power Delivery: Supports continuous current of 12.2 A and rated power of 1.8 kW
The MPL-A430H-HJ72AA servo motor is a powerful and compact solution designed to deliver responsive and reliable motion control in industrial automation systems.
Description
The MPL-A430H-HJ72AA is a compact, high-performance brushless servo motor from Allen-Bradley’s MP-Series. Designed for applications requiring precision, speed, and responsiveness, it features a 115 mm frame and 3500 RPM rated speed for dynamic motion control.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
| Category |
Motors
|
| Part Number | MPL-A430H-HJ72AA |
| Subcatecory |
Servo Motors
|
| Series | MP |
| Product Family | MP Series Low Inertia servo motors |
| Series Type | Low Inertia |
| Voltage | 200 V |
| Continuous Stall Torque | 6.21 N-m |
| Frame Size | 4 = 115 mm |
| Continuous Current (0-pk) | 12.2 A |
| Magnetic Stack Length | 3 in. |
| Rated Power | 1.8 kW |
| Rated Speed | 3500 rpm |
| Maximum operating speed | 5000 rpm |
| Brake | No Brake |
| Encoder | 2000 Line count encoder |
| Mounting Flange | IEC Metric |
Information About MPL-A430H-HJ72AA
The MPL-A430H-HJ72AA is a 200V class Low Inertia AC Synchronous Brushless Servo Motor, part of Allen-Bradley's MP-Series. Engineered for high-torque and high-speed requirements, this servo motor features a frame size of 115 mm and a magnet stack length of 76.2 mm (3 inches). This model delivers continuous stall torque of 6.21 N·m and supports a continuous current of 12.2 A (0-pk). With its right-angle circular DIN (SpeedTec) connector, the motor supports a 180-degree rotatable design for flexibility in cable routing.
Key Features:
-
Low Inertia Design: Optimized for dynamic, high-speed motion control
-
Integral Encoder: 2000-line incremental encoder for precise feedback
-
Right-Angle DIN Connector: Rotatable 180° SpeedTec DIN for versatile mounting
-
Continuous Stall Torque: 6.21 N·m for robust operation
-
High-Speed Operation: Rated for 3500 RPM
-
Compact Frame: 115 mm frame with 3-inch magnet stack
-
Reliable Power Delivery: Supports continuous current of 12.2 A and rated power of 1.8 kW
The MPL-A430H-HJ72AA servo motor is a powerful and compact solution designed to deliver responsive and reliable motion control in industrial automation systems.
