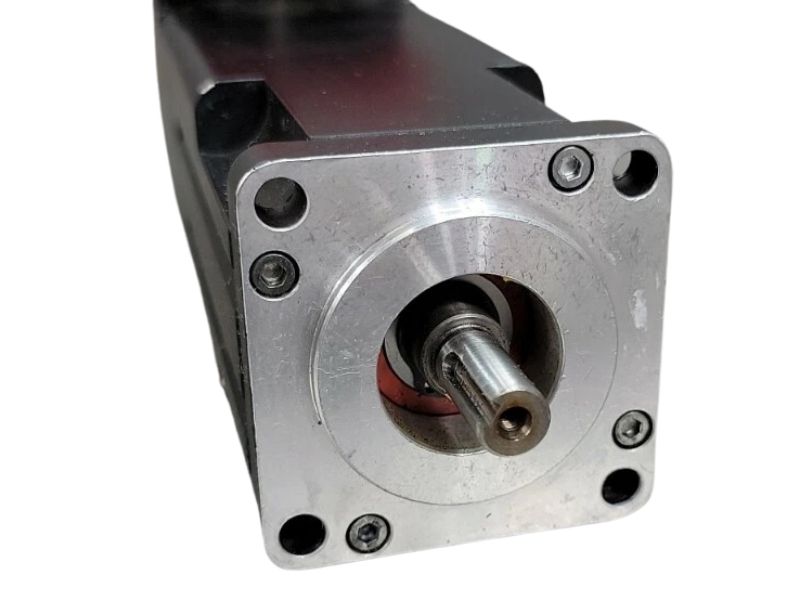

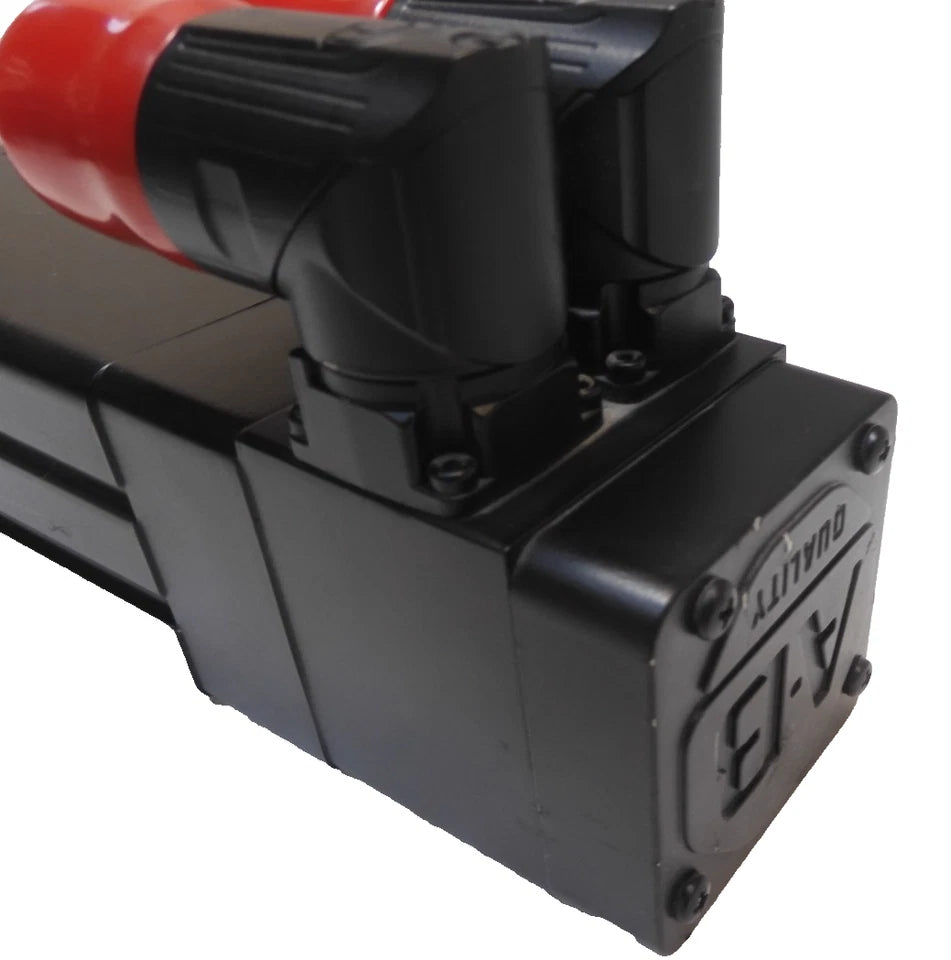

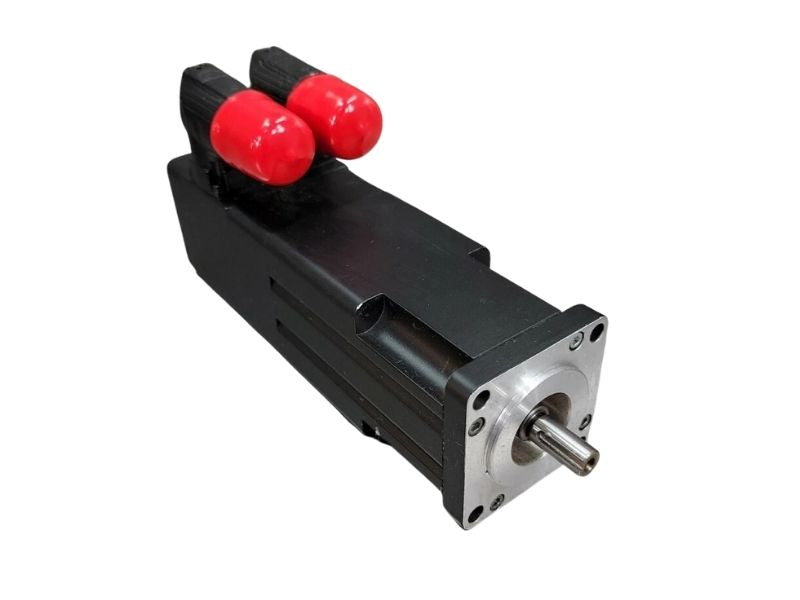

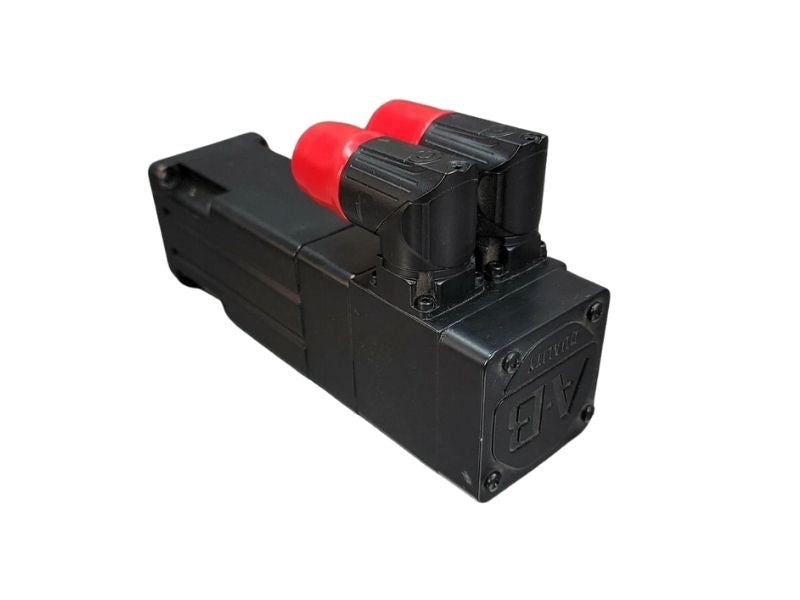

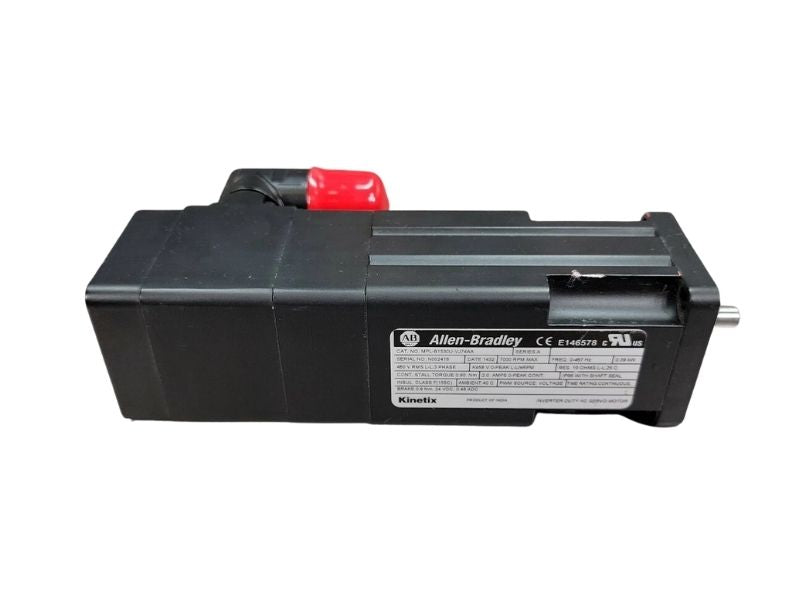

MPL-B1530U-VJ74AA | Allen-Bradley Bulletin MPL Low-Inertia Brushless Servo Motor 460 VAC
- Regular price
- $1,814.00
- Sale price
- $1,814.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MPL-B1530U-VJ74AA
Description
The Allen-Bradley MPL-B1530U-VJ74AA is a high-performance brushless servo motor from the MP-Series, designed for demanding motion control applications. This low-inertia servo motor operates at 460 Volts AC and features a rated speed of 7000 RPM.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Motors
|
|
Part Number |
MPL-B1530U-VJ74AA |
| Subcatecory |
Servo Motors
|
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 460 VAC |
| Frame Size | 63 millimeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 7000 rpm |
| Feedback | Multi-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Brake | 24 Volts DC brake |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
Information About MPL-B1530U-VJ74AA
The MPL-B1530U-VJ74AA is part of the MP-Series of low-inertia servo motors from Allen-Bradley, known for their compact size, high responsiveness, and reliable operation. This model is equipped with a multi-turn high-resolution encoder for accurate position feedback and uses circular DIN right-angle connectors for streamlined installation. It is ideal for applications requiring precise positioning and rapid acceleration, such as packaging, material handling, and robotics.
Key Features:
-
7000 RPM Rated Speed: Supports high-speed operations ideal for rapid response applications.
-
Low Inertia Design: Enhances dynamic performance by minimizing the load on the servo drive during rapid starts and stops.
-
Multi-Turn High-Resolution Encoder: Provides accurate and repeatable feedback for precision motion control.
-
24V DC Holding Brake: Built-in brake holds load in place when the motor is not powered—ideal for vertical axis control.
-
Compact 165 mm Frame Size: Offers powerful performance in a space-saving form factor.
-
IEC Metric Mounting Flange: Ensures compatibility with global mounting standards for easy integration.
-

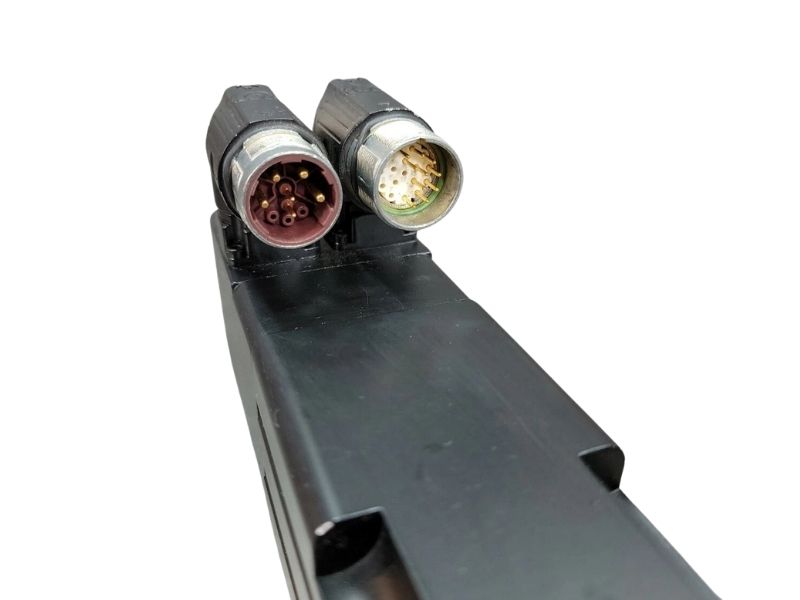

Circular DIN Connectors (Right Angle, 180° Rotatable): Facilitates simplified cable routing and reliable connectivity.
The MPL-B1530U-VJ74AA is ideal for industrial applications requiring fast, accurate motion control in compact environments.
