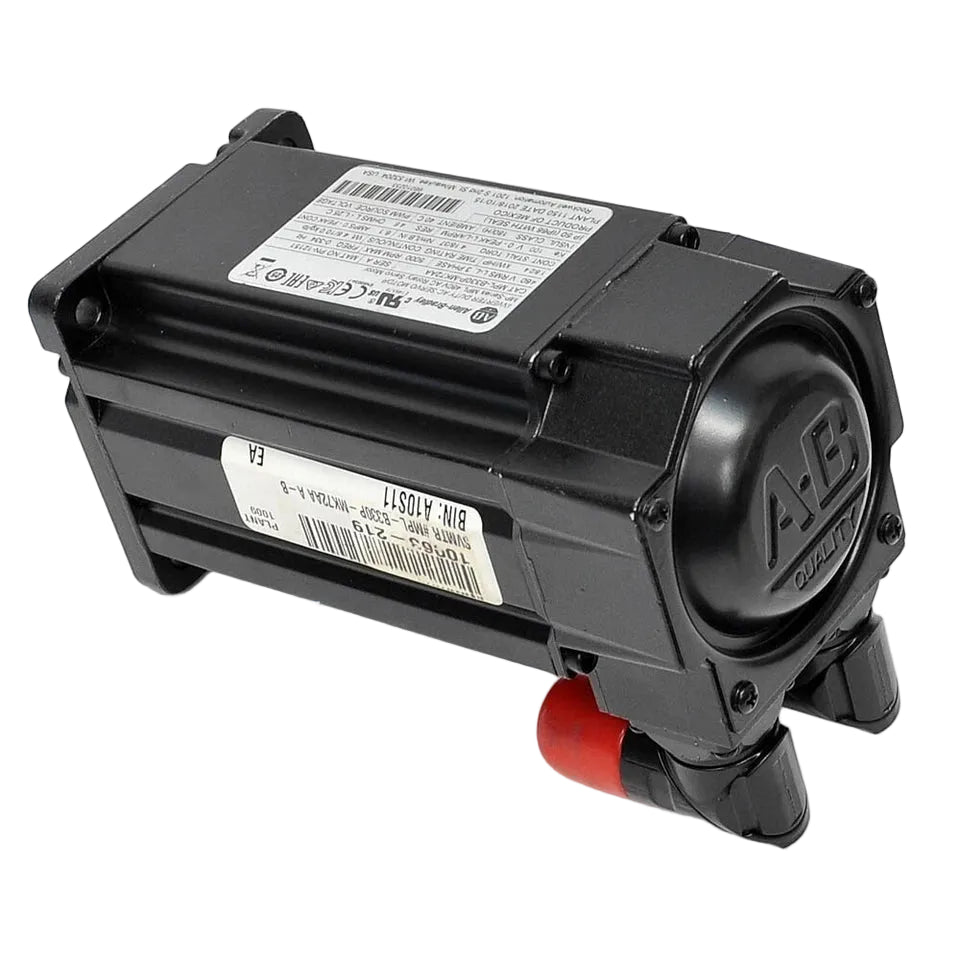

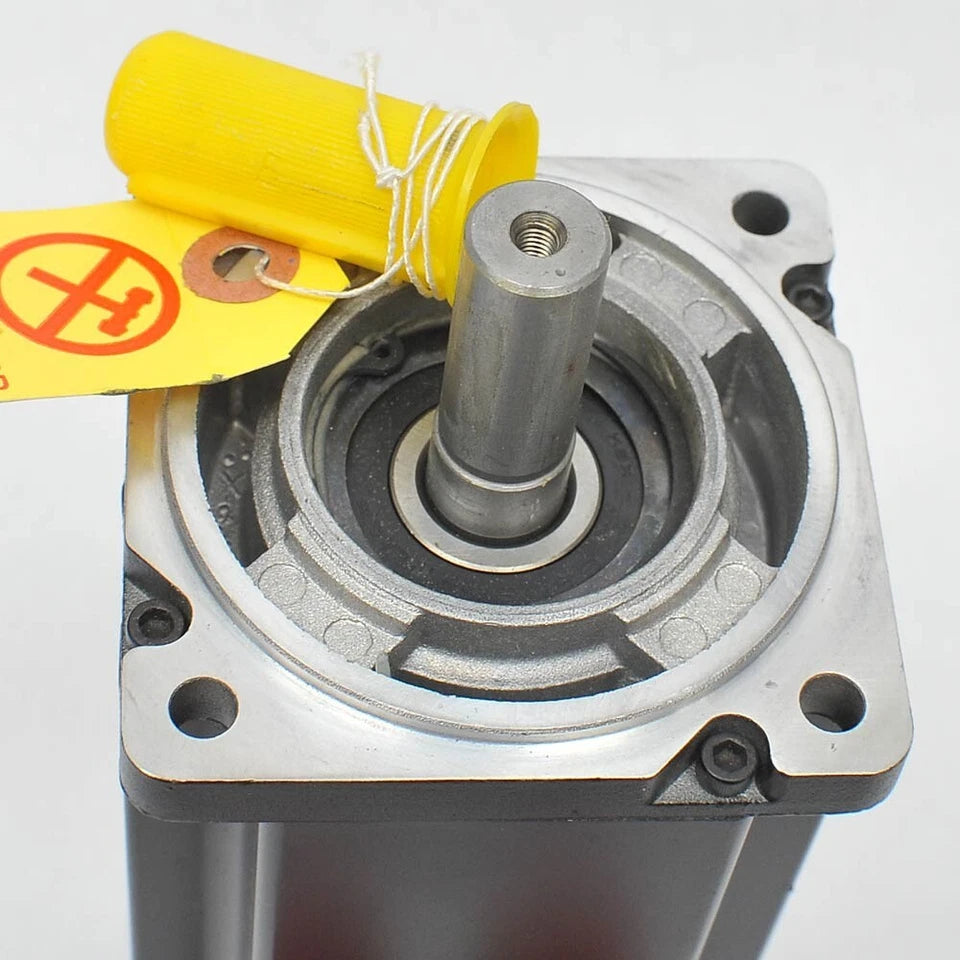

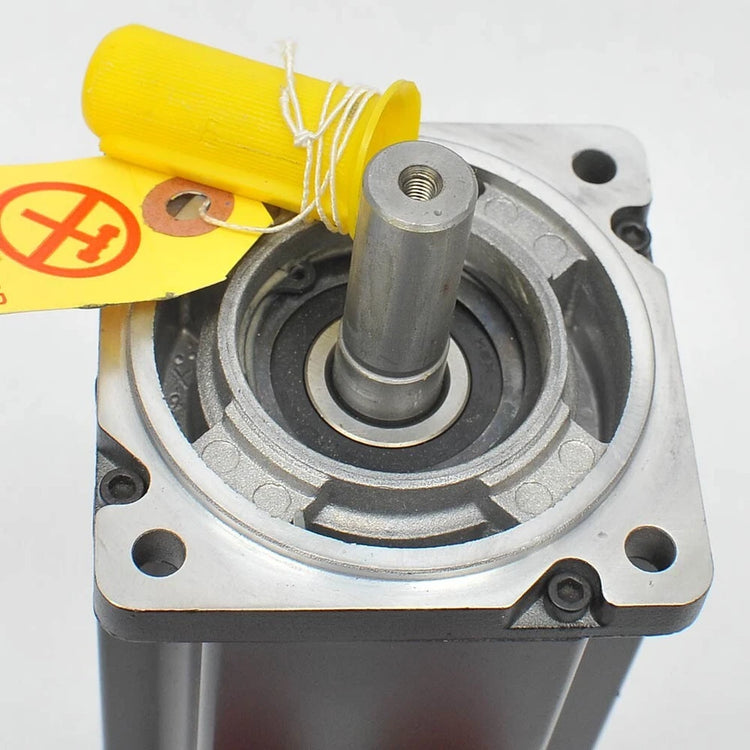

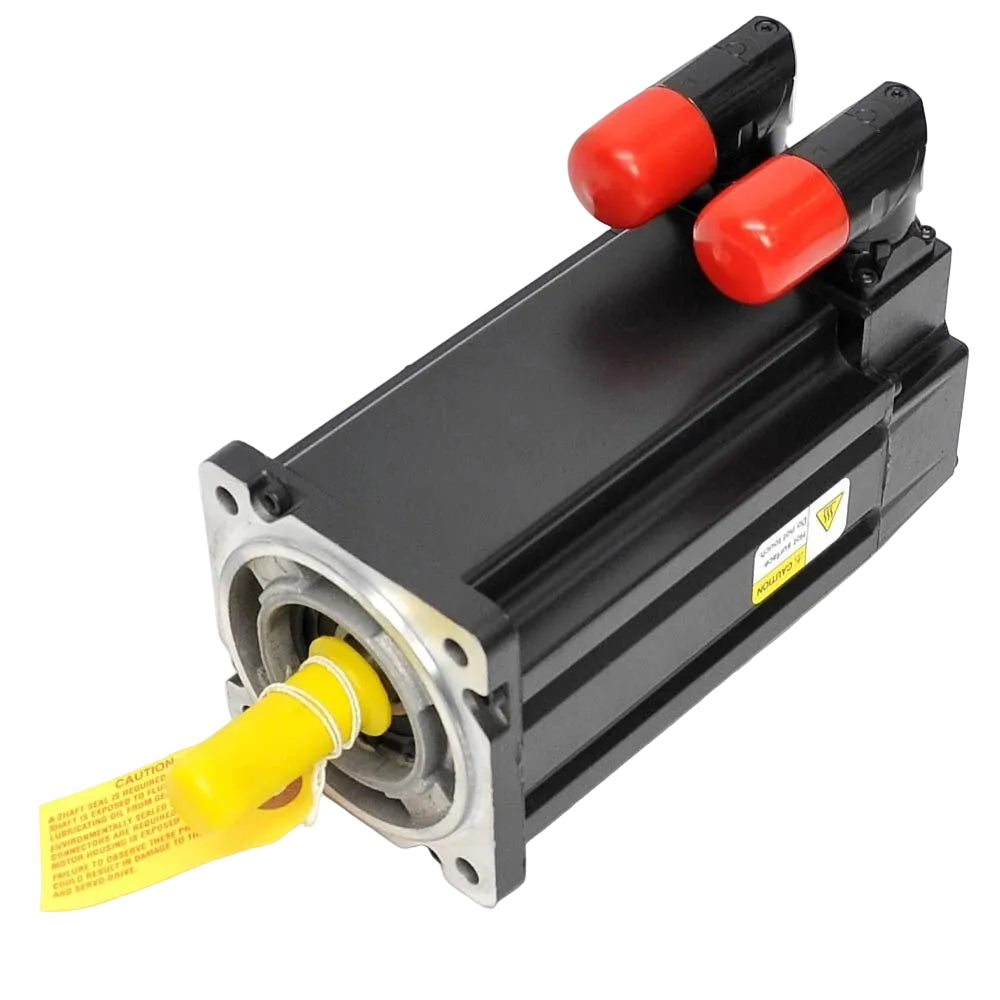

MPL-B330P-MK72AA | Allen-Bradley Rotary Servo Motor
- Regular price
- $1,509.00
- Sale price
- $1,509.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MPL-B330P-MK72AA
Description
The MPL-B330P-MK72AA is a high-performance rotary servo motor from Allen-Bradley’s MP-Series. It features a 115 mm frame, low inertia design, and operates at 460V AC.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Motors |
|
Part Number |
MPL-B330P-MK72AA |
| Subcatecory |
Servo Motors
|
| Series | Premium permanent magnet rotary servo motor |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts |
| Frame Size | 100 milliemeters |
| Magnetic Stack Length | 3 inches |
| Rated Speed | 5000 RPM |
| Feedback | Multi-turn high-resolution encoder |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| Weight | 4.72 kgs |
Information About MPL-B330P-MK72AA
The MPL-B330P-MK72AA is a high-performance, low-inertia servo motor from Allen-Bradley's MP-Series, designed to meet the demanding requirements of modern motion control systems.
Key Features:
- Voltage Class: 460V AC
- Frame Size: 100 mm (3.94 in.)
- Magnet Stack Length: 76.2 mm (3.0 in.)
- Rated Speed: 5000 RPM
- Continuous Stall Torque: 4.18 Nm
- Peak Torque: 11.1 Nm
- Feedback: Multi-turn high-resolution encoder (absolute feedback)
- Shaft Extension: Keyless
- Connectors: SpeedTEC DIN Connector, right angle, 180° rotatable (Quick Connect)
- Brake Option: No brake
- Mounting Flange: IEC metric, free mounting holes (Type FF)
This motor is compatible with various Allen-Bradley Kinetix servo drive families, including Kinetix 5500, 6200, 6500, 6000, 300, 350, 2000, and 7000, as well as the Ultra 3000 series.
