MPL-B580J-SJ72AA | Allen-Bradley Servo Motor 460 V
- Regular price
- $5,492.00
- Sale price
- $5,492.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MPL-B580J-SJ72AA
Description

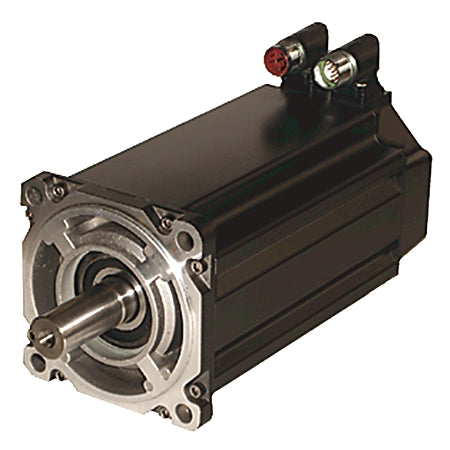

The MPL-B580J-SJ72AA is a brushless low-inertia servo motor from the Allen-Bradley MP-Series, designed for high-performance motion control applications. It operates on 460V AC and is built with a compact yet powerful 165 mm frame.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | Allen-Bradley |
|
Category |
Motors
|
|
Part Number |
MPL-B580J-SJ72AA |
| Subcatecory |
Servo Motors
|
| Series | MPL Servo Motors |
| Type | Low inertia |
| Voltage class | 400 Volts |
| Frame size | 165 millimeters |
| Magnet stack length | 203.2 millimeters (8 inches) |
| Rated speed | 3750 RPM |
| Feedback | Single-turn, 1024 sin/cos, absolute encoder (Hiperface protocol) |
| Enclosure | Shaft key / no shaft seal |
| Connector type | Circular (SpeedTec) DIN, right angle, 180 degrees rotatable |
| Brake | No brake |
Information About MPL-B580J-SJ72AA
The MPL-B580J-SJ72AA is part of the Allen-Bradley MP-Series servo motors, optimized for applications that demand precision, speed, and efficiency. The motor features a magnet stack length of 203.2 mm (8 inches) and a rated speed of 3750 RPM, making it suitable for a wide range of dynamic load conditions.
It integrates a single-turn 1024 sin/cos absolute encoder using the Hiperface protocol, enabling accurate feedback for closed-loop control systems. The motor is equipped with a shaft key and does not include a shaft seal, though one can be added if required. The connector is a SpeedTec DIN type, right-angle oriented, and rotatable up to 180° for flexible installation.
Key Features:
-
Low Inertia Design: Engineered to enable rapid acceleration and deceleration for precise motion control in dynamic applications.
-
High Voltage Class: Operates efficiently at 460V AC, ensuring compatibility with industrial-grade motion systems.
-
Compact Power: Frame size of 165 mm with an 8-inch magnet stack for delivering high torque density in a relatively small form factor.
-
Advanced Feedback System: Single-turn 1024 sin/cos absolute encoder with Hiperface protocol provides precise positioning data.
-
Rotatable Connector: SpeedTec DIN connector, right angle and 180° rotatable, simplifies cable routing and installation in tight spaces.
-
No Brake Design: Built without a factory brake, ideal for systems that utilize external braking mechanisms or do not require one.
This servo motor is purpose-built for OEMs and machine builders seeking powerful, compact, and responsive motion solutions.
