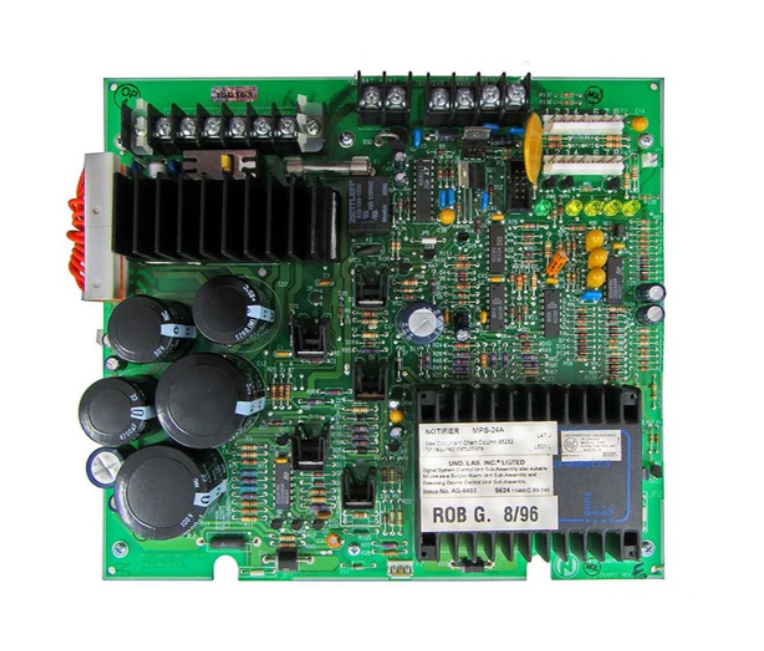

MPS-24A | Honeywell Power Supply Board and Transformer
MPS-24A | Honeywell Power Supply Board and Transformer
MPS-24A | Honeywell Power Supply Board and Transformer
    MPS-24A | Honeywell Power Supply Board and Transformer
MPS-24A | Honeywell Power Supply Board and Transformer

MPS-24A | Honeywell Power Supply Board and Transformer

Part #: MPS-24A Manufactured by: Honeywell
Regular price
$1,830.00
Sale price
$1,830.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The MPS-24A is a 3.0 A 120V AC power supply card with integrated battery charger and fault LEDs, designed for Honeywell AM...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: MPS-24A
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Honeywell
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: MPS-24A

Description / Specifications

Description

The Honeywell MPS-24A is a regulated power supply card designed to support fire alarm control panels such as AM2020, AFP1010, and XP Transponder systems. It provides 3.0 amps of filtered 24 VDC output power and includes a battery charging circuit for standby operation.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Power Supplies
Part Number MPS-24A
Subcategory Power Supply
Input Voltage 120 V AC (50/60 Hz)
Output Voltage Regulated 24 VDC
Output Current 3.0 A filtered (6.0 A max shared with internal)
Battery Charging Capacity
9 AH to 55 AH
Battery Type 24 V float-charge lead acid
LED Indicators AC Fail, Battery, Ground Fault
Mounting Panel mount in CAB-A3/A4, B3/B4, C3/C4, D3/D4
Certification UL, FM, CSFM, MEA, CCC, Lloyd’s, USCG, IRAM
Weight 11.57 lbs





Information About MPS-24A

The MPS-24A functions as the main power source for multiple Honeywell fire control platforms, delivering power to internal system electronics and up to 3.0 A for external notification appliance circuits. It accepts 120 V input (50/60 Hz) and includes regulated 24 VDC output with overcurrent protection. The unit features status LEDs for AC loss, ground fault, and battery conditions. It can charge up to 55 AH batteries, supports dual-rate charging, and integrates with compatible Honeywell enclosures (e.g., CAB-A3/A4, B3/B4). A high-efficiency DC-DC converter is included for internal +5 V operation, and filtered +24 VDC outputs are designed to power horns, strobes, or release solenoids.

Key Features:

  • 3.0 Amp Regulated Output: Provides filtered 24 VDC for internal and external fire system components.
  • Battery Charging Support: Charges batteries from 9 AH to 55 AH with dual-rate and float charging modes.
  • AC Input 120 V (50/60 Hz): Primary power input with optional 220 V version available.
  • LED Status Indicators: LEDs for AC power fail, battery fail, and ground fault status.
  • Circuit Protection: Includes circuit breaker and PTC resettable fuses for short-circuit and overload protection.
  • DC-DC Converter for +5 V: Powers control panel logic modules without additional converters.
  • Panel Mount Integration: Installs in lower-left section of CAB-A/B/C series enclosures.
  • Notification Appliance Compatibility: Supports any listed 24 VDC notification device.
  • True Supervision: Built-in battery and fault supervision for critical safety applications.
  • Agency Approved: UL, FM, CSFM, MEA, CCC, Lloyd’s Register, USCG, and more.

The MPS-24A ensures stable and fault-monitored power delivery to both internal controls and external signaling circuits in fire alarm systems.

IQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The Honeywell MPS-24A is a regulated power supply card designed to support fire alarm control panels such as AM2020, AFP1010, and XP Transponder systems. It provides 3.0 amps of filtered 24 VDC output power and includes a battery charging circuit for standby operation.





Technical Specifications

Condition New/Never Used Surplus
Brand Honeywell
Category
Power Supplies
Part Number MPS-24A
Subcategory Power Supply
Input Voltage 120 V AC (50/60 Hz)
Output Voltage Regulated 24 VDC
Output Current 3.0 A filtered (6.0 A max shared with internal)
Battery Charging Capacity
9 AH to 55 AH
Battery Type 24 V float-charge lead acid
LED Indicators AC Fail, Battery, Ground Fault
Mounting Panel mount in CAB-A3/A4, B3/B4, C3/C4, D3/D4
Certification UL, FM, CSFM, MEA, CCC, Lloyd’s, USCG, IRAM
Weight 11.57 lbs





Information About MPS-24A

The MPS-24A functions as the main power source for multiple Honeywell fire control platforms, delivering power to internal system electronics and up to 3.0 A for external notification appliance circuits. It accepts 120 V input (50/60 Hz) and includes regulated 24 VDC output with overcurrent protection. The unit features status LEDs for AC loss, ground fault, and battery conditions. It can charge up to 55 AH batteries, supports dual-rate charging, and integrates with compatible Honeywell enclosures (e.g., CAB-A3/A4, B3/B4). A high-efficiency DC-DC converter is included for internal +5 V operation, and filtered +24 VDC outputs are designed to power horns, strobes, or release solenoids.

Key Features:

  • 3.0 Amp Regulated Output: Provides filtered 24 VDC for internal and external fire system components.
  • Battery Charging Support: Charges batteries from 9 AH to 55 AH with dual-rate and float charging modes.
  • AC Input 120 V (50/60 Hz): Primary power input with optional 220 V version available.
  • LED Status Indicators: LEDs for AC power fail, battery fail, and ground fault status.
  • Circuit Protection: Includes circuit breaker and PTC resettable fuses for short-circuit and overload protection.
  • DC-DC Converter for +5 V: Powers control panel logic modules without additional converters.
  • Panel Mount Integration: Installs in lower-left section of CAB-A/B/C series enclosures.
  • Notification Appliance Compatibility: Supports any listed 24 VDC notification device.
  • True Supervision: Built-in battery and fault supervision for critical safety applications.
  • Agency Approved: UL, FM, CSFM, MEA, CCC, Lloyd’s Register, USCG, and more.

The MPS-24A ensures stable and fault-monitored power delivery to both internal controls and external signaling circuits in fire alarm systems.
