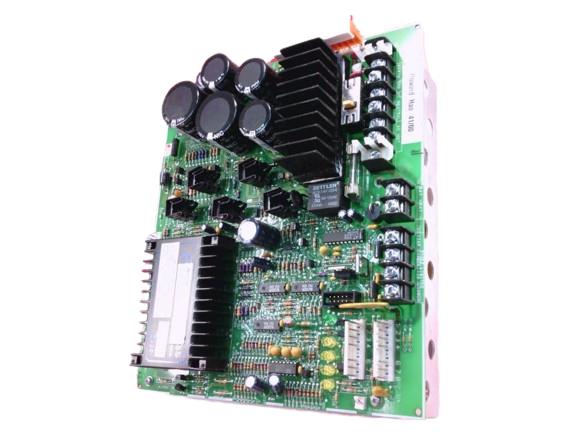

MPS-24AF | Notifier Main Power Supply
- Regular price
- $940.00
- Sale price
- $940.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MPS-24AF
Description
The Fire-Lite MPS-24AF is a regulated power supply unit designed for fire alarm applications, supporting system modules, notification appliances, and four-wire detectors. It features an integrated battery charger and delivers consistent 24 VDC output for reliable system performance.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Notifier |
| Category |
Fire Protection
|
| Part Number |
MPS-24AF
|
| Subcategory | Power Supply Modules |
| Power Output (Regulated) | 24 VDC at 3.0 A (continuous) |
| Maximum Combined Output | 6.0 A at 24 VDC |
| Resettable Output | 1.0 A for four-wire smoke detectors |
| Battery Charger Range | 9.5 AH to 55 AH |
| Application | Fire alarm systems and control modules |
| Primary Power Input | Via TB1 terminal block (ground, neutral, hot) |
| Chassis Grounding | TB1 Terminal 1, via 71073 cable |
| Panel Compatibility | Full-size Sensiscan 2000 and related systems |
| Dimensions (HxWxD) | 14 × 12 × 3 in |
| Weight | 3 lbs |
Information About MPS-24AF
The MPS-24AF provides up to 3 amps of continuous, regulated power output at 24 VDC, making it ideal for powering full-sized Sensiscan 2000 systems or other control panels and modules in fire alarm installations. It supports both system operation and notification appliance power, with up to 1 amp of resettable output available for powering four-wire smoke detectors. The unit includes an integral battery charger capable of maintaining batteries ranging from 9.5 to 55 amp-hours, ensuring uninterrupted performance during extended standby and alarm periods.
Key Features:
- 3.0 Amp Regulated Output: Provides steady 24 VDC power to fire alarm modules and notification appliances.
- Integral Battery Charger: Supports 9.5 AH to 55 AH battery configurations for backup power.
- Resettable Power Output: Offers up to 1 amp of resettable 24 VDC power for four-wire smoke detectors.
- UL-Listed Notification Support: Compatible with a wide range of UL-listed 24 VDC notification appliances.
- Full System Support: Capable of continuously powering full-size control panels like the Sensiscan 2000.
- Screw Terminal Connections: Clearly labeled TB1 terminal block allows straightforward AC power input wiring.
- Chassis Grounding Provision: Includes grounding terminal and cable for safe cabinet mounting.
- Compact and Lightweight: Measures 14" × 12" × 3" and weighs only 3 lbs for convenient integration.
- Field Replaceable Components: Designed for easy service and maintenance access.
- Dual Mode Operation: Maintains system power during both standby and alarm conditions.
The MPS-24AF ensures reliable, uninterrupted power distribution to fire safety systems while simplifying integration and maintenance.
