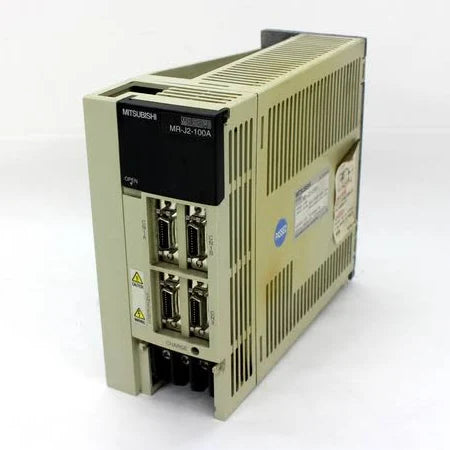

MR-J2-100A | Mitsubishi Servo Amplifier

Description

The Mitsubishi MR-J2-100A is a compact and powerful Servo Amplifier, designed for precise control of servo motors. Measuring 16.8 cm (6.61 in) in height, 7 cm (2.7 in) in width, and 19 cm (7.4 in) in length, it features a space-efficient design ideal for easy integration into automation systems. Despite its small size, it delivers significant power, weighing 1.7 kg (3.7 lbs), making it suitable for a range of industrial applications requiring reliable and high-performance servo control. Part of Mitsubishi's reputable product line, the MR-J2-100A ensures top-quality performance and reliability, making it perfect for applications that demand precise motion control while minimizing space usage. Its lightweight yet sturdy construction makes it a valuable addition to any automation system where precision and compactness are crucial.

Technical Specifications

Information About MR-J2-100A

The Mitsubishi MR-J2-100A is a high-performance servo amplifier engineered for precise control and exceptional performance in various industrial applications. It operates on a 200-230 VAC, 3-phase power supply with a frequency of 50/60 Hz and permissible fluctuations between 170-253 VAC. The compact and robust design measures 16.8 cm in height, 7 cm in width, and 19 cm in length, weighing 1.7 kg.

With a power output of 1 kW, the MR-J2-100A is suitable for demanding servo motor applications. It is part of the MELSERVO-J2 series and features a power supply capacity of 1.7 kVA, consuming 50 W at rated torque and just 15 W when the servo is off, ensuring energy efficiency. It is compatible with auxiliary equipment such as no-fuse breakers, magnetic contactors, setup software, regenerative brake options, cables, and power factor-improving reactors.

The amplifier supports analog torque command input ranging from DC 0 to ±8V and offers a speed frequency response of 250 Hz or more. It allows torque limit input of 0 to ±10VDC or maximum current, except in torque control mode. With a maximum input pulse frequency of 500kpps (differential receiver) or 200kpps (open collector), it ensures precise and responsive control. Rated as an IP00 open unit, the MR-J2-100A is a reliable choice for achieving precise and efficient servo motor control in industrial automation and motion control applications.

Manufacturer information

Mitsubishi Electric Corporation, established in 1921, is a leading global manufacturer of electrical and electronic products. Renowned for innovation, it specializes in automation, energy, and electronic systems, contributing to advancements across various industries worldwide.
