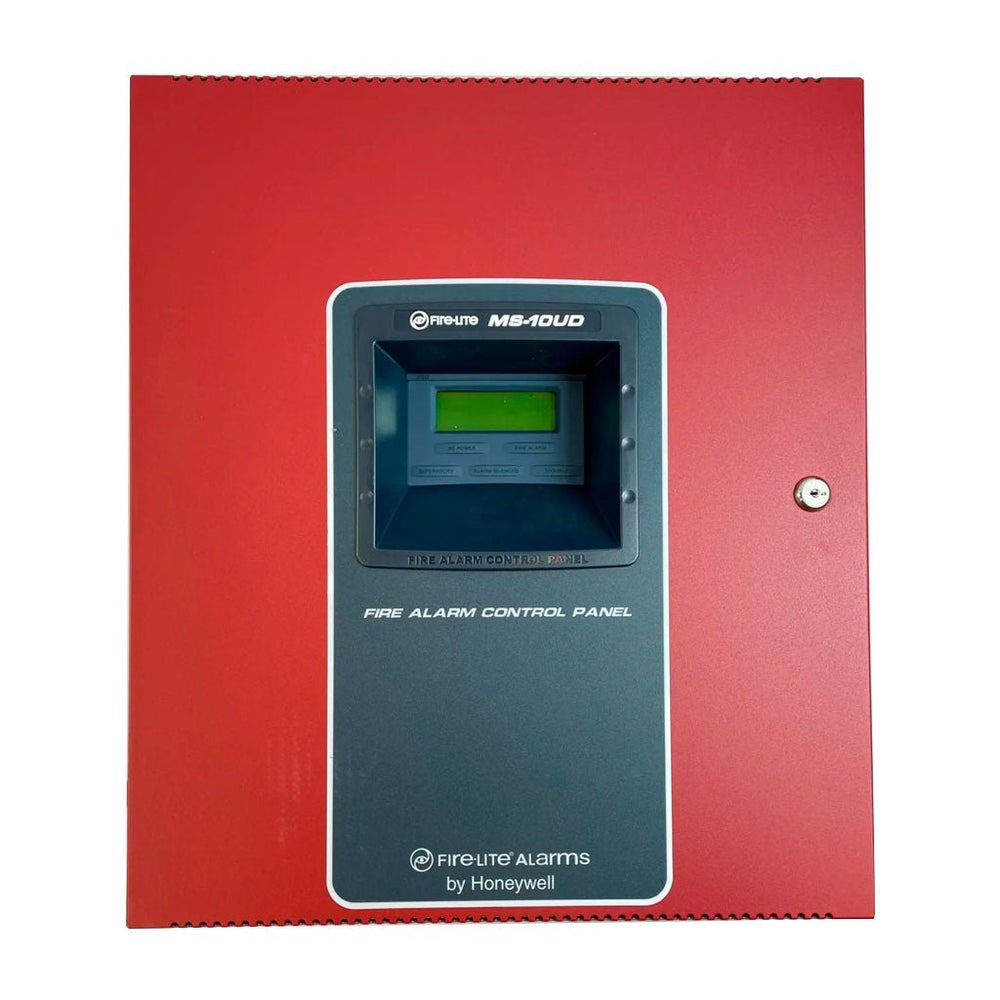

MS-10UD-7 | Fire-Lite 10-Zone Conventional Fire Alarm Control Panel with 7A Power Supply
- Regular price
- $1,704.00
- Sale price
- $1,704.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS-10UD-7
Description
The Fire-Lite MS-10UD-7 is a 10-zone conventional fire alarm control panel equipped with a 7-amp power supply and backbox. Designed for small to medium-sized facilities, it combines easy programmability, NAC synchronization, and integrated digital communication in a compact unit. The panel provides advanced features often found in addressable systems, making it a reliable and cost-effective fire protection solution.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Safety |
| Part Number | MS-10UD-7 |
| Subcategory | Fire Alarm Control |
| Panel Type | Conventional FACP |
| Zones | 10 Class B or 5 Class A (with module) |
| NAC Circuits | 4 × Class B (Style Y) or 4 × Class A (Style Z with modules) |
| NAC Synchronization | Built-in for multiple device brands |
| Relays | 3 × Form-C programmable relays |
| Power Supply | 7.0 A usable current |
| Input Power | 120 VAC, 50/60 Hz, 3.8 A |
| Charging Capacity | Up to 26 AH batteries |
| Charger Output | 27.6 VDC @ 1.4 A, supervised |
| Communicator | Built-in two-line DACT |
| Programming Interface | Integrated 80-character LCD and keypad |
| Annunciator Support | Up to 8 remote devices (LCD, LED, relay, or printer modules) |
| Operating Temp | 32°F to 120°F (0°C to 49°C) |
| Humidity | Up to 93% RH, non-condensing |
| Dimensions | Standard backbox with integrated power supply |
| Weight | 20.50 lbs |
Information About MS-10UD-7
The MS-10UD-7 is part of Fire-Lite’s UD Series, offering a conventional FACP with 10 Class B zones or 5 Class A zones when using optional modules. It includes four NAC circuits that can be configured for Class A or Class B wiring, and built-in synchronization supports major notification appliance brands. A large backlit LCD and keypad allow full programming without an external tool, while its built-in Digital Alarm Communicator Transmitter (DACT) provides remote monitoring. Expansion modules such as relay boards, remote annunciators, and printer interfaces extend its functionality, making the MS-10UD-7 suitable for a wide range of installations.
Key Features:
- 10 Conventional Zones: Supports 10 Class B or 5 Class A zones with optional module.
- Four NAC Circuits: Configurable for Class A or Class B operation, with 7.0 A total usable current.
- Integrated Programming: 80-character LCD with backlit display and keypad for local setup.
- Built-In DACT: Provides two-line digital communication for remote monitoring.
- NAC Synchronization: Compatible with System Sensor, Wheelock, Gentex, Faraday, and Amseco devices.
- Expandable Annunciation: Supports up to 8 remote annunciator devices.
- Programmable Relays: Three Form-C relays for alarm, trouble, and supervisory.
- Battery Backup: Supports batteries up to 26 AH with supervised charging.
The MS-10UD-7 delivers the reliability and flexibility required for conventional fire alarm applications with advanced system features.
