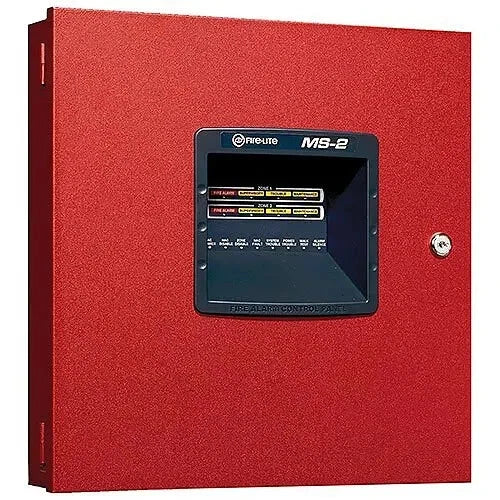

MS-2 | Fire-Lite Two-Zone Conventional Fire Alarm Control Panel 120VAC
MS-2 | Fire-Lite Two-Zone Conventional Fire Alarm Control Panel 120VAC
MS-2 | Fire-Lite Two-Zone Conventional Fire Alarm Control Panel 120VAC
    MS-2 | Fire-Lite Two-Zone Conventional Fire Alarm Control Panel 120VAC
MS-2 | Fire-Lite Two-Zone Conventional Fire Alarm Control Panel 120VAC

MS-2 | Fire-Lite Two-Zone Conventional Fire Alarm Control Panel 120VAC

Part #: MS-2 Manufactured by: Fire-Lite
Regular price
$1,128.00
Sale price
$1,128.00
Regular price
2 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The MS-2 is a two-zone fire alarm control panel from Fire-Lite that combines simplicity with advanced detection compensati...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: MS-2
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Fire-Lite
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: MS-2

Description / Specifications

Description

The Fire-Lite MS-2 is a two-zone conventional fire alarm control panel designed for small facilities requiring reliable fire detection and notification. It operates on 120VAC with a built-in battery charger and supports advanced features like drift compensation, maintenance alerts, and synchronization for NFPA 72-compliant notification appliances.





Technical Specifications

Condition New/Never Used Surplus
Brand Fire-Lite
Category Fire Alarm Systems
Part Number MS-2
Subcategory Conventional Fire Alarm Control Panel
Type Two-zone FACP
Input Power 120 VAC, 50/60 Hz, 2.3 A
Battery Charger 27.6 VDC @ 0.8 A, supports up to 18 AH batteries
Zones Supported 2 Class B zones
LED Indicators Fire, supervisory, trouble, maintenance, AC power, zone disable
Detector Features Automatic drift compensation, automatic sensitivity adjustment
Maintenance Alerts Zone-specific LEDs for contamination buildup
Test Functions Quick test protocol with LED indication, walk test modes
NAC Features Selective silence, synchronization for System Sensor, Wheelock, and Gentex strobes
Protocol Compliance ANSI audible signal sync, ADA strobe sync per NFPA 72
Operating Modes Silence inhibit, auto silence, audible/silent walk test
Cabinet Dimensions Door: 15.342” H × 14.667” W × 0.375” D; Backbox: 15.0” H × 14.5” W × 3.0” D
Application Small commercial, institutional, or residential fire alarm systems
Weight 16.00 lbs




Information About MS-2

The MS-2 is Fire-Lite’s compact conventional fire alarm control panel that supports two initiating device circuits for small applications such as offices, retail spaces, and residential buildings. It includes advanced detection support with drift compensation, automatic sensitivity adjustment, and maintenance alert LEDs, ensuring long-term reliability and compliance with NFPA 72 standards. The panel also supports selectable strobe synchronization protocols and horn silence options for ADA-compliant notification. With built-in test protocols, LED indicators, and flexible operating modes, the MS-2 simplifies installation, maintenance, and operation for end users and service providers alike.

Key Features:

  • Two-Zone Conventional Panel: Supports two Class B initiating device circuits for small-scale fire protection.
  • Automatic Drift Compensation: Adjusts detector sensitivity to reduce false alarms caused by dust accumulation.
  • Maintenance Alerts: Zone-specific LEDs indicate excessive dirt or contamination to prevent nuisance alarms.
  • Advanced Test Functions: Includes walk test, silence inhibit, auto silence, and LED test protocols.
  • NAC Synchronization: Provides synchronization for System Sensor, Wheelock, and Gentex strobes and horns per NFPA 72.
  • Detector Sensitivity Reset: Automatically adjusts sensitivity back to factory settings when contaminants settle.
  • Supervisory Capability: Each zone programmable for supervisory or fire detection with dedicated LEDs.
  • Integrated Battery Charger: Supports up to 18 AH batteries for reliable standby power.
  • LED Status Indicators: Front panel LEDs display fire, trouble, supervisory, disable, AC power, and maintenance.
  • Compact Enclosure: Designed with separate door and backbox for secure and efficient installation.

The MS-2 delivers the reliability and precision required for small conventional fire alarm installations with enhanced detection and notification features.
