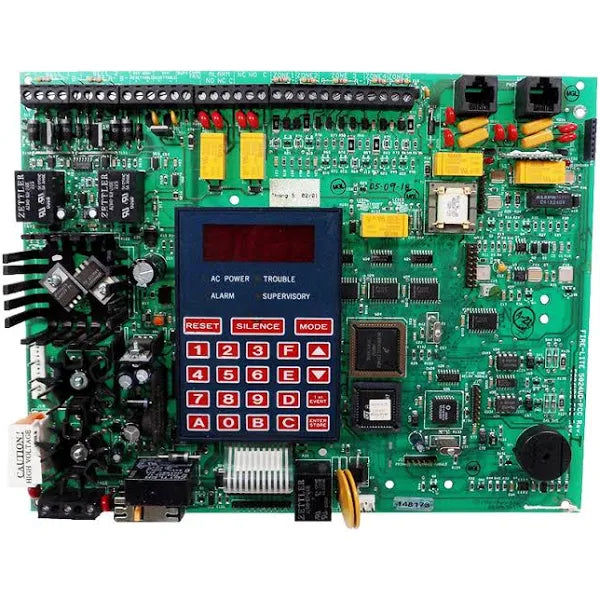

MS-5024 | Fire-Lite | Replacement board
MS-5024 | Fire-Lite | Replacement board
Part #: MS-5024 Manufactured by: Fire-Lite

MS-5024 | Fire-Lite | Replacement board

Regular price
$867.00
Sale price
$867.00
Regular price
Never Used Surplus
1 in Stock
Product Overview
The MS-5024 Replacement board, manufactured by HONEYWELL under the FIRE LITE brand, is a highly integrated component servi...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: MS-5024
IQElectro International provides a 2-year warranty on every product we offer. Our complimentary 2-year warranty ensures that every IQElectro purchase is a trustworthy and reliable investment in the future of your company.
IQElectro is NOT an authorized distributor for Fire-Lite
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
MS-5024 | Fire-Lite | Replacement board
    MS-5024 | Fire-Lite | Replacement board
MS-5024 | Fire-Lite | Replacement board
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3-Day Free Shipping
"IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: MS-5024

Description / Specifications

Description

The MS-5024 Replacement board serves as a combination control panel and digital communicator integrated onto a single circuit board. This five-zone panel accommodates conventional input devices, including waterflow devices, two-wire and four-wire smoke detectors, pull stations, and other normally open contact devices.


Technical Specifications



Specifications

Part #

MS-5024

Manufacturer

HONEYWELL

Brand

FIRE LITE

Category

Fire Safety

Subcategory

Fire Alarm

Maximum Charging Circuit

Normal Flat Charge - 27.6V @ 0.8 amp

Maximum Charger Capacity

17 Amp Hour battery (MS-5024 cabinet holds maximum 7 Amp Hour battery. Larger batteries require Fire•Lite BB-17F or other UL listed battery cabinet).

Supervised Circuits

Low and no battery Power-limited circuitry

Operation

All zones (NFPA Style B), Zone 3 (NFPA Style B or D). Use CAC-5F for Style D operation

Normal Operating Voltage

24 VDC (ripple = 100mV maximum)

Alarm Current

26 mA

Short Circuit Current

42 mA maximum

Maximum Loop Resistance

100 ohms

End-of-Line Resistor

4.7K, ½ watt (P/N 27072 UL listed)

Detector Loop Current

Sufficient to ensure operation of one alarmed detector/zone

Standby Current

7.26 mA (includes ELR and 2 mA maximum detector current)



 Information About MS-5024

The  MS-5024 Replacement board functions as a combined control panel and digital communicator consolidated onto a single circuit board. Operating as a five-zone panel, it is compatible with conventional input devices, such as waterflow devices, two-wire and four-wire smoke detectors, pull stations, and other normally open contact devices. Output features comprise two NACs (Notification Appliance Circuits) and two programmable relays.



Manufacturer information

Fire-Lite is a leading manufacturer of fire alarm and life safety systems. Known for innovative solutions, they provide reliable and advanced fire detection, notification, and emergency communication products for commercial and industrial applications.



Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The MS-5024 Replacement board serves as a combination control panel and digital communicator integrated onto a single circuit board. This five-zone panel accommodates conventional input devices, including waterflow devices, two-wire and four-wire smoke detectors, pull stations, and other normally open contact devices.


Technical Specifications



Specifications

Part #

MS-5024

Manufacturer

HONEYWELL

Brand

FIRE LITE

Category

Fire Safety

Subcategory

Fire Alarm

Maximum Charging Circuit

Normal Flat Charge - 27.6V @ 0.8 amp

Maximum Charger Capacity

17 Amp Hour battery (MS-5024 cabinet holds maximum 7 Amp Hour battery. Larger batteries require Fire•Lite BB-17F or other UL listed battery cabinet).

Supervised Circuits

Low and no battery Power-limited circuitry

Operation

All zones (NFPA Style B), Zone 3 (NFPA Style B or D). Use CAC-5F for Style D operation

Normal Operating Voltage

24 VDC (ripple = 100mV maximum)

Alarm Current

26 mA

Short Circuit Current

42 mA maximum

Maximum Loop Resistance

100 ohms

End-of-Line Resistor

4.7K, ½ watt (P/N 27072 UL listed)

Detector Loop Current

Sufficient to ensure operation of one alarmed detector/zone

Standby Current

7.26 mA (includes ELR and 2 mA maximum detector current)



 Information About MS-5024

The  MS-5024 Replacement board functions as a combined control panel and digital communicator consolidated onto a single circuit board. Operating as a five-zone panel, it is compatible with conventional input devices, such as waterflow devices, two-wire and four-wire smoke detectors, pull stations, and other normally open contact devices. Output features comprise two NACs (Notification Appliance Circuits) and two programmable relays.



Manufacturer information

Fire-Lite is a leading manufacturer of fire alarm and life safety systems. Known for innovative solutions, they provide reliable and advanced fire detection, notification, and emergency communication products for commercial and industrial applications.
