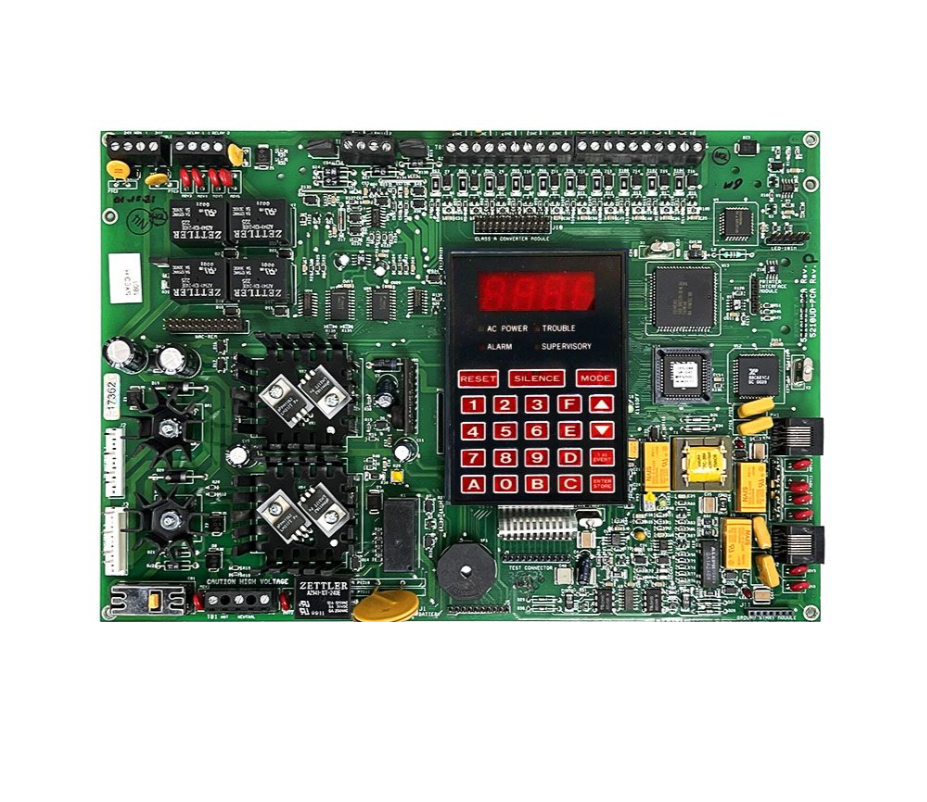

MS-5210UD | Honeywell Notifier SFP-1024 Replacement Board
- Regular price
- $1,189.00
- Sale price
- $1,189.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS-5210UD
Description
The Honeywell MS-5210UD is a 24-volt, 10-zone fire alarm control panel replacement board, originally designed to match the capabilities of the Notifier SFP-1024. It features a built-in communicator, programmable zones, remote upload/download functionality, and support for both local and central station reporting.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
PLCs/Machine Control
|
| Part Number | MS-5210UD |
| Subcategory | VDC Logic I/O Brain/Interface |
| Input Power | 120 VAC / 2.3 A (or 230 VAC / 1.2 A “E” model) |
| System Voltage | 24 VDC |
| Zone Capacity | 10 Class B (convertible to Class A) |
| NAC Circuits |
2 Class B (expandable to 4 with NAC-REM) |
| NAC Power | 3.0 A (expandable to 6.0 A with XRM-24 transformer) |
| Relay Outputs | 2 Form-A (expandable to 4 with Form-C relays) |
| Communication | Built-in DACT (dual-line rotary or touch-tone) |
| Remote Programming | Via PK-5210UD modem software kit |
| Battery Charger | Supports up to 60-hour standby (12–18 AH batteries) |
| Event History Log | 256 events with time/date stamp |
| Compatible Modules | CAC-10F, NAC-REM, LED-10, AFM-16AF, ACM-8RF |
| Certifications | UL, MEA, CSFM, FCC, Industry Canada |
| Weight | 16.00 lbs |
Information About MS-5210UD
The MS-5210UD replacement board includes ten programmable Class B initiating device circuits, which can be configured for two-wire or four-wire smoke detectors, waterflow devices, supervisory monitoring, and more. It also offers two built-in NACs (expandable to four), with 3.0 A of notification power, and can support ADA/UL-1971 compliant signaling. The panel includes two Form-A relays (expandable to four), and a built-in DACT (Digital Alarm Communicator Transmitter) with support for multiple reporting formats including Ademco Contact ID. It is compatible with Fire•Lite’s upload/download software for remote diagnostics and programming.
Key Features:
- 10 Programmable Zones: Supports smoke detectors, pull stations, supervisory inputs, and process monitoring.
- 2 Built-In NAC Circuits: Class B Style Y outputs at 3.0 A total, expandable to four circuits using NAC-REM module.
- Built-In Communicator: Dual-line DACT supports multiple central station formats including Ademco Contact ID.
- Remote Programming: Upload/download capability via modem and PK-5210UD software kit.
- Relay Expansion: Two onboard Form-A relays; expandable to four relays with Form-C output via option module.
- Power Supply: 24 V operation with built-in voltmeter, charger for batteries up to 60-hour standby.
- Walk Test & History Log: Single-person walk test mode and 256-event history buffer with time/date stamps.
- Class A Conversion: Optional CAC-10F module converts all IDCs and NACs to Style D and Z (Class A).
- Compatibility: Supports remote annunciators, relay modules, and serial printer interface via EIA-485.
- Certifications: UL listed, NFPA 72 compliant, FCC, CSFM, MEA, and ULC (Canada variant).
The MS-5210UD offers complete control panel replacement functionality, suitable for retrofit or repair of older SFP-1024-based systems with updated digital communication and supervisory options.
