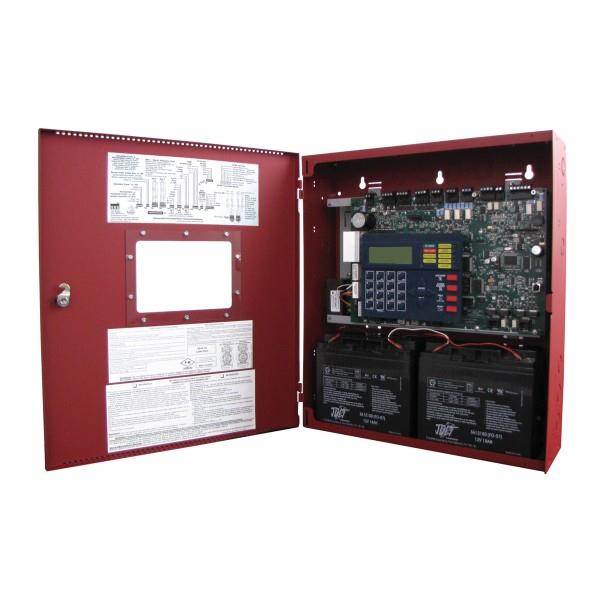

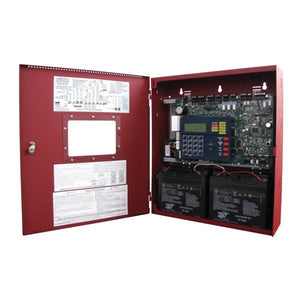

MS-9050UD | Honeywell Fire Alarm Control Panel with DACT, 120VAC, Red
- Regular price
- $1,562.00
- Sale price
- $1,562.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: MS-9050UD
Description
The Fire-Lite MS-9050UD is a compact, intelligent fire alarm control panel with an integrated digital alarm communicator/transmitter (DACT). It supports addressable devices, built-in notification circuits, and advanced diagnostic and programming features for fire protection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Honeywell |
| Category |
Fire Safety
|
| Part Number | MS-9050UD |
| Subcategory | Fire Alarm Control |
| Power Input | 120 VAC, 60 Hz, 3.0 A |
| Battery Charger | 27.4 VDC @ 4.3 A peak, 2.8 A continuous; up to 18 Ah internal |
| Battery Type | Lead-acid, sealed; 7–18 Ah (internal), up to 120 Ah (external) |
| SLC Loop | One loop, 24 VDC nominal, 50 device capacity |
| NACs | Two circuits, 2.5 A total, Style Y (Class B) or Style Z (Class A) |
| Aux Power Output | 1.0 A max for door holders or auxiliary devices |
| Display | 80-character backlit LCD |
| Relays | 2 programmable, 1 fixed trouble relay (Form C, 2 A @ 30 VDC) |
| Communication | Built-in DACT, PS-Tools remote upload/download via EIA-232 |
| Events Log | Stores up to 500 events |
| Zones | 20 software zones |
| Control Features | Walktest (audible/silent), alarm verification, autosilence, PAS |
| Approvals | UL, NFPA 72 compliant |
| Operating Voltage | 24 VDC system, supervised |
| Dimensions | Standard Fire-Lite enclosure |
| Weight | 25 lbs |
Information About MS-9050UD
The MS-9050UD is a combination FACP and DACT built onto a single circuit board, ideal for small to mid-sized commercial fire alarm systems. It features one addressable SLC loop supporting up to 50 devices, two NAC outputs, and a backlit 80-character LCD. This model supports real-time communication with a central station and remote programming via PS-Tools software. With built-in power supply and support for advanced features such as drift compensation, alarm verification, and walktests, the MS-9050UD provides cost-effective code-compliant fire system control.
Key Features:
- Integrated DACT: Transmits alarms, troubles, and status to a central station via phone line.
- Single Addressable SLC Loop: Supports up to 50 addressable devices with Style 4, 6, or 7 configuration.
- Dual Notification Appliance Circuits (NACs): Configurable as Class B or Class A circuits with 2.5 A total output.
- Advanced Fire Features: Includes automatic drift compensation, detector sensitivity testing, and maintenance alerts.
- Built-in Programmer & LCD Display: 80-character backlit display with keypad for local configuration and status.
- Remote Configuration: Upload/download system settings and logs via PS-Tools and EIA-232 interface.
- Programmable Relays: Two user-defined relays and one fixed trouble relay for integration flexibility.
- UL Listed with Global Versions: Also available in ULC and 240V variants (MS-9050UDC / MS-9050UDE).
The MS-9050UD delivers robust addressable fire detection and communication functionality for small-scale commercial installations.
